Comfort Rack for upright freezers

The Comfort sliding Rack for upright freezers is an exclusive racking system. These laboratory freezer racks insure a more ergonomic operating process when working with your samples.

Sliding rack with drawers and front opening

In the Comfort Rack the cryoboxes are placed in drawers, as a sliding rack for upright freezers. Compared to other types of racks, the Comfort Rack has the advantage that it has front opening, which means the user doesn’t have to pull the rack out of the freezer. The samples can easily be accessed by sliding out the shelf. This ergonomic and flexible process reduces the operating time with the freezer, which means the freezer will stay less open and will lose less cold air, which will result in a reduction of the power consumption of your freezer.

Compatible with multiple cryoboxes and freezer models

Select from 7 different box heights; 32 mm, 40 mm, 50 mm, 75 mm, 85 mm, 100 mm and 130 mm.

Our Comfort Rack is a horizontal drawer sliding rack for upright freezers and are compatible with all freezer models. The racks are made of stainless steel.
The racks are made of stainless steel. The racks below are sold without cryoboxes. In addition they are offered including standard white cardboard boxes with 9×9 or 10×10 cell dividers.

Read more about our Usability explanation and product comparison.

Box Footprint Max. 136×136 mm
Racks for 5 boxes deep Max. 134×134 mm
Material Stainless Steel
Type Front Opening
Sliding Shelves
Features Stop Alert
Easy Grip Handle

loader-icon
Article no. Box height HxDxW mm No. of boxes
TE24120 32 mm 181x424x140 5x3 = 15
TE24122 32 mm 217x424x140 6x3 = 18
TE24124 32 mm 253x424x140 7x3 = 21

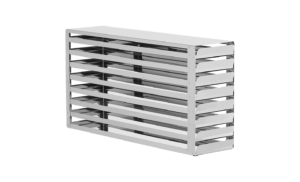

TE24126 32 mm 289x424x140 8x3 = 24
TE24130 32 mm 181x562x140 5x4 = 20
TE24132 32 mm 217x562x140 6x4 = 24
TE24134 32 mm 253x562x140 7x4 = 28

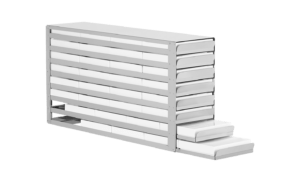

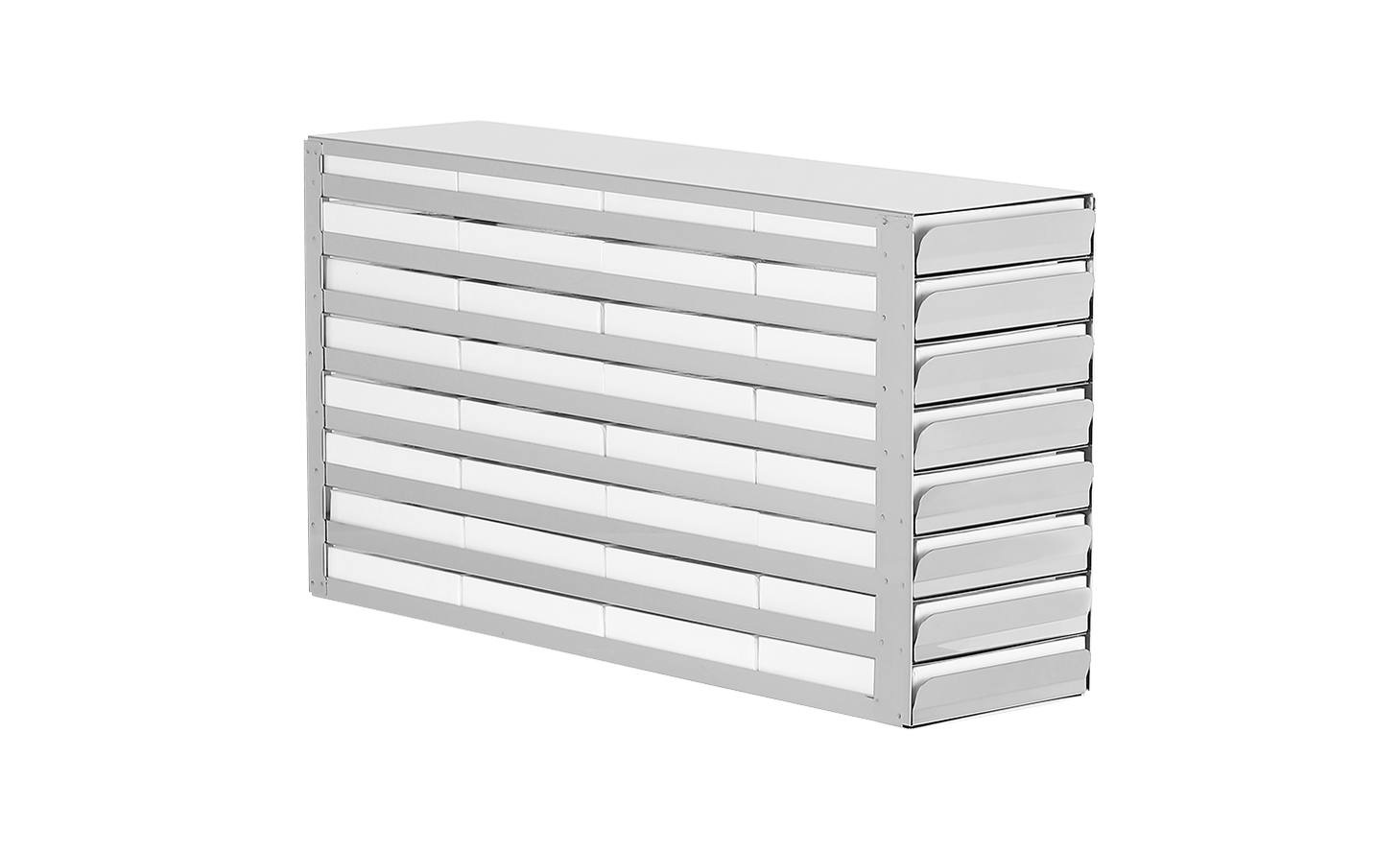

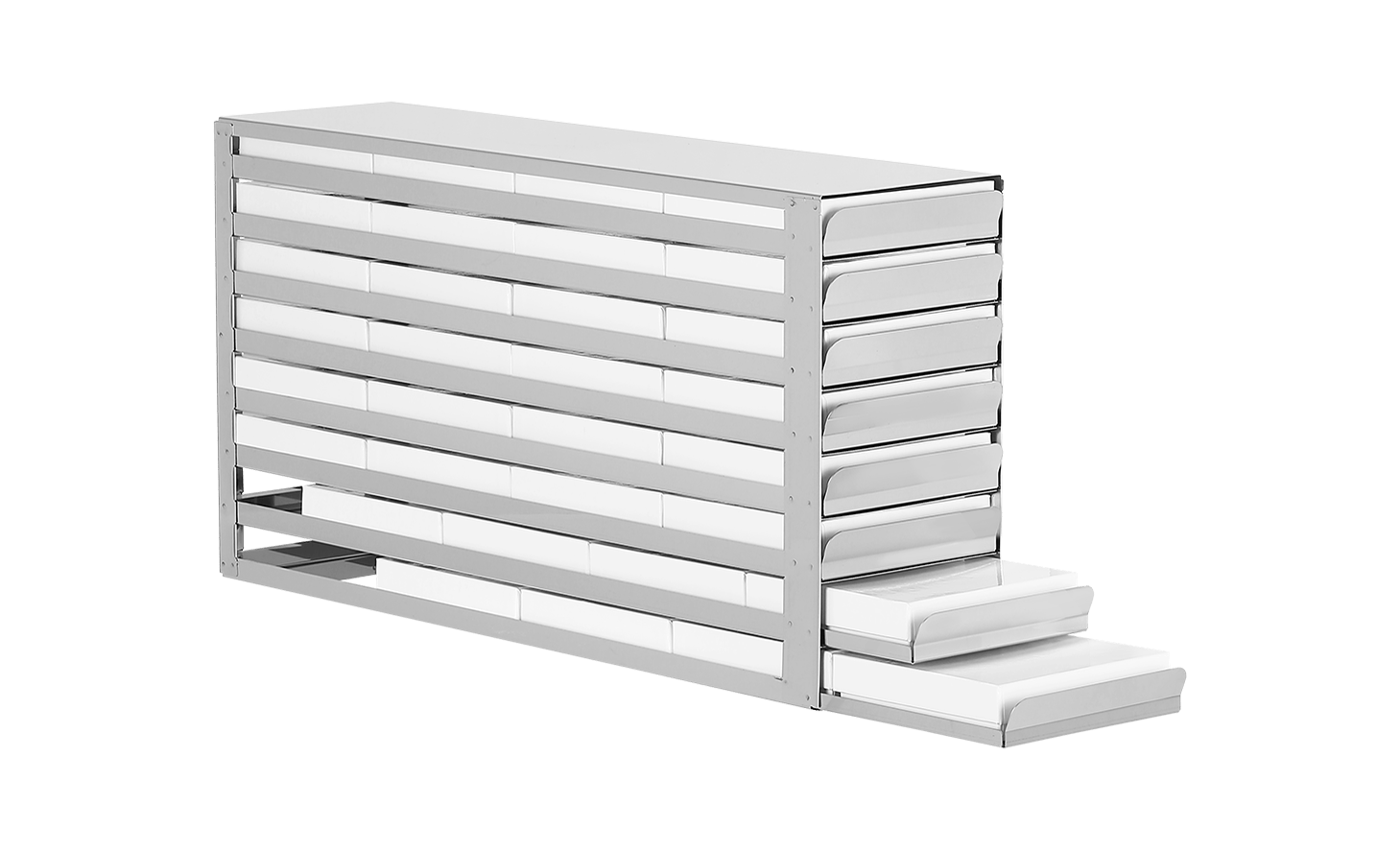

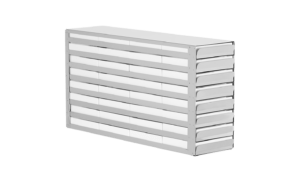

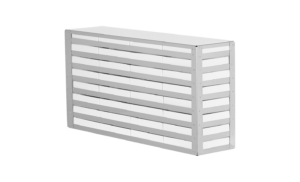

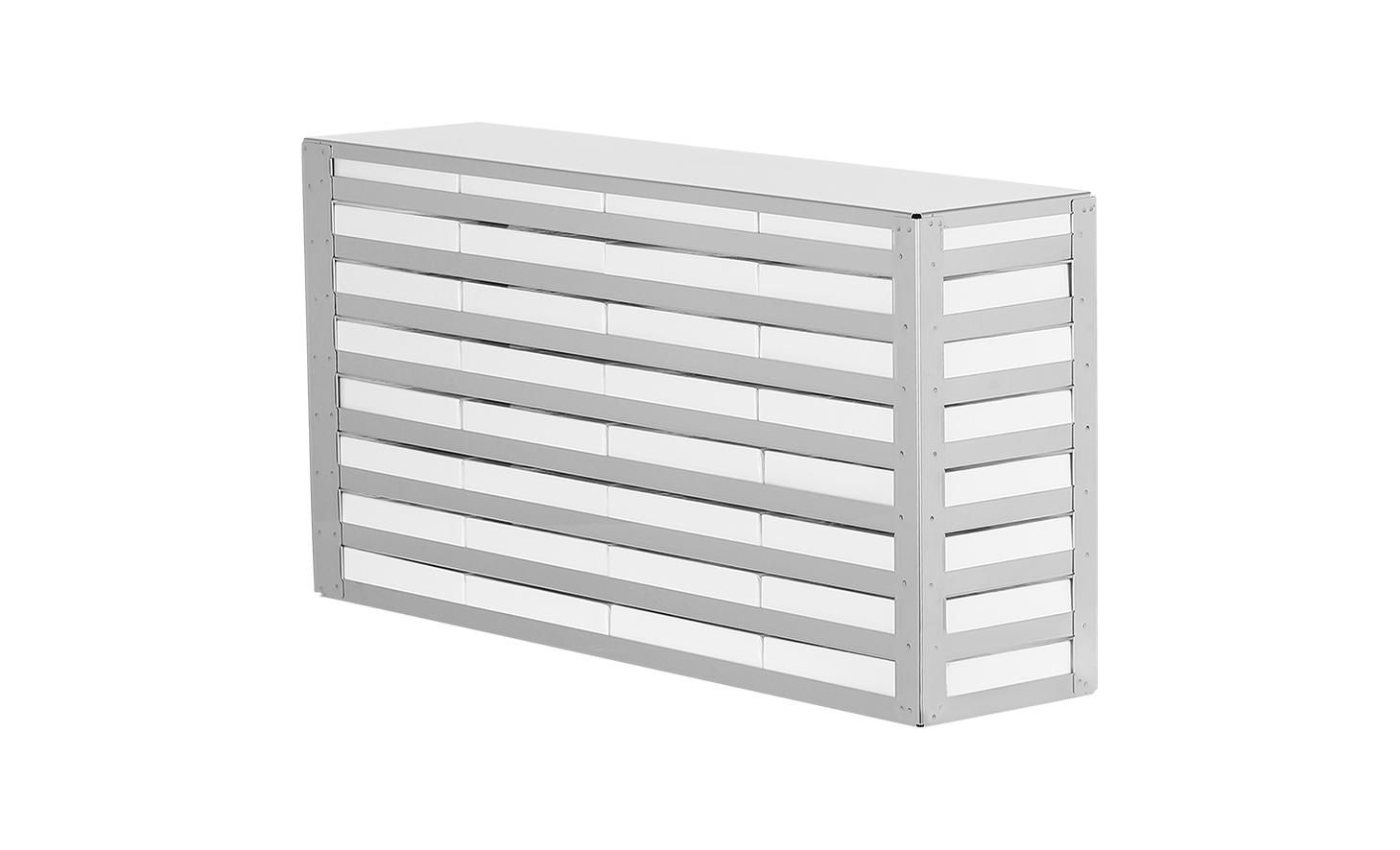

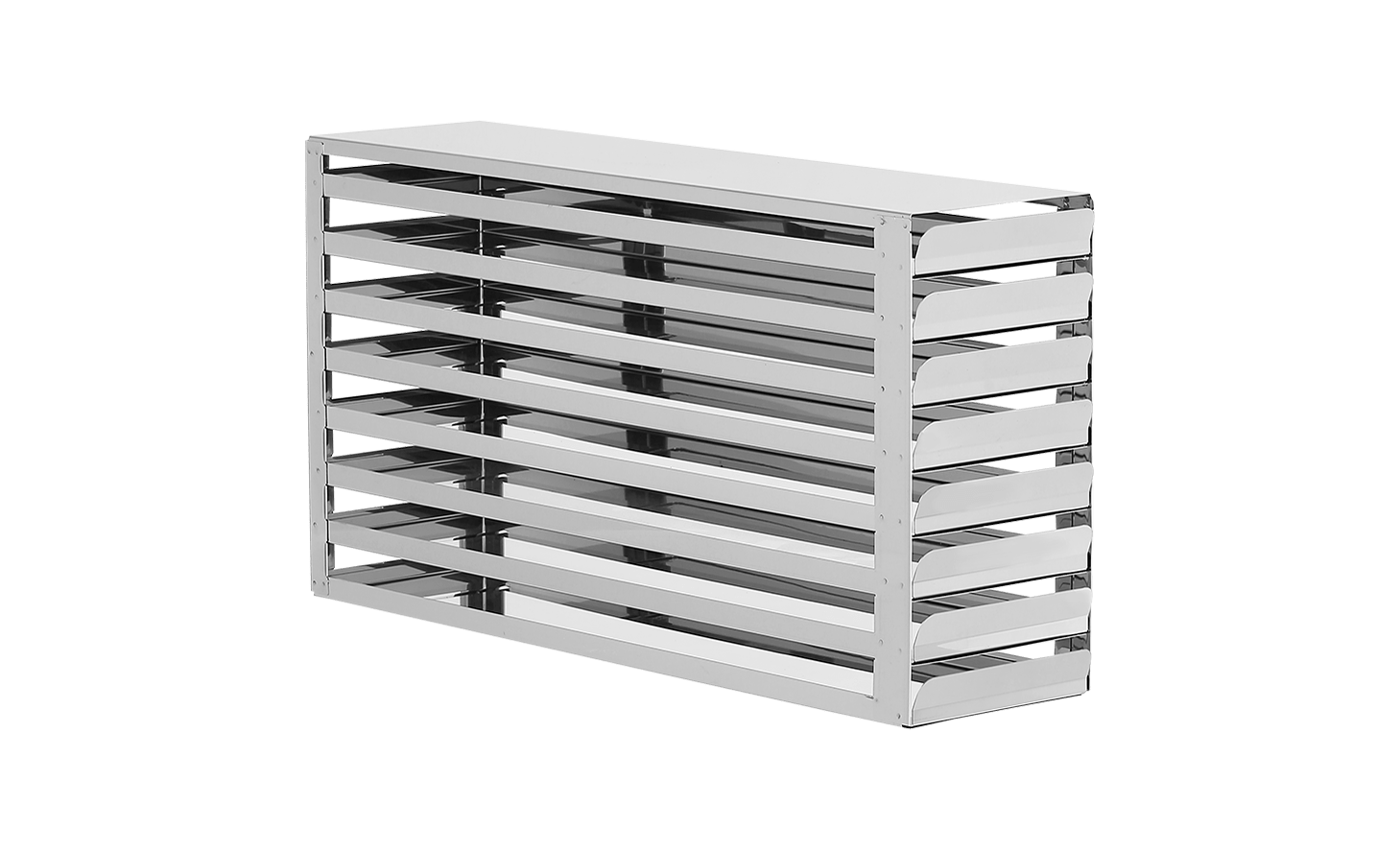

TE24136 32 mm 289x562x140 8x4 = 32
TE24138 32 mm 325x562x140 9x4 = 36
TE24140 32 mm 361x562x140 10x4 = 40
TE24150 32 mm 181x683x140 5x5 = 25
TE24152 32 mm 217x683x140 6x5 = 30
TE24154 32 mm 253x683x140 7x5 = 35
TE24156 32 mm 289x683x140 8x5 = 40
Article no. Box height HxDxW mm No. of boxes
TE24010 40 mm 171x424x140 4x3 = 12
TE24012 40 mm 214x424x140 5x3 = 15
TE24014 40 mm 256x424x140  6x3 = 18
TE24016 40 mm 299x424x140  7x3 = 21
TE24018 40 mm 341x424x140  8x3 = 24
TE24020 40 mm 384x424x140  9x3 = 27
TE24022 40 mm 171x562x140 4x4 = 16

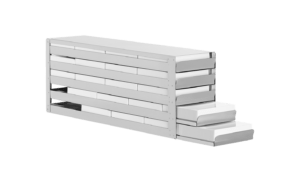

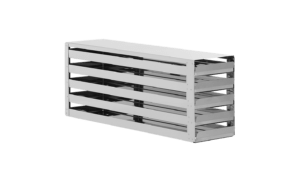

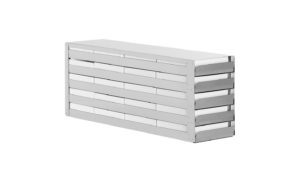

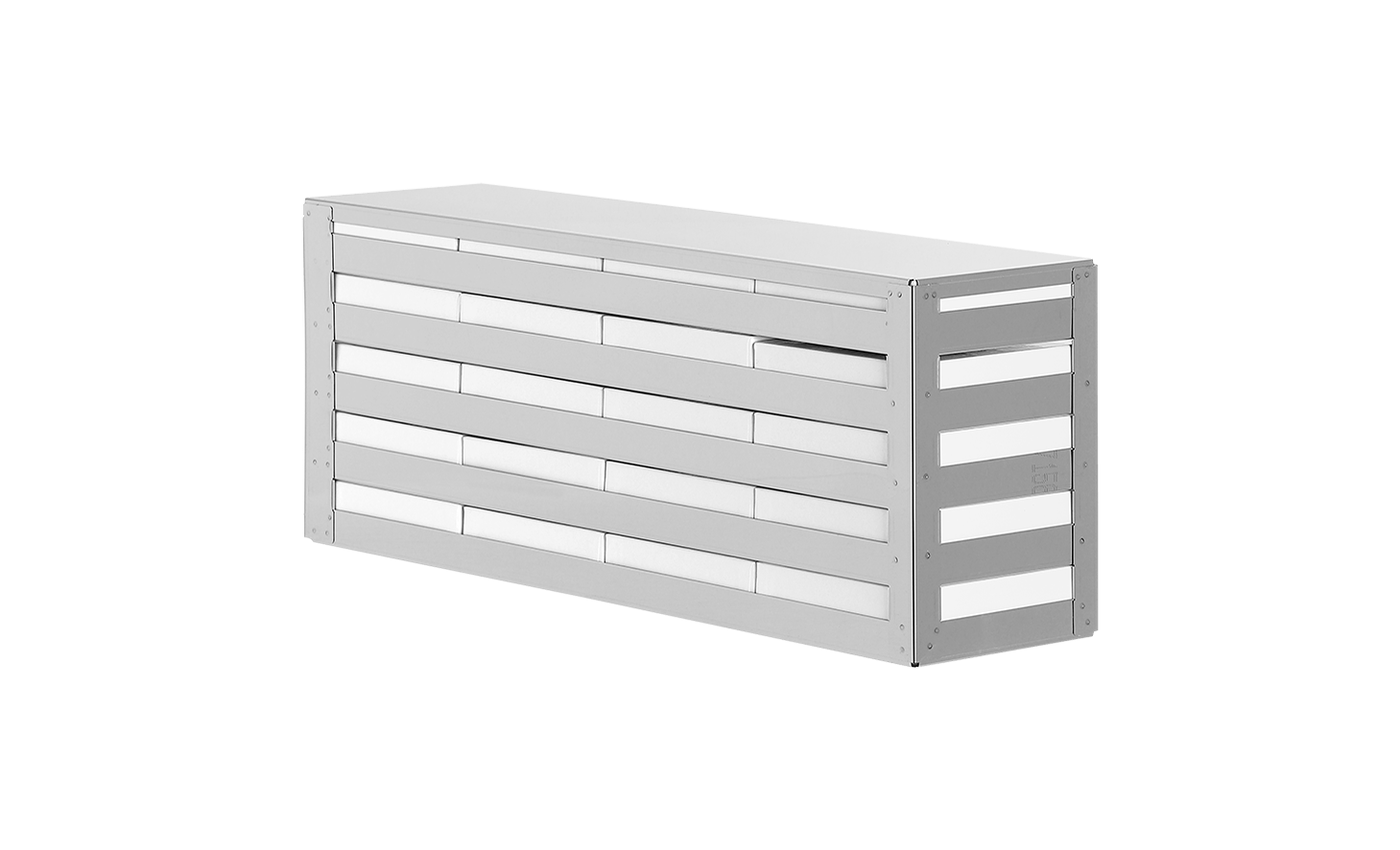

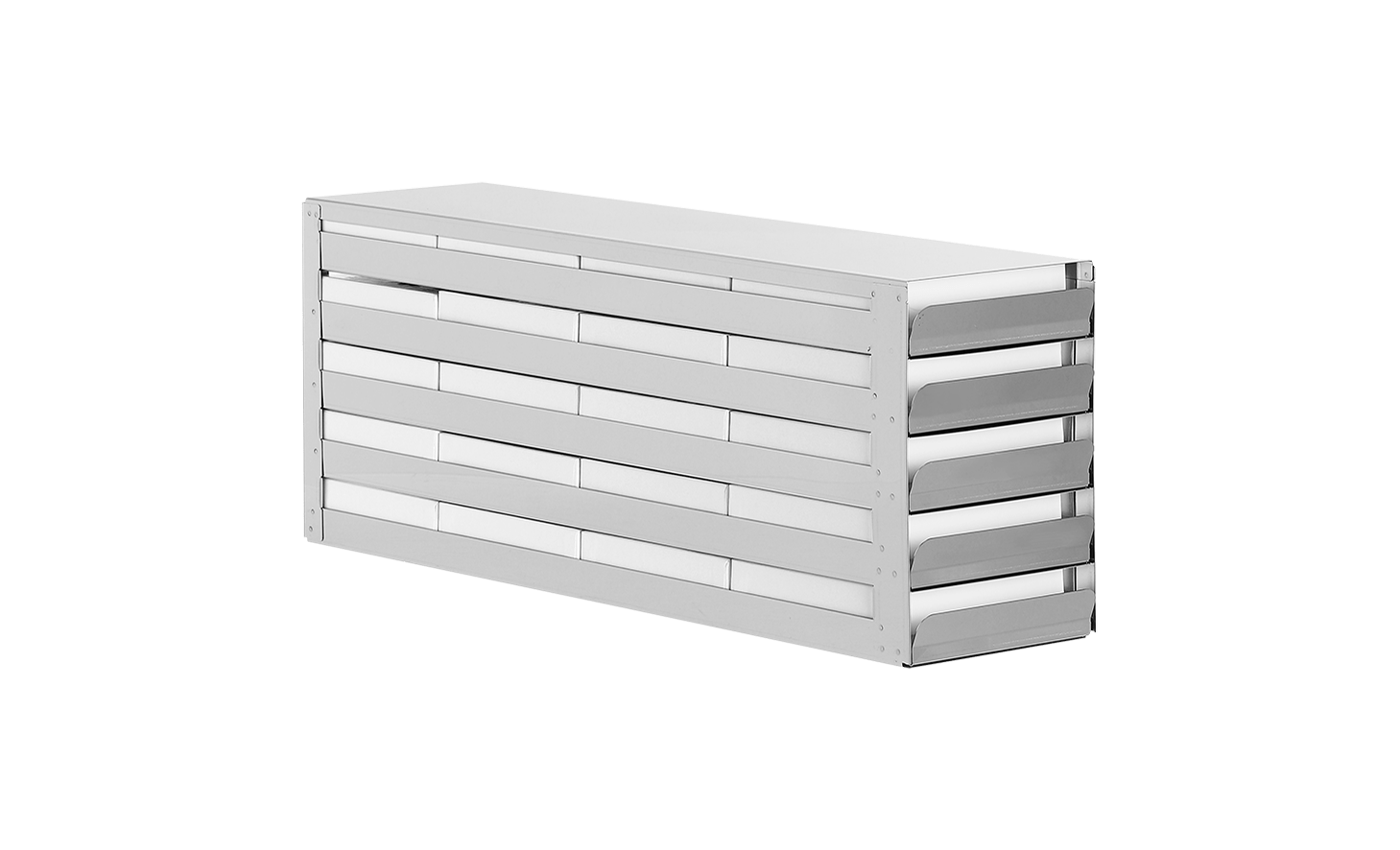

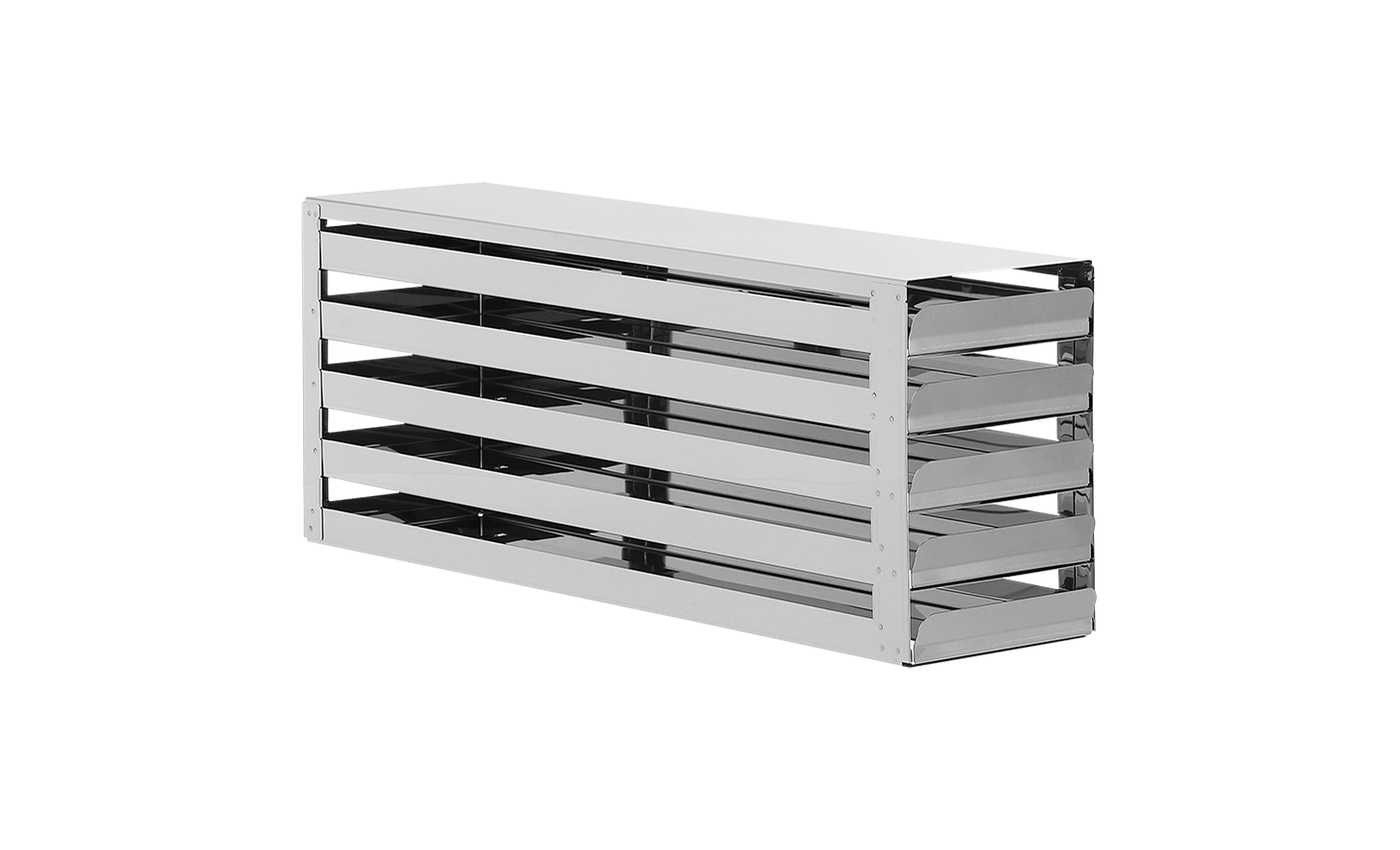

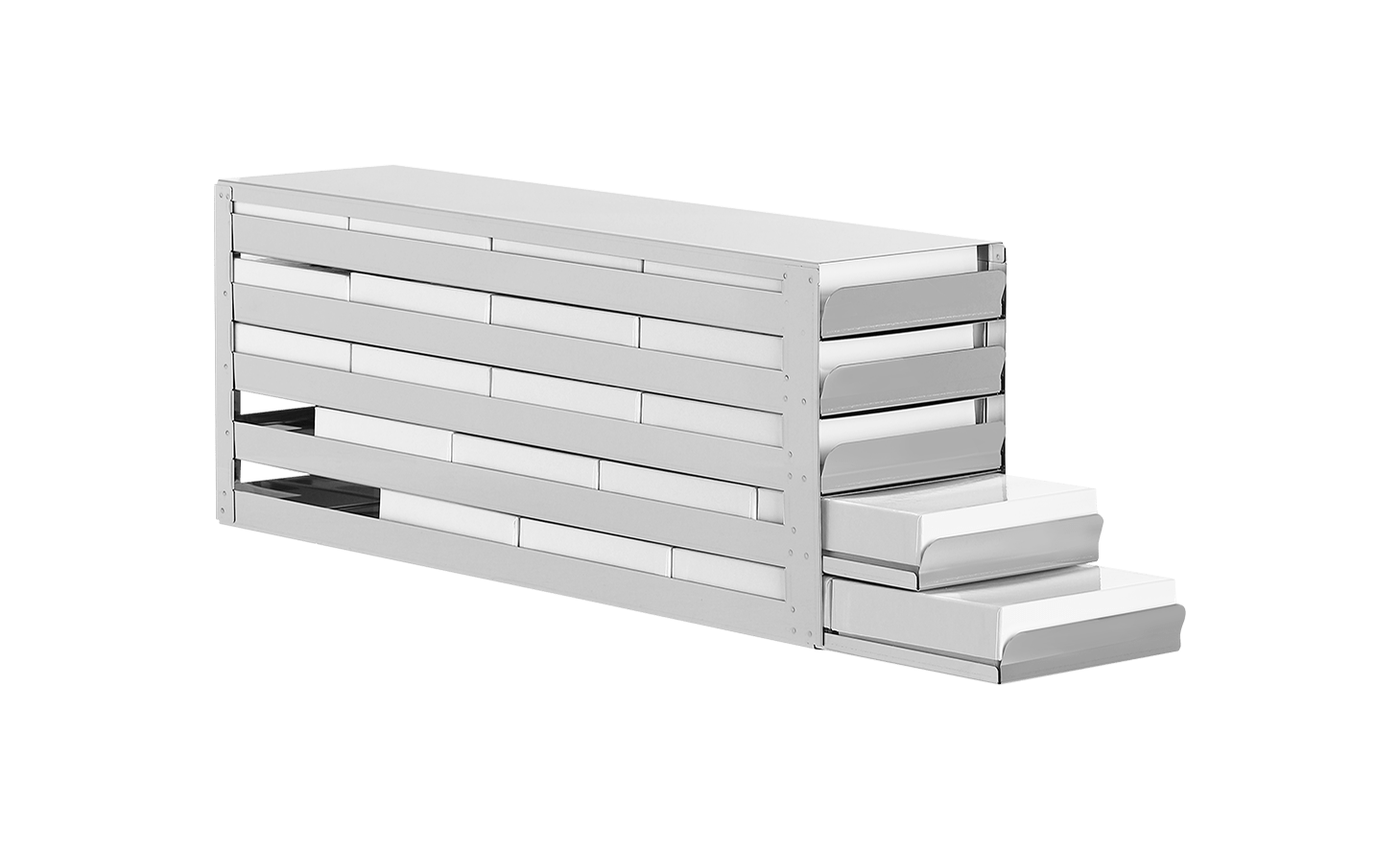

TE24024 40 mm 214x562x140 5x4 = 20
TE24026 40 mm 256x562x140 6x4 = 24
TE24028 40 mm 299x562x140 7x4 = 28
TE24030 40 mm 341x562x140  8x4 = 32
TE24032 40 mm 384x562x140  9x4 = 36
TE24034 40 mm 171x683x140 4x5 = 20
TE24036 40 mm 214x683x140 5x5 = 25
TE24038 40 mm 256x683x140 6x5 = 30
TE24040 40 mm 299x683x140 7x5 = 35
TE24042 40 mm 341x683x140 8x5 = 40
TE24044  40 mm 384x683x140  9x5 = 45
Article no. Box height HxDxW mm No. of boxes
TE24220 50 mm 167x424x140 3x3 = 9
TE24222 50 mm 223x424x140 4x3 = 12
TE24224 50 mm 278x424x140 5x3 = 15
TE24230 50 mm 167x562x140 3x4 = 12
TE24232 50 mm 223x562x140 4x4 = 16

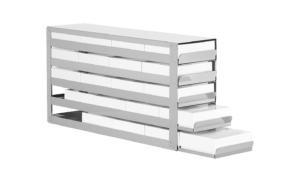

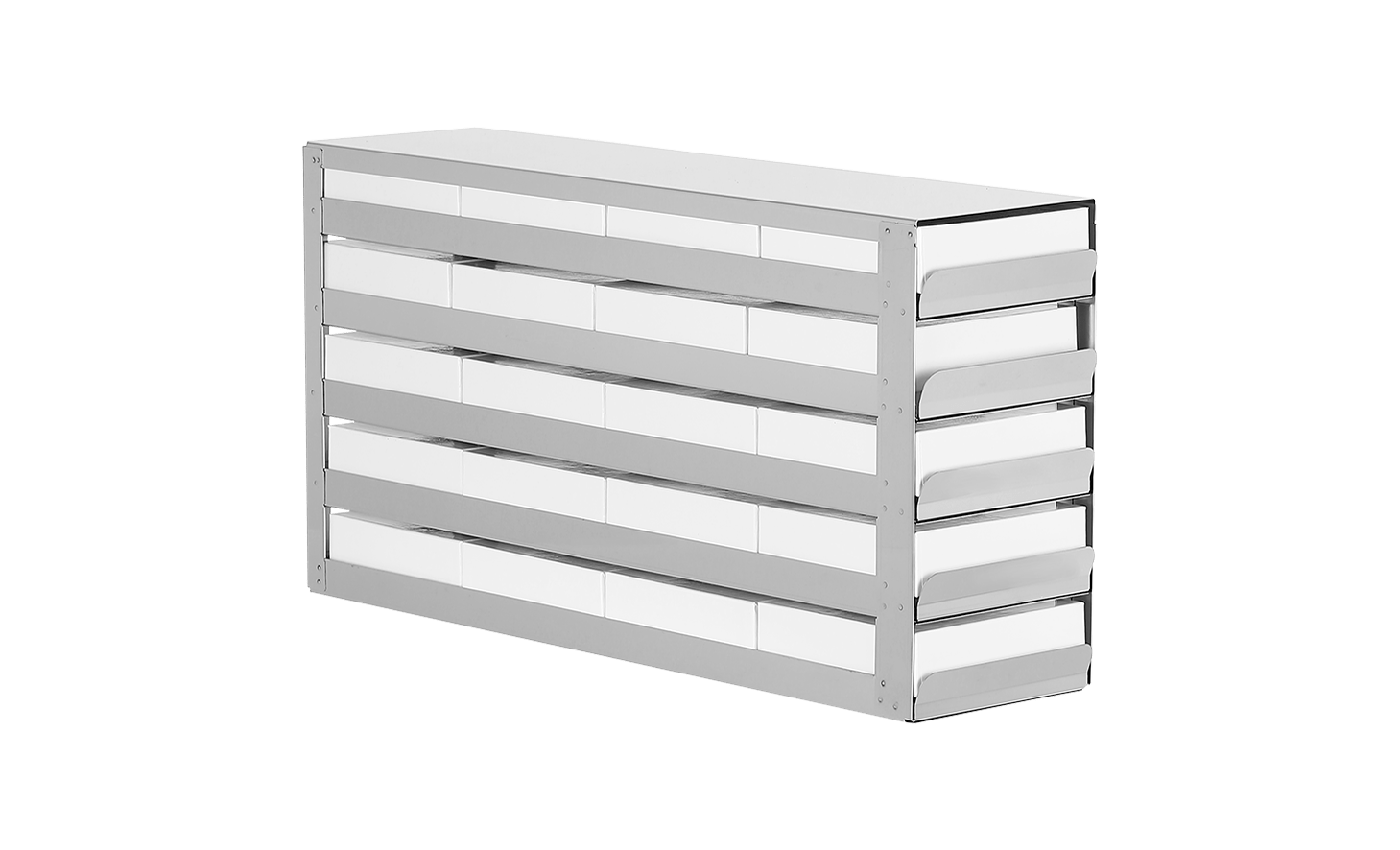

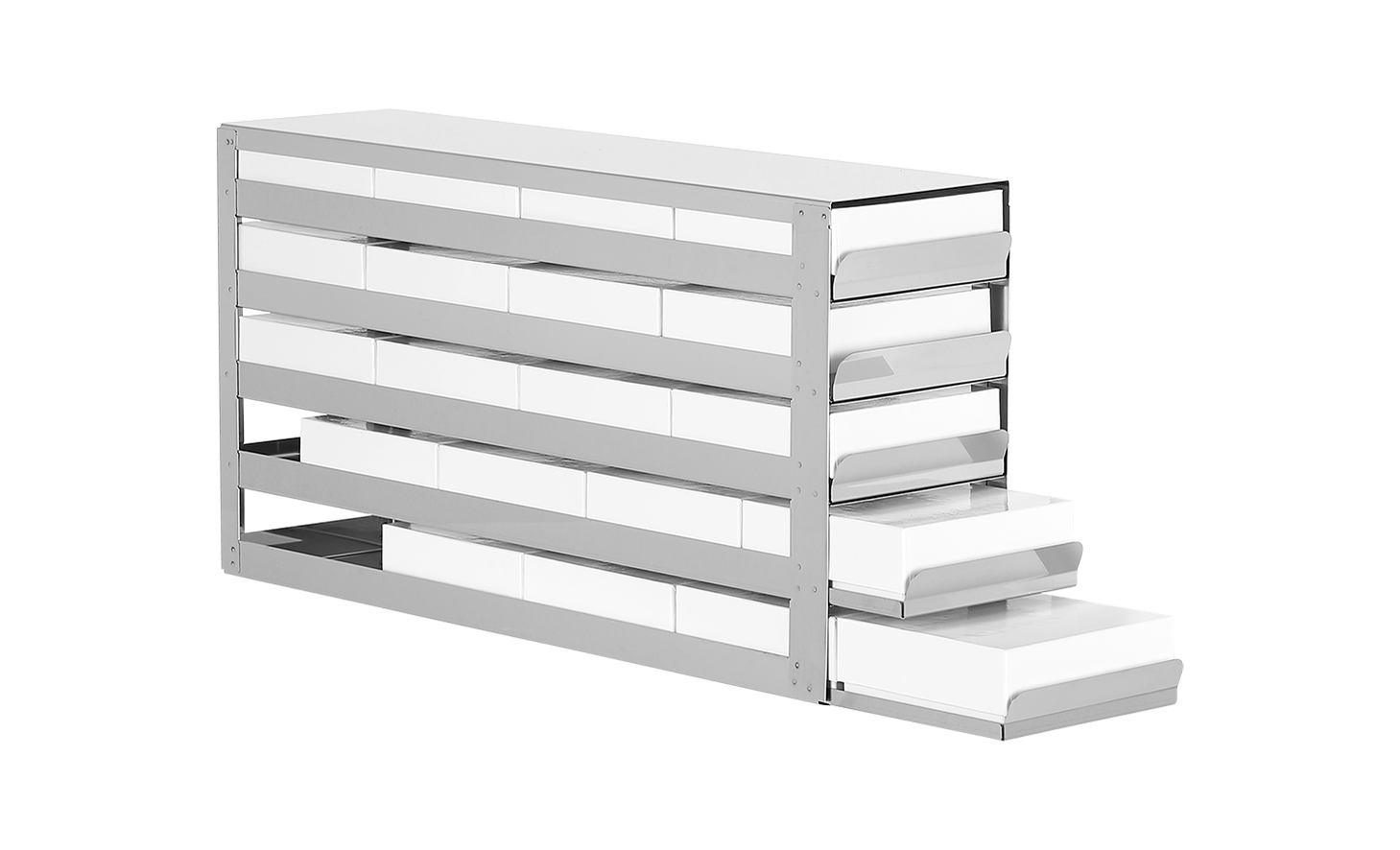

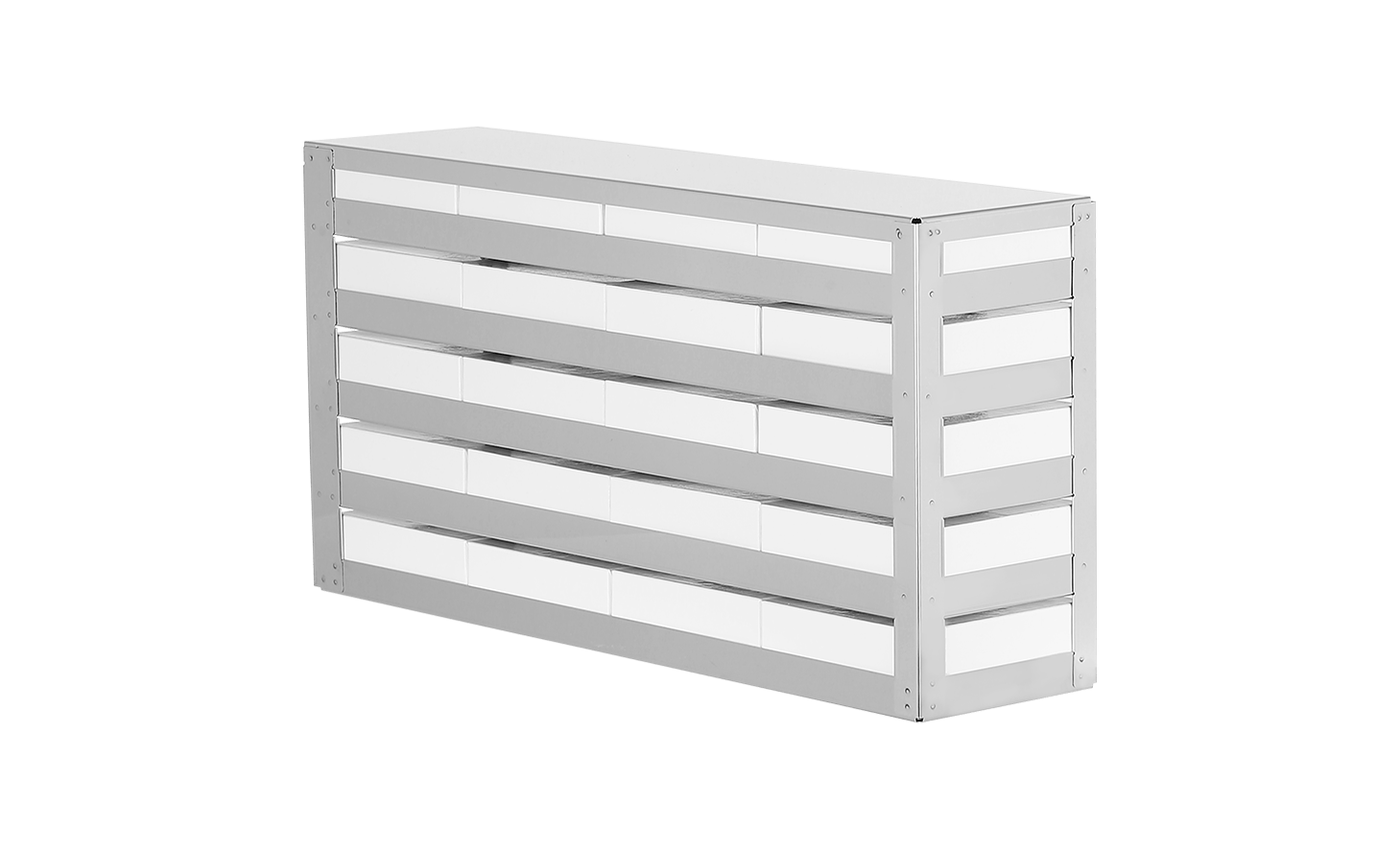

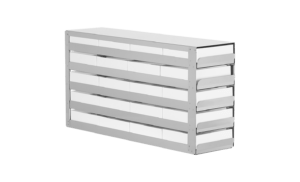

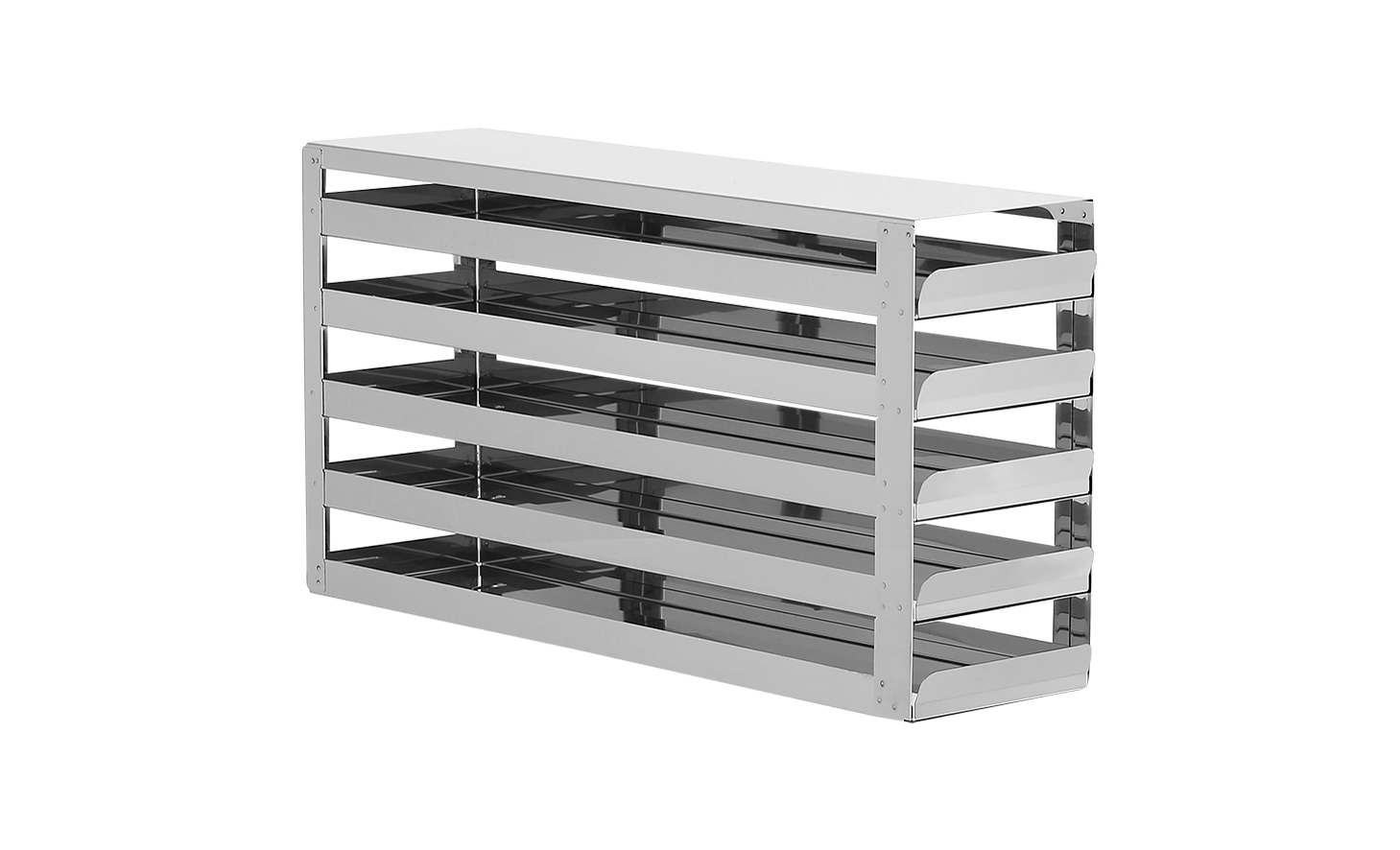

TE24234 50 mm 278x562x140 5x4 = 20
TE24236 50 mm 334x562x140 6x4 = 24
TE24238 50 mm 389x562x140 7x4 = 28
TE24250 50 mm 167x683x140 3x5 = 15
TE24252 50 mm 223x683x140 4x5 = 20
TE24254 50 mm 278x683x140 5x5 = 25
TE24256 50 mm 334x683x140 6x5 = 30
Article no. Box height HxDxW mm No. of boxes
TE24262 75 mm 160x424x140 2x3 = 6
TE24264 75 mm 239x424x140 3x3 = 9
TE24266 75 mm 319x424x140 4x3 = 12
TE24272 75 mm 160x562x140 2x4 = 8

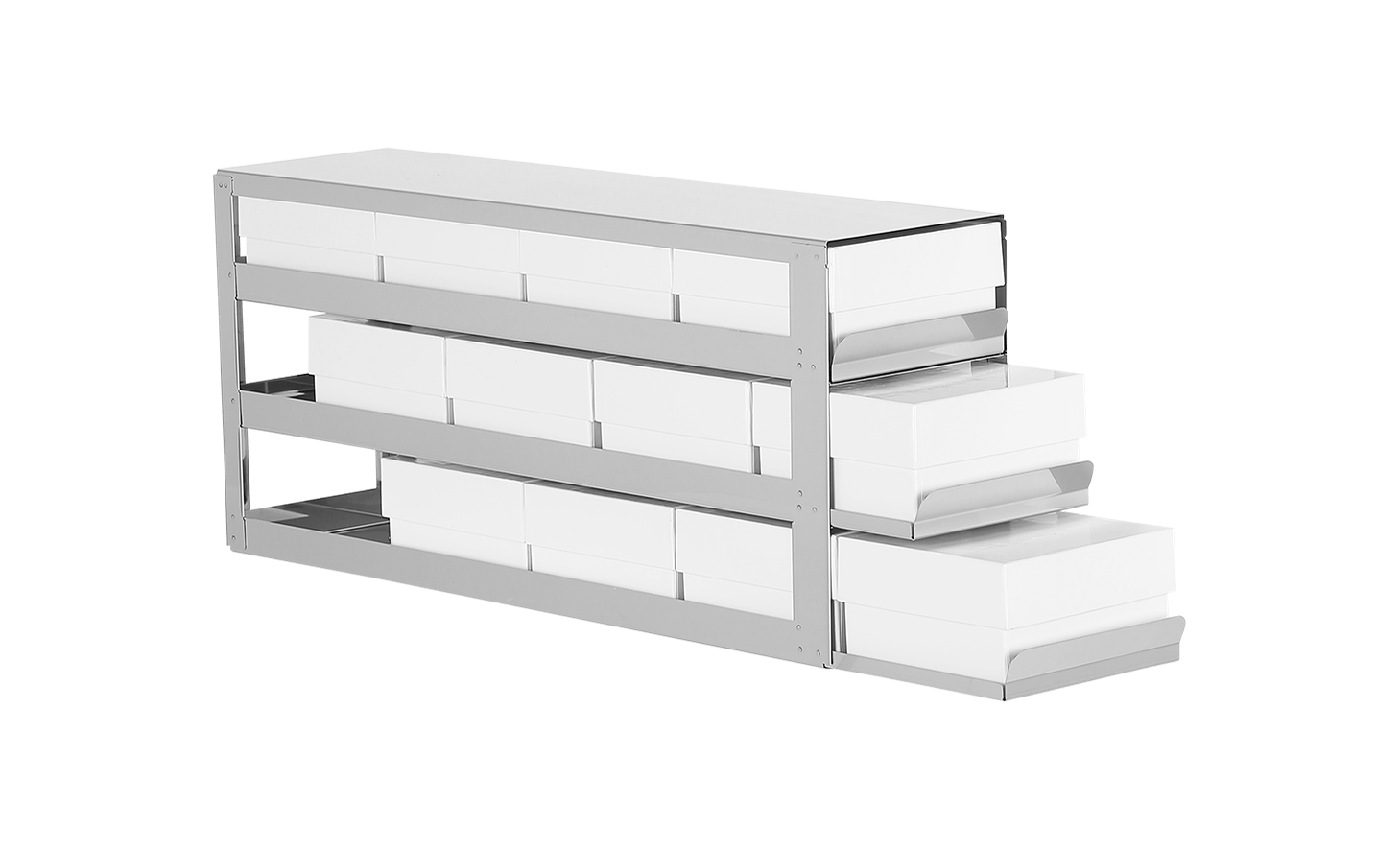

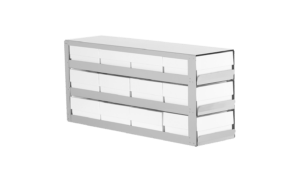

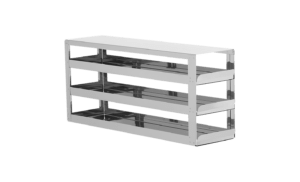

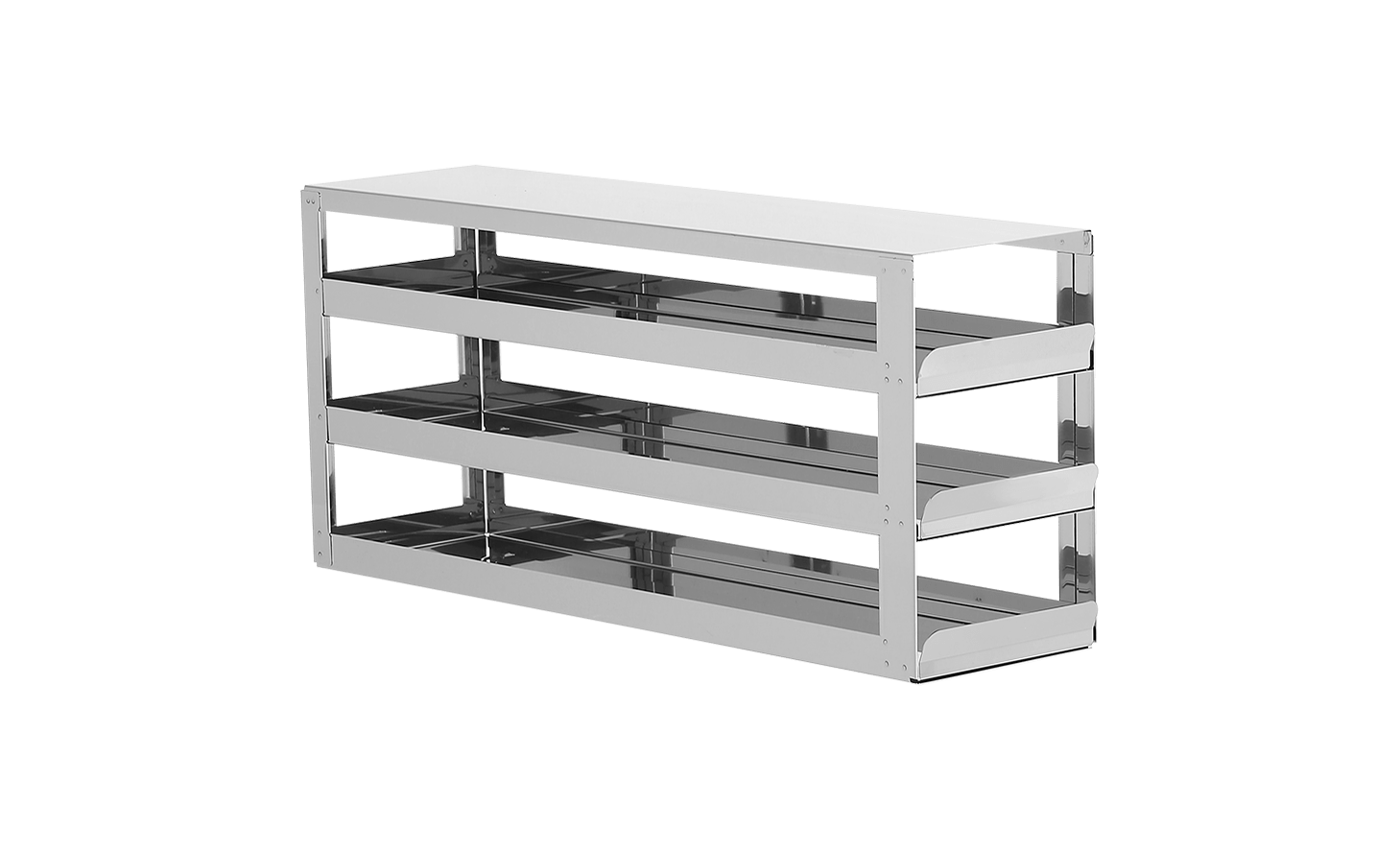

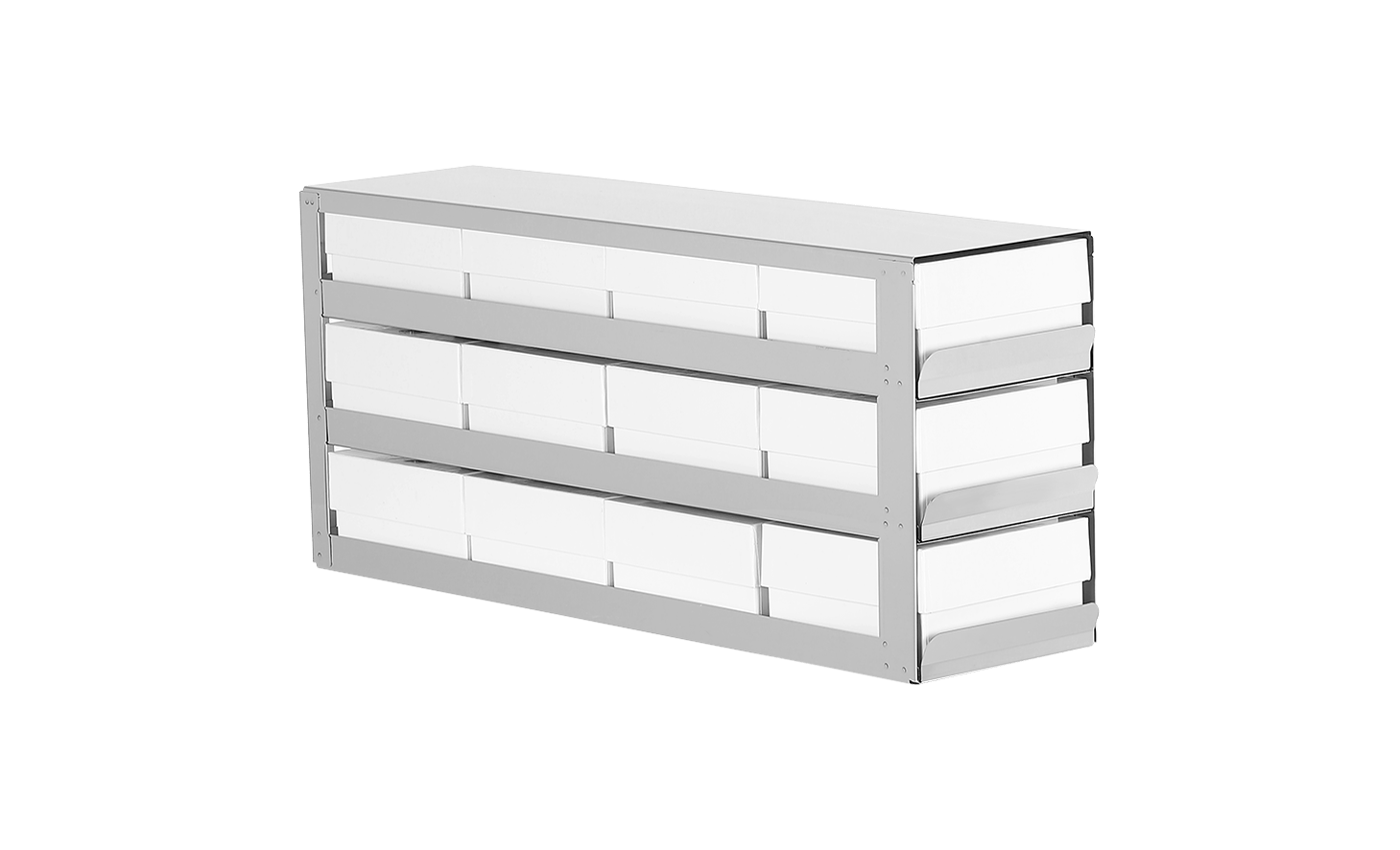

TE24274 75 mm 239x562x140 3x4 = 12
TE24276 75 mm 319x562x140 4x4 = 16
TE24278 75 mm 398x562x140 5x4 = 20
TE24284 75 mm 160x683x140 2x5 = 10
TE24286 75 mm 239x683x140 3x5 = 15
TE24288 75 mm 319x683x140 4x5 = 20
Article no. Box height HxDxW mm No. of boxes
TE24320 85 mm 180x424x140 2x3 = 6
TE24322 85 mm 269x424x140 3x3 = 9
TE24330 85 mm 180x562x140 2x4 = 8

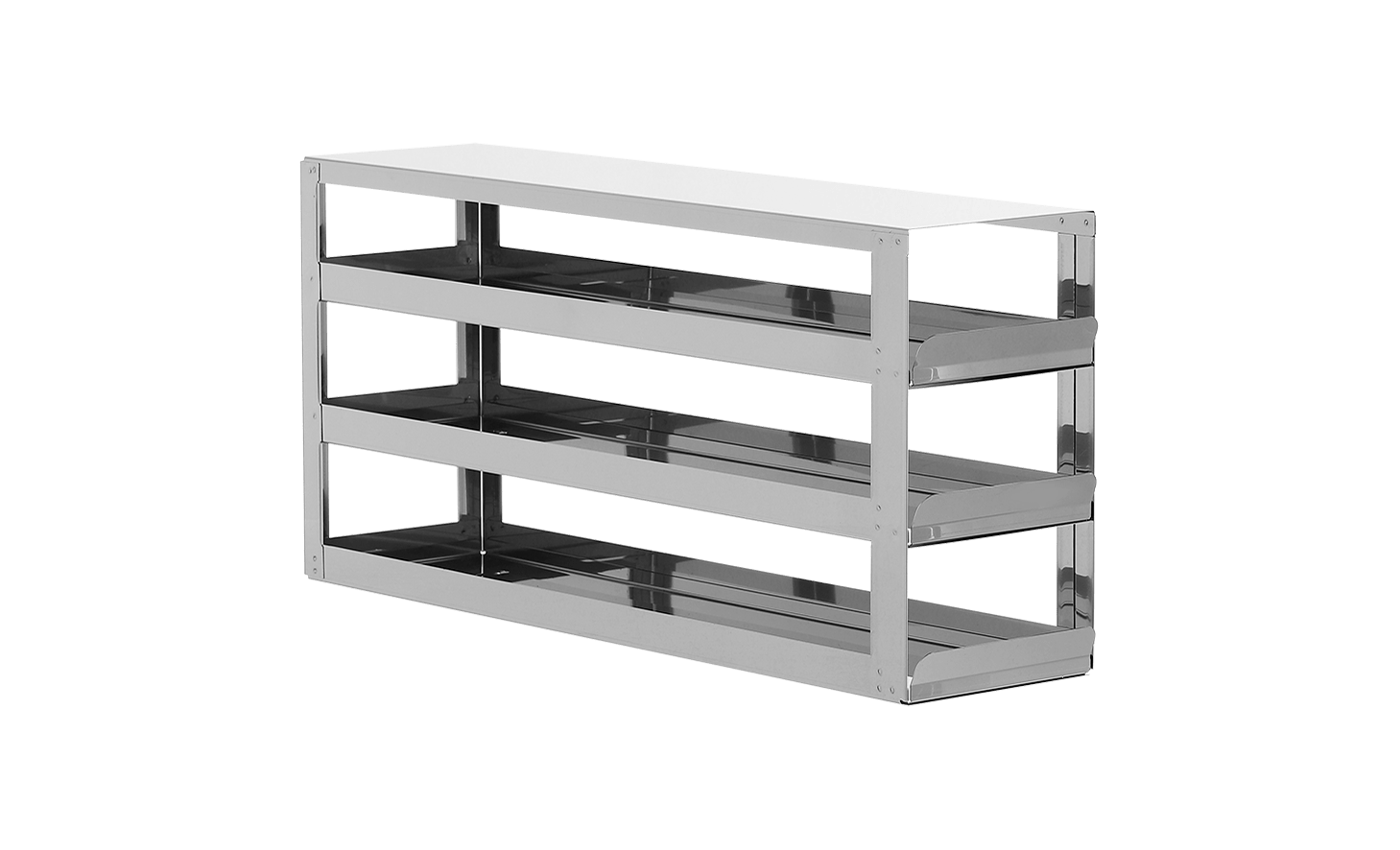

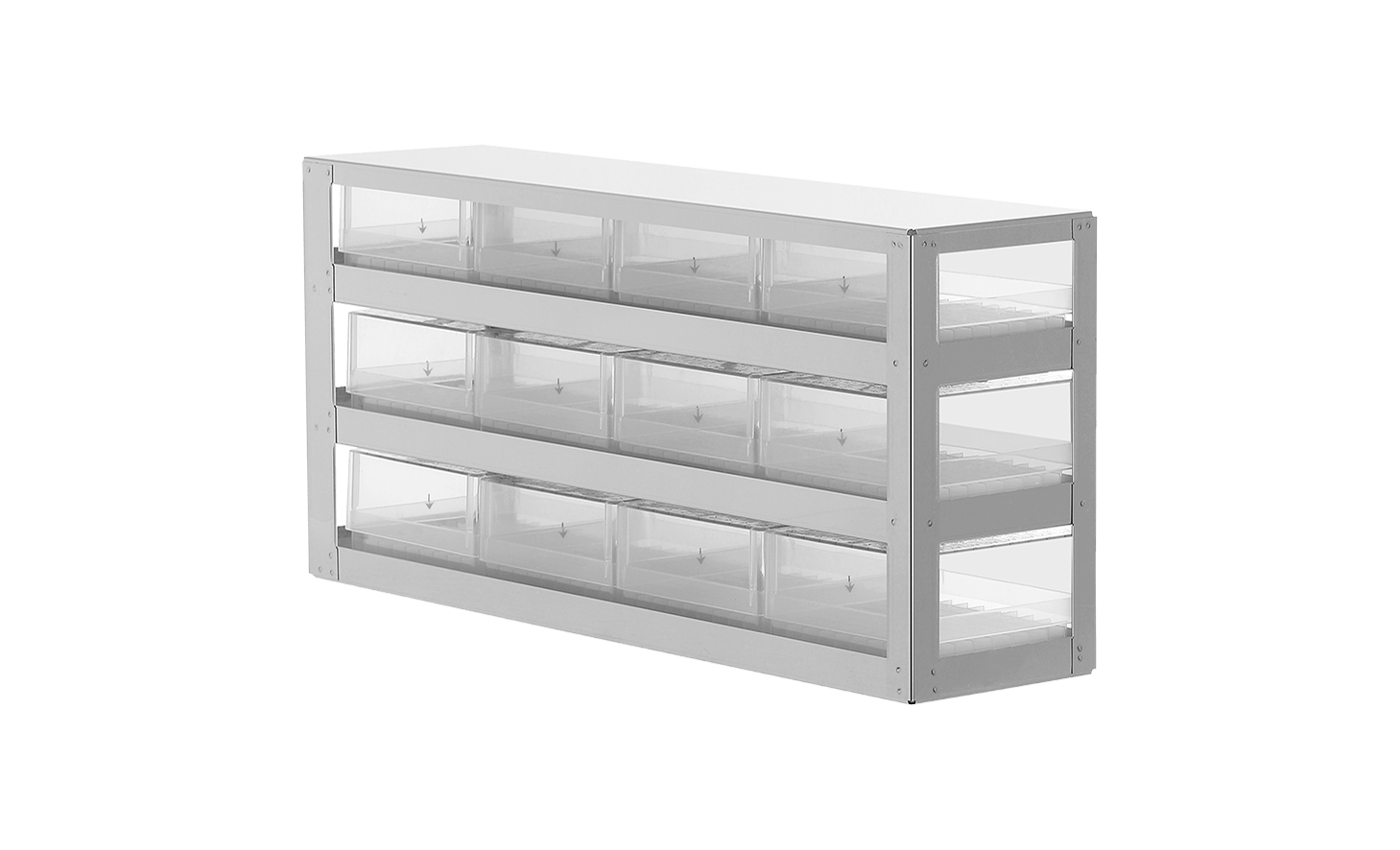

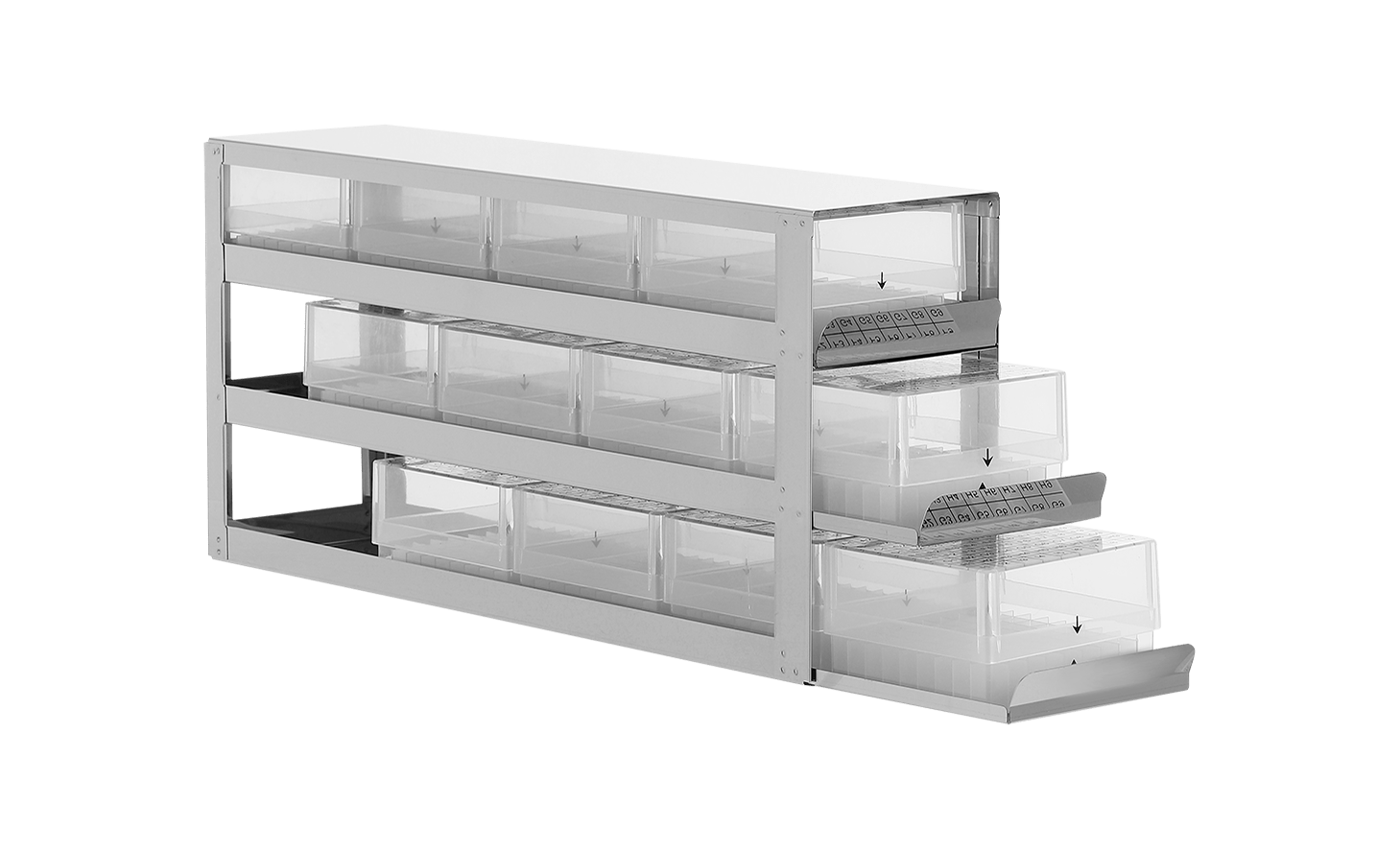

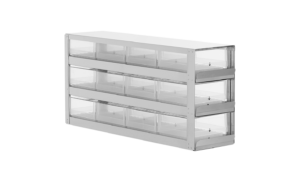

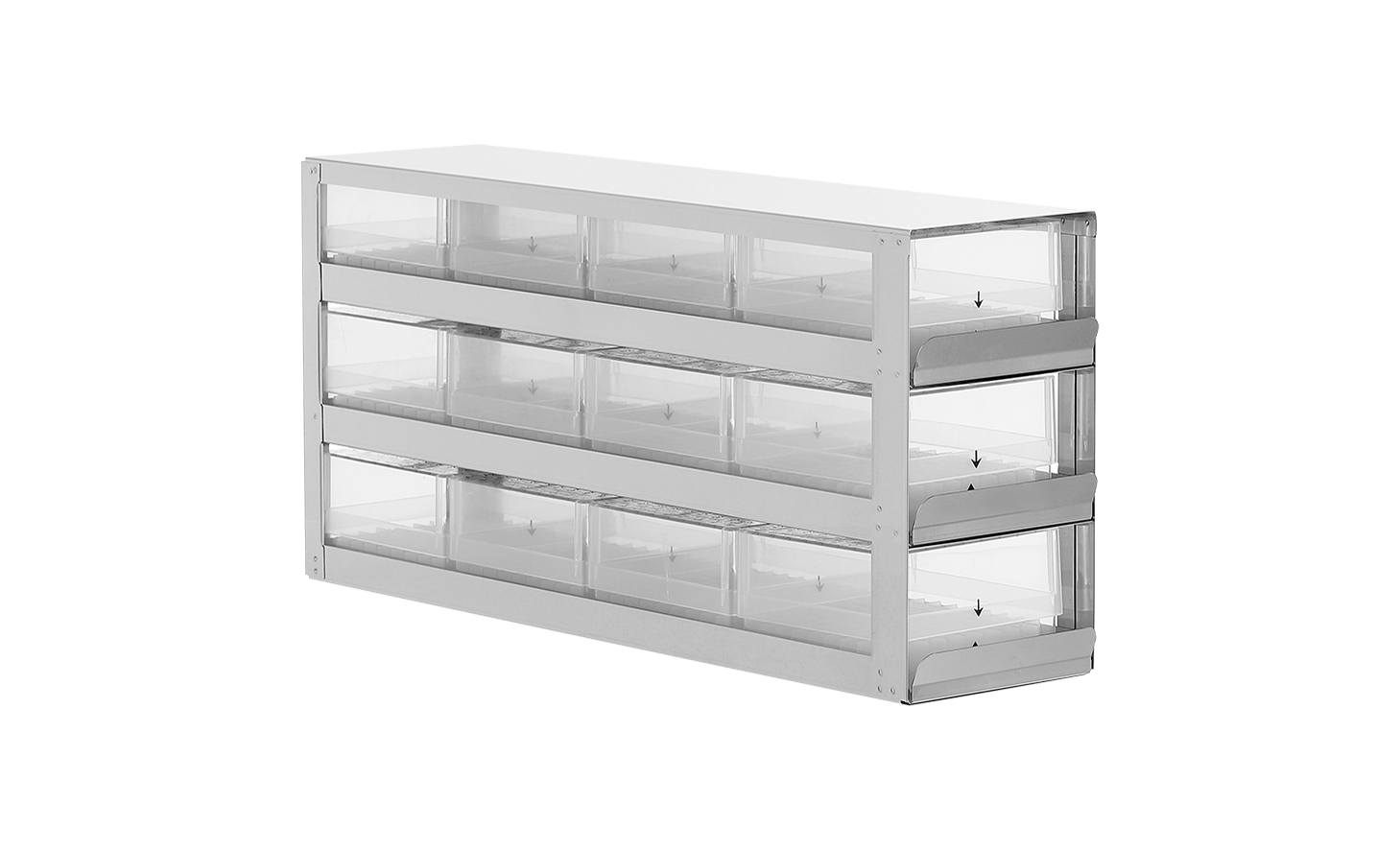

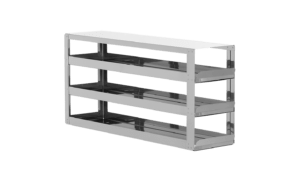

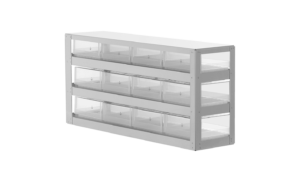

TE24332 85 mm 269x562x140 3x4 = 12
TE24334 85 mm 359x562x140 4x4 = 16
TE24340 85 mm 180x683x140 2x5 = 10
TE24342 85 mm 269x683x140 3x5 = 15
Article no. Box height HxDxW mm No. of boxes
TE24294 100 mm 210x424x140 2x3 = 6
TE24296 100 mm 314x424x140 3x3 = 9
TE24302 100 mm 210x562x140 2x4 = 8

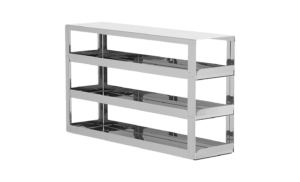

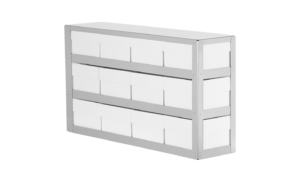

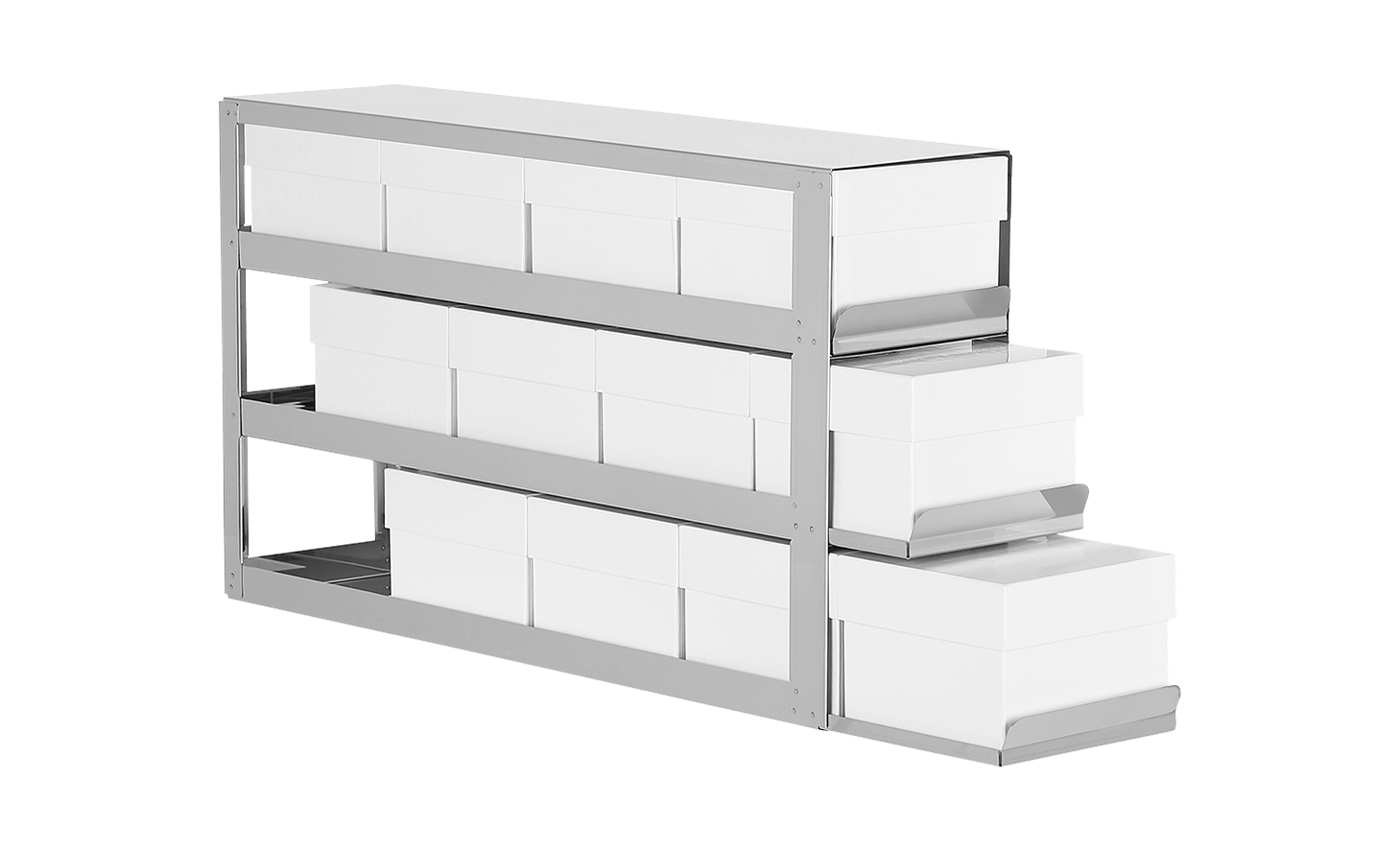

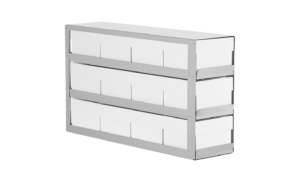

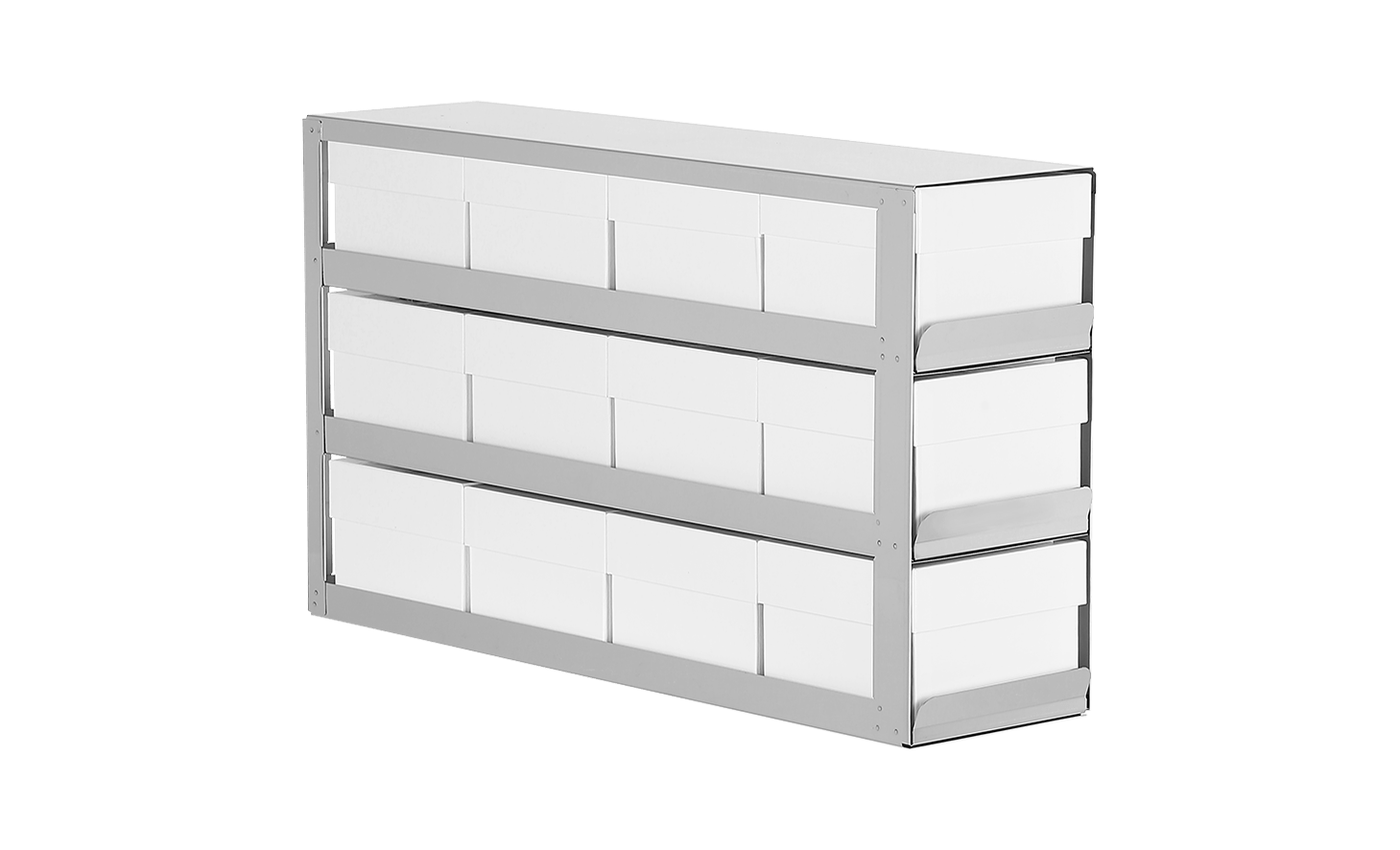

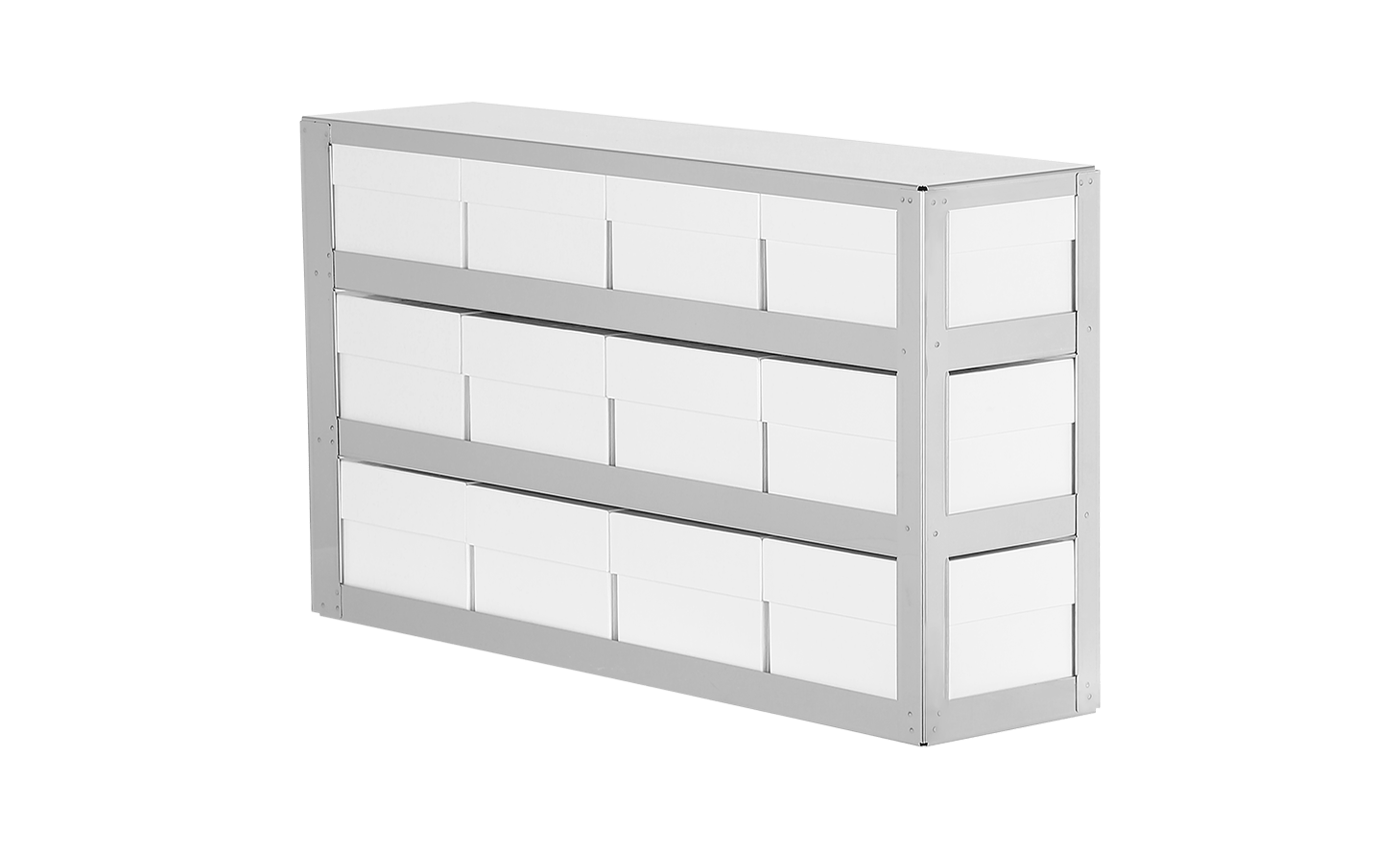

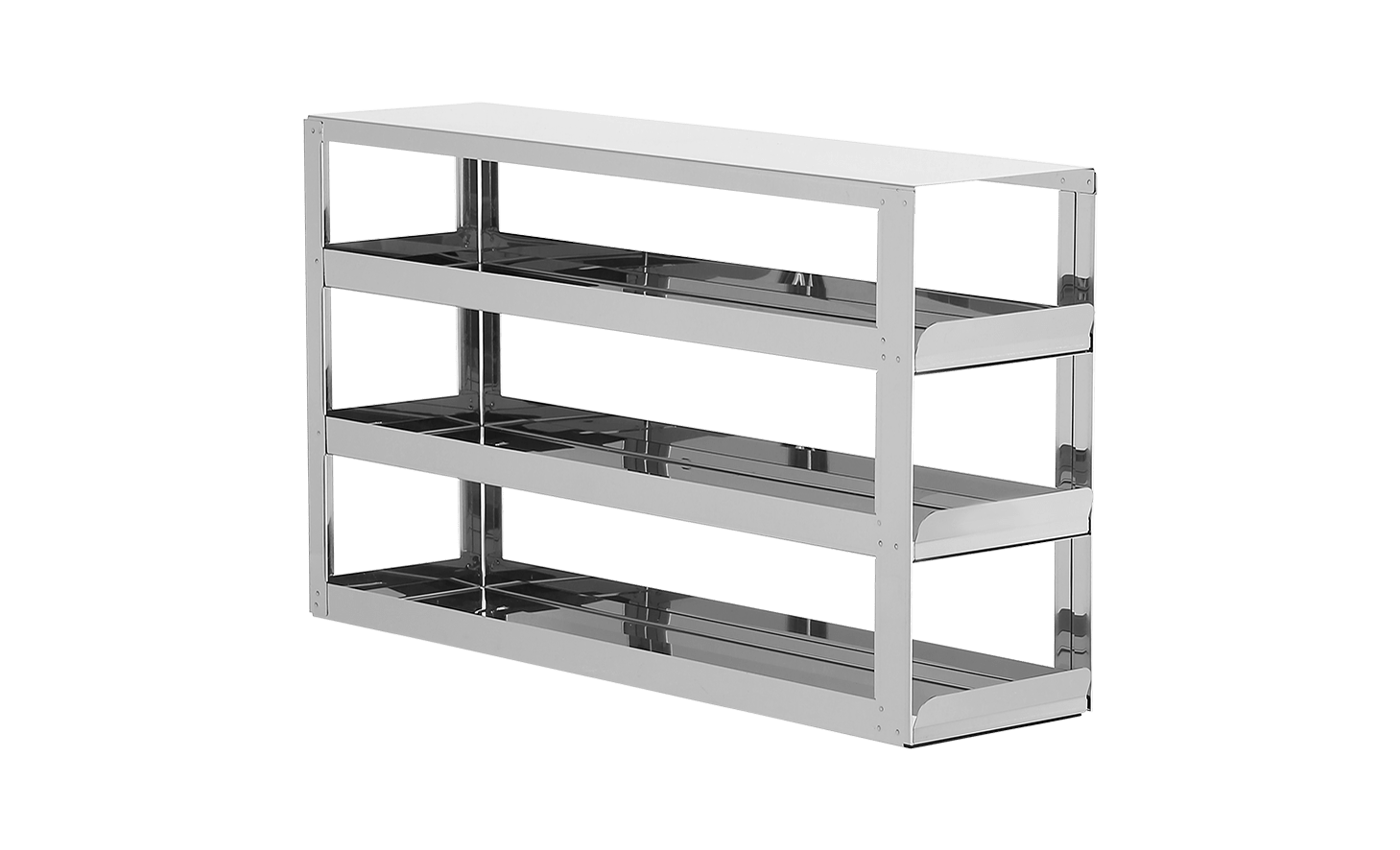

TE24304 100 mm 314x562x140 3x4 = 12
TE24310 100 mm 210x683x140 2x5 = 10
TE24312 100 mm 314x683x140 3x5 = 15
Article no. Box height HxDxW mm No. of boxes
TE25200 130 mm 268x424x140 2x3 = 6
TE25203 130 mm 401x424x140 3x3 = 9

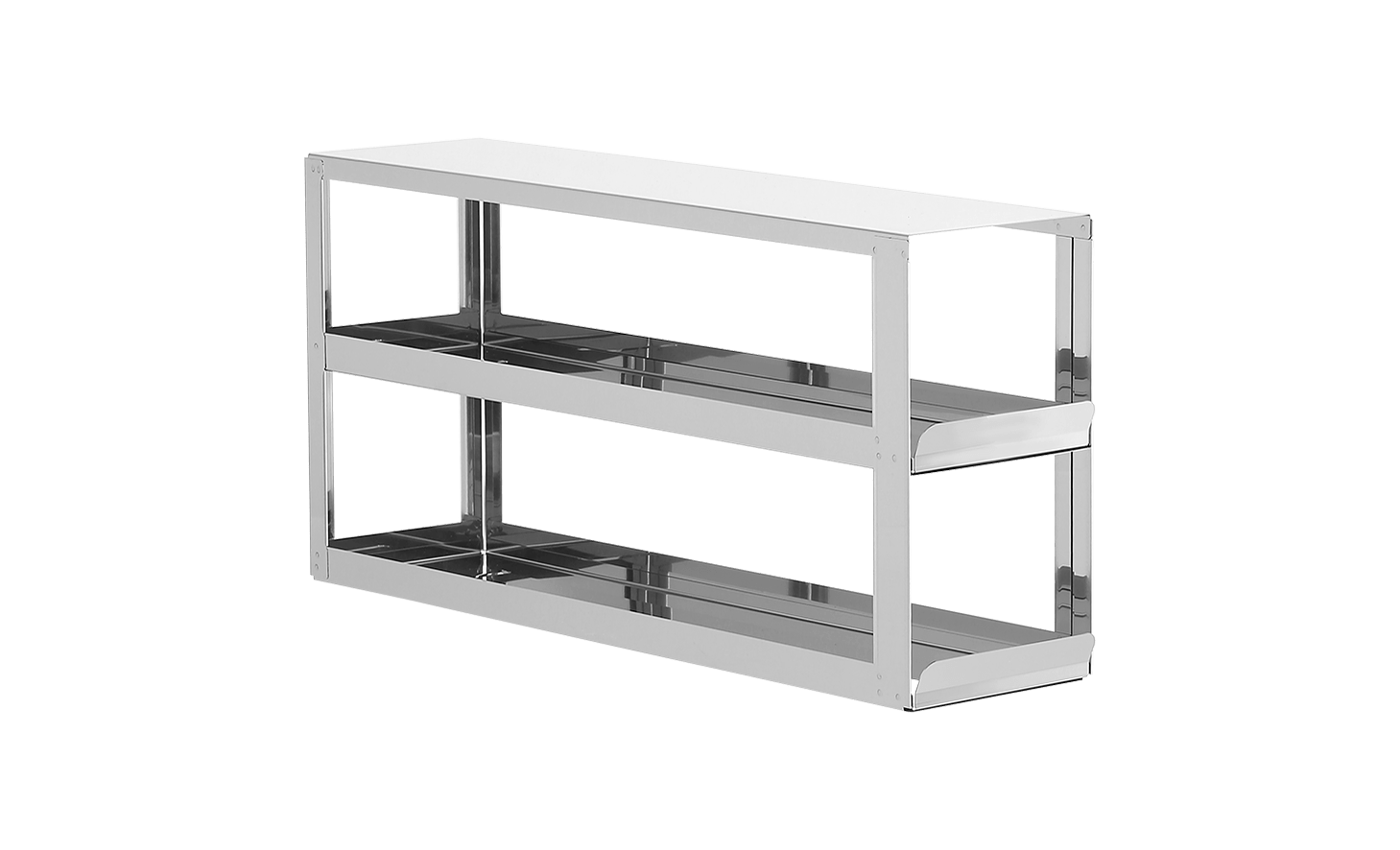

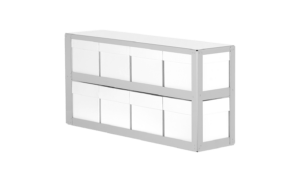

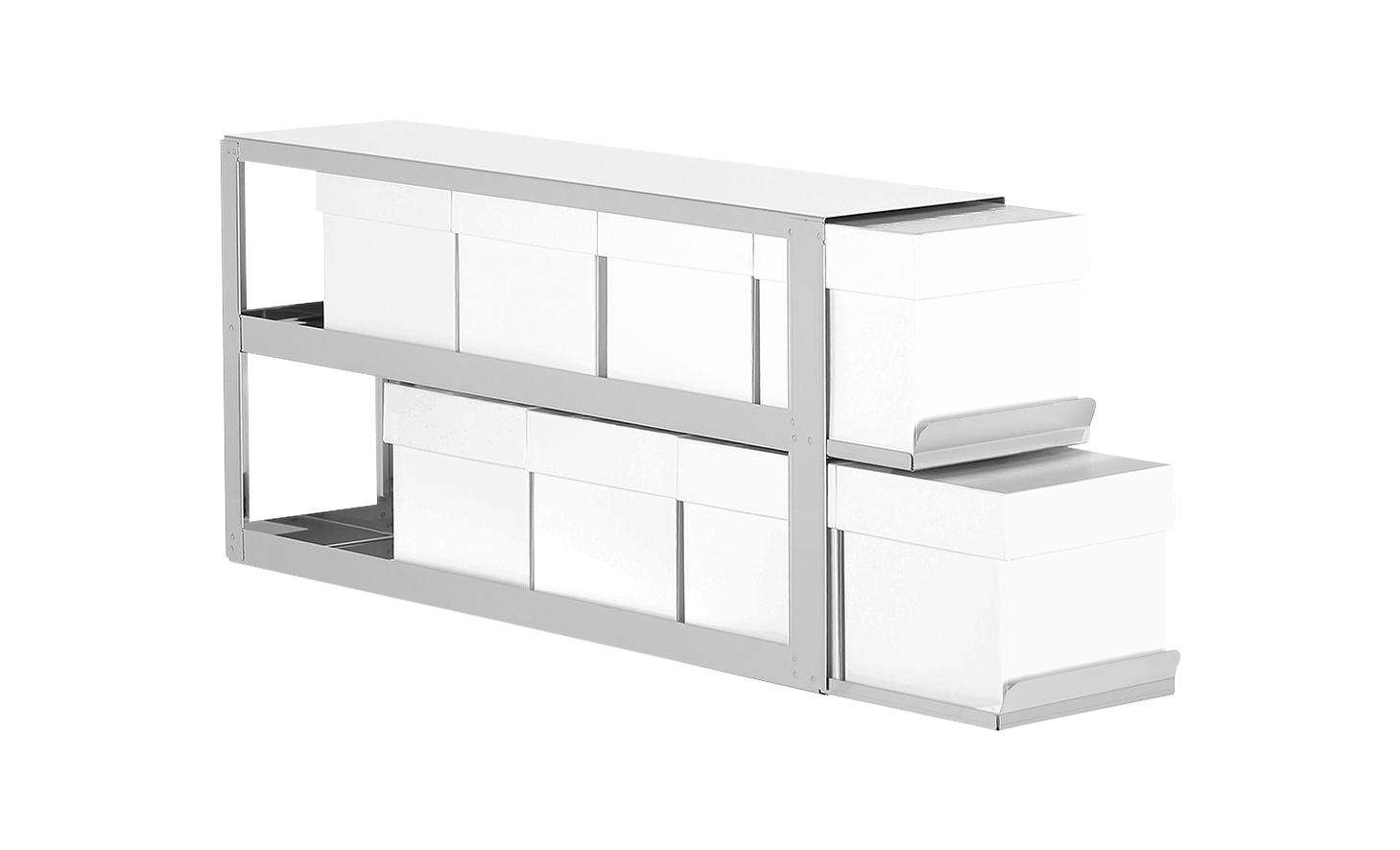

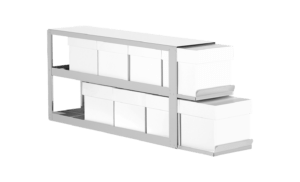

TE25202 130 mm 268x562x140 2x4 = 8
TE25204 130 mm 401x562x140 3x4 = 12
TE25206 130 mm 268x683x140 2x5 = 10
TE25208 130 mm 401x683x140 3x5 = 15
