Comfort Rack for microtiter plates for upright freezers

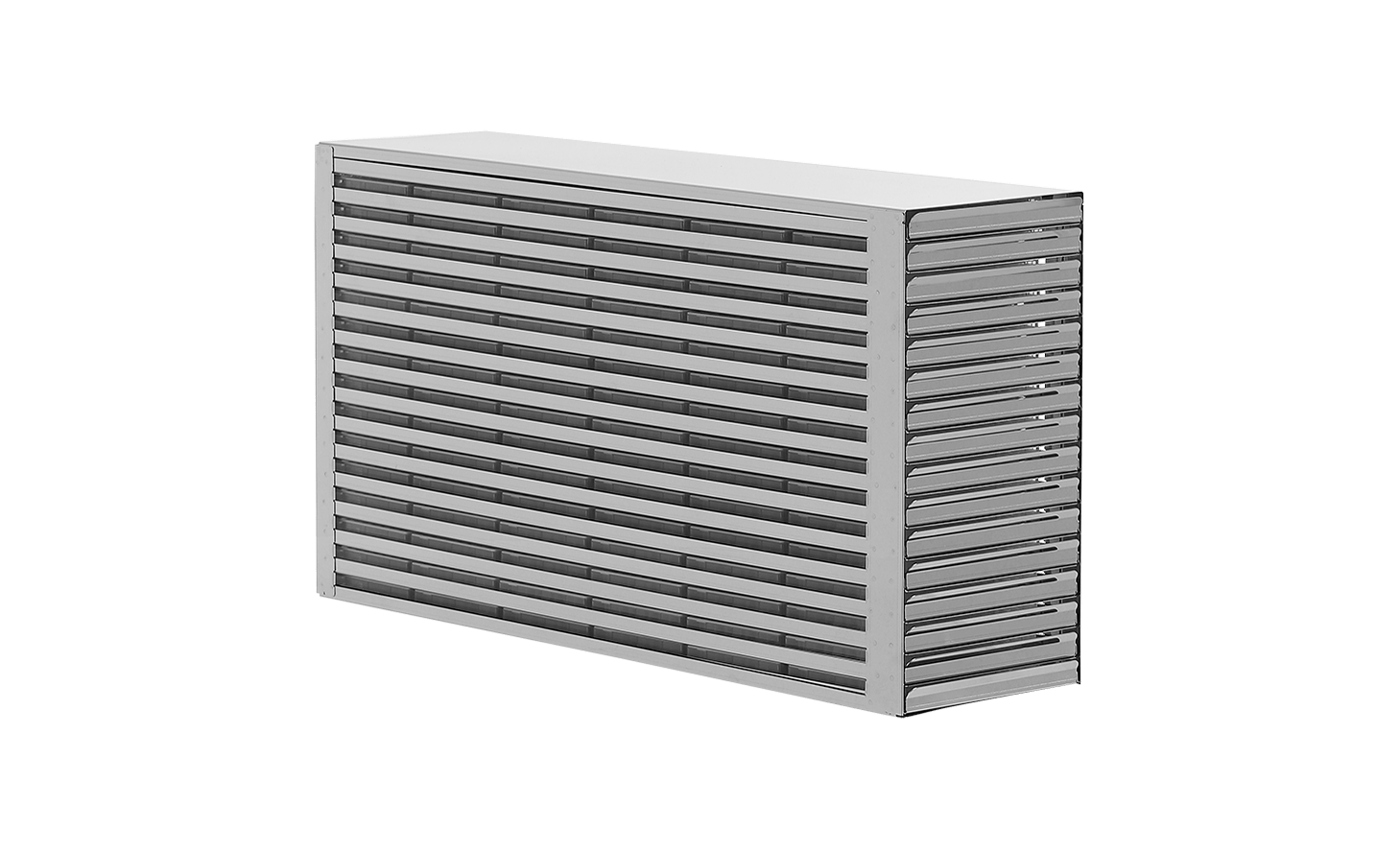

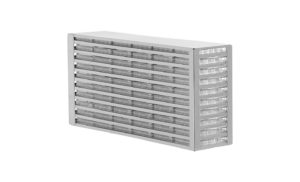

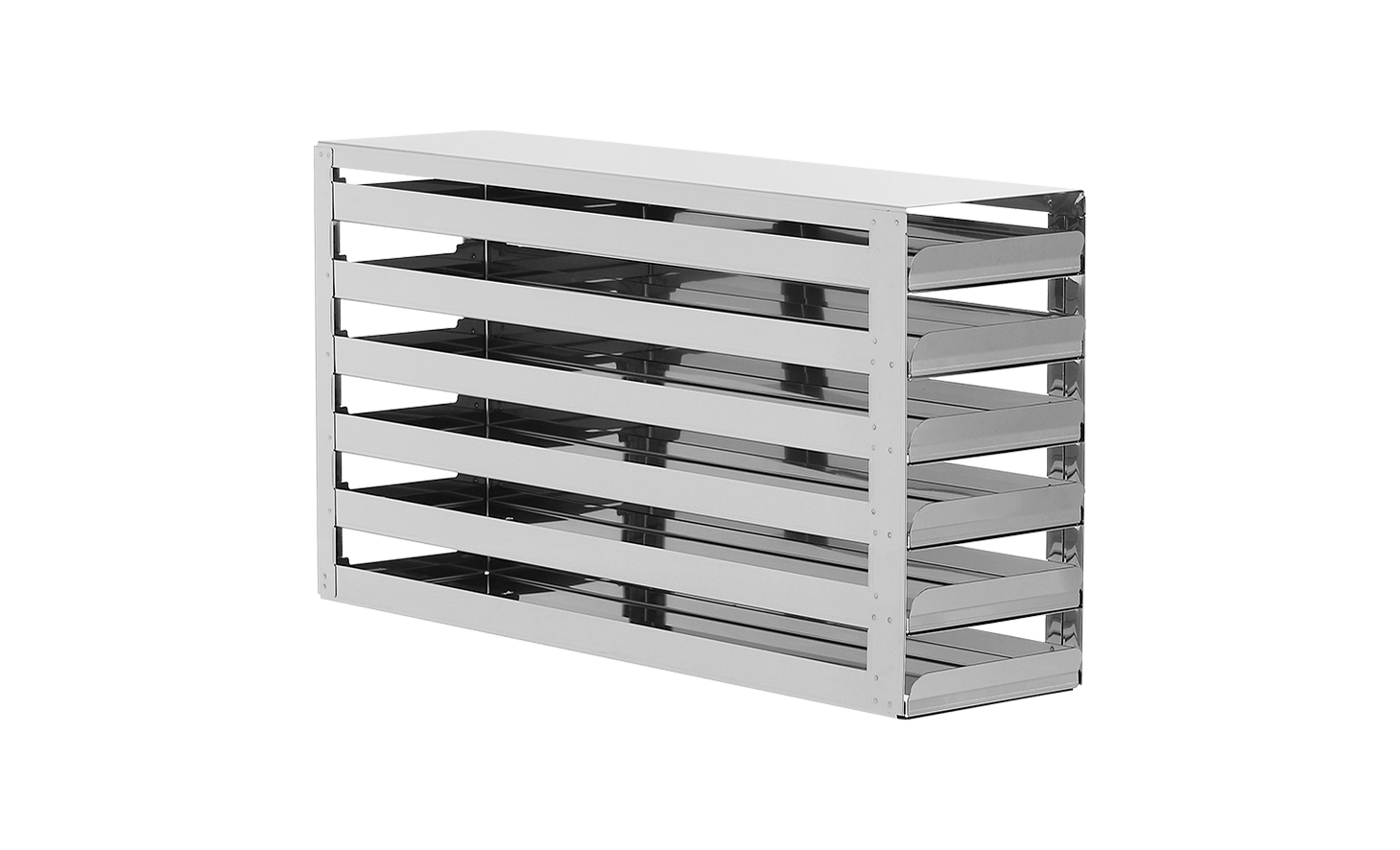

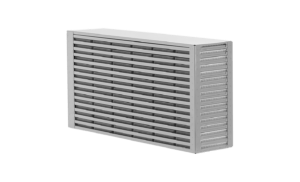

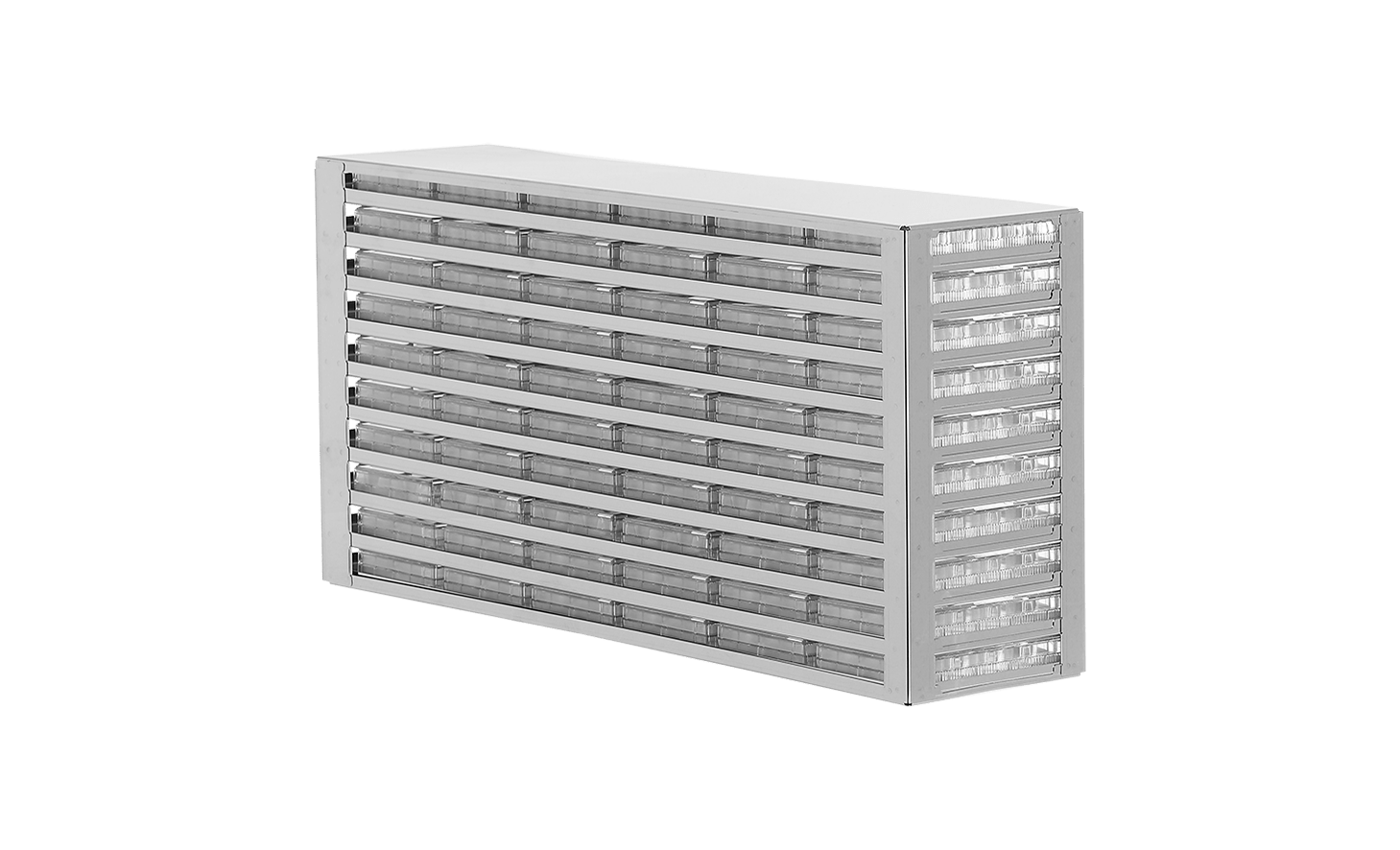

Our Comfort Rack is our freezer rack with sliding shelves for MTP and SBS format.

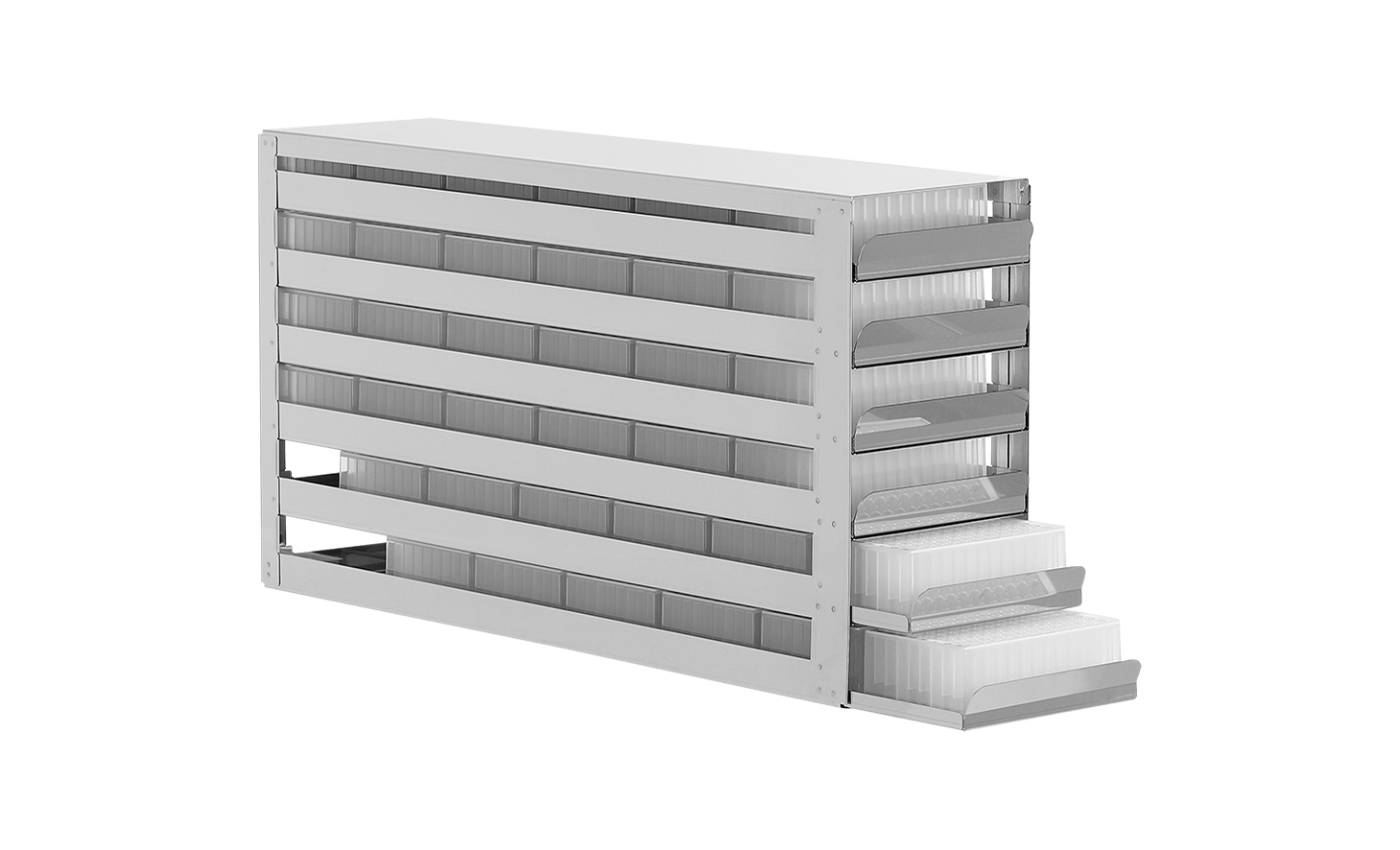

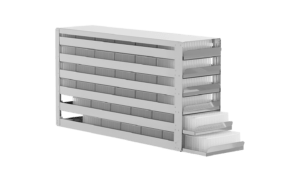

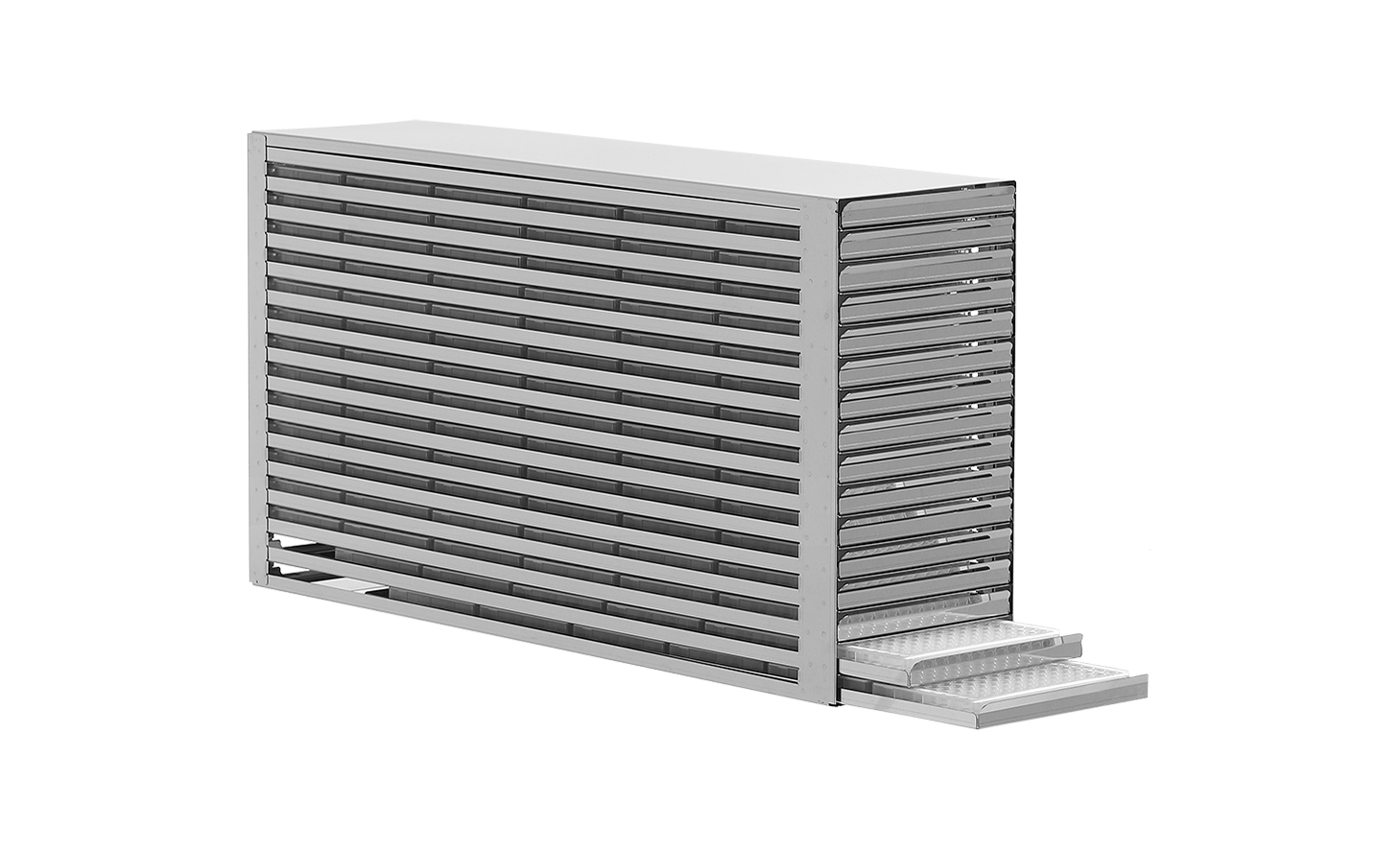

This is a complete range of racks for microtiter plates for use in chest freezers. Choose from 5 different shelf heights depending on preferences. The freezer rack with sliding shelves for MTP or SBS format can either be used as one plate per shelf or the plates can be stacked. The racks are available with a shelf height of 16 mm, 25 mm, 45 mm, 65 mm and 85 mm. The external footprint is 135×92 mm on all racks.

The comfort rack has a stop alert that indicates that the user has reached the end of the shelf.

Read more about our Usability explanation and product comparison.

loader-icon
Article no. Shelf height HxDxW mm No. of shelves
TE35400 16 mm 158x360x135 9x4 = 36
TE35402 16 mm 228x360x135 13x4 = 52
TE35404 16 mm 280x360x135 16x4 = 64
TE35406 16 mm 298x360x135 17x4 = 68
TE35450 16 mm 158x450x135 9x5 = 45
TE35452 16 mm 228x450x135 13x5 = 65
TE35454 16 mm 280x450x135 16x5 = 80
TE35456 16 mm 333x450x135 19x5 = 90
TE35458 16 mm 403x450x135 23x5 = 115
TE35520 16 mm 158x540x135 9x6 = 54
TE35522 16 mm 228x540x135 13x6 =78

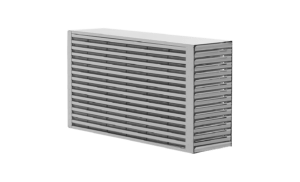

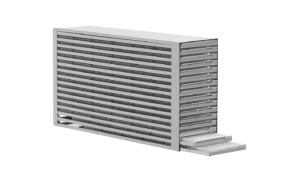

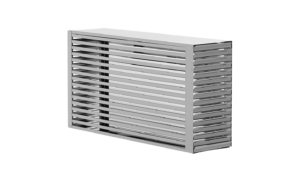

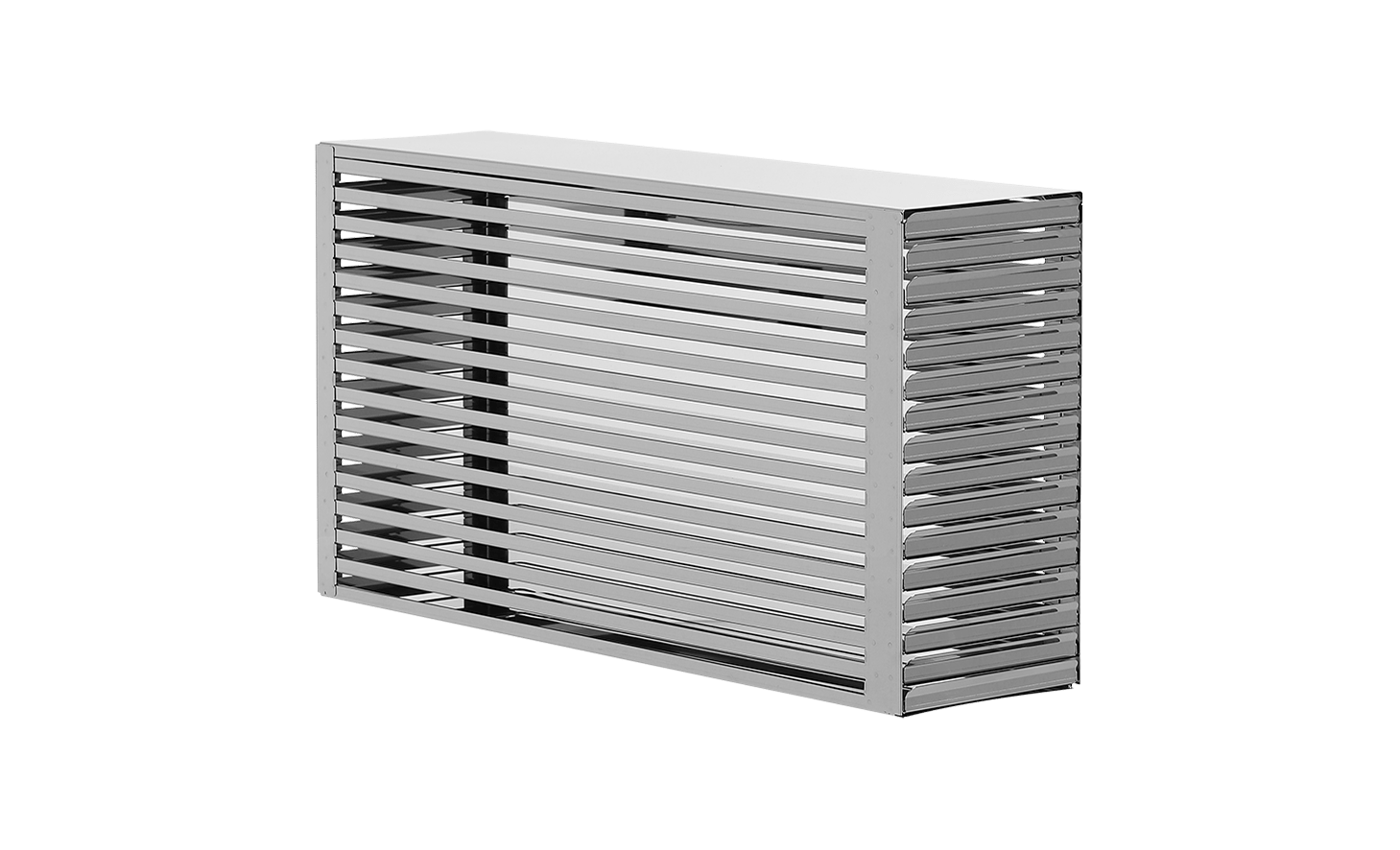

TE35524 16 mm 280x540x135 16x6 = 96
TE35526 16 mm 333x540x135 19x6 = 114
Article no. Shelf height HxDxW mm No. of shelves
TE35410 25 mm 163x360x135 6x4 = 24
TE35412 25 mm 217x360x135 8x4 = 32
TE35414 25 mm 271x360x135 10x4 = 40
TE35416 25 mm 325x360x135 12x4 = 48
TE35460 25 mm 163x450x135 6x5 = 30
TE35462 25 mm 217x450x135 8x5 = 40
TE35464 25 mm 271x450x135 10x5= 50
TE35466 25 mm 325x450x135 12x5 = 60
TE35468 25 mm 371x450x135 14x5 = 70
TE35470 25 mm 406x450x135 15x5 = 75
TE35530 25 mm 163x540x135 6x6 = 36
TE35532 25 mm 217x540x135 8x6 = 48

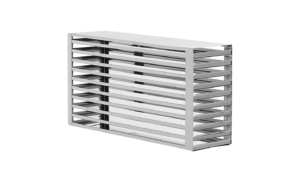

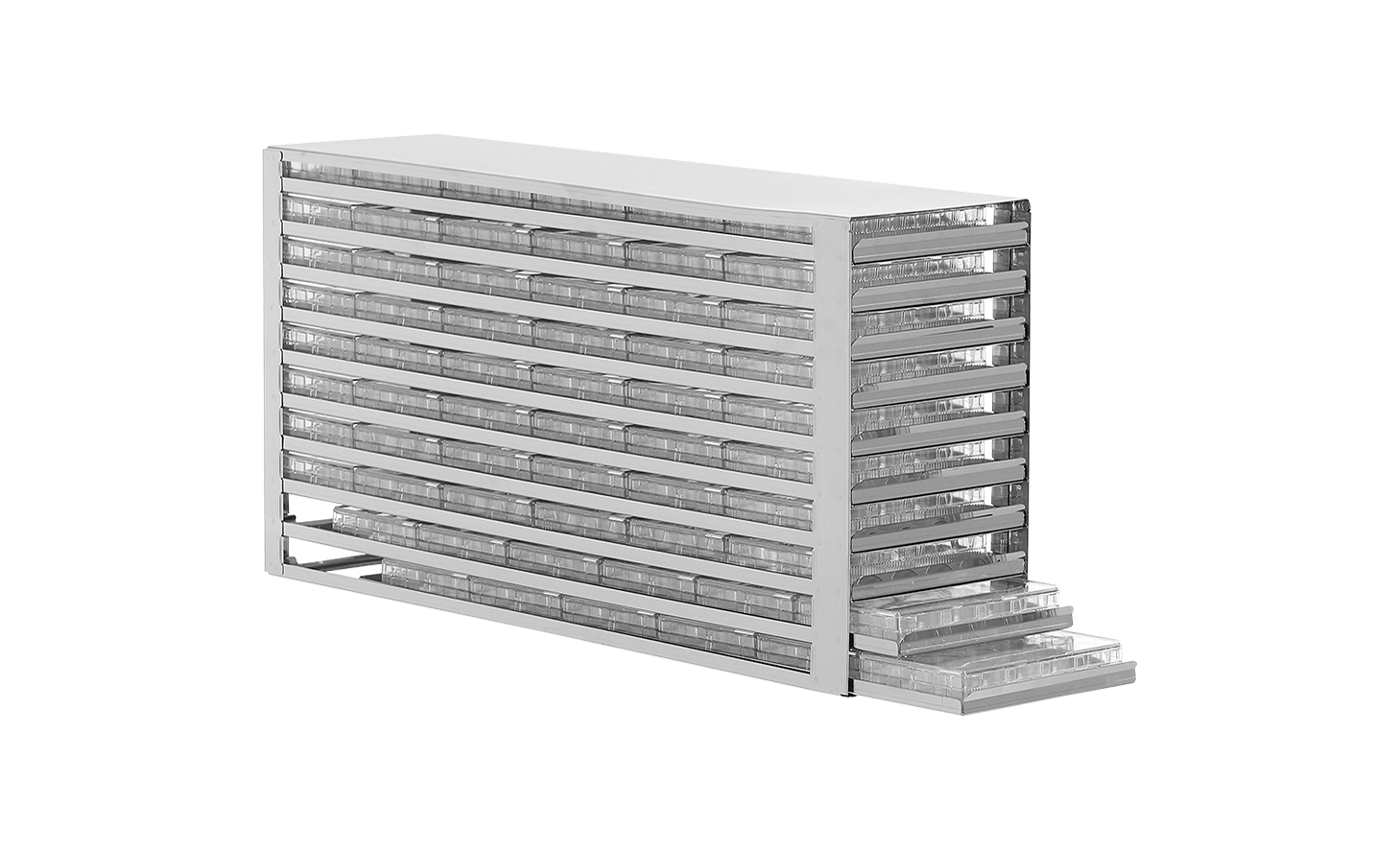

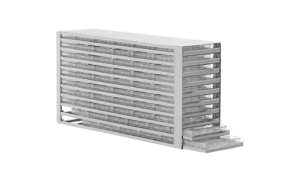

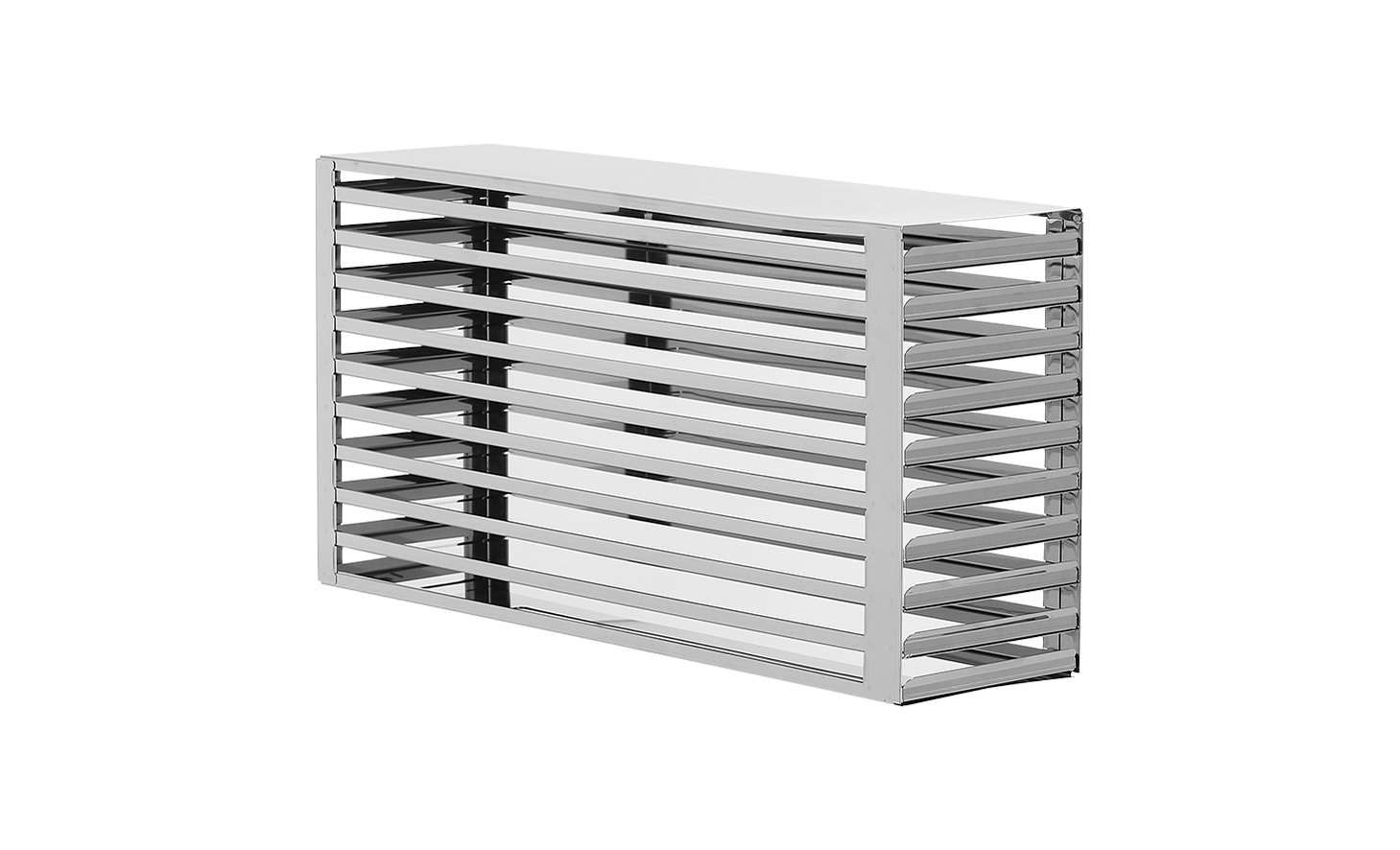

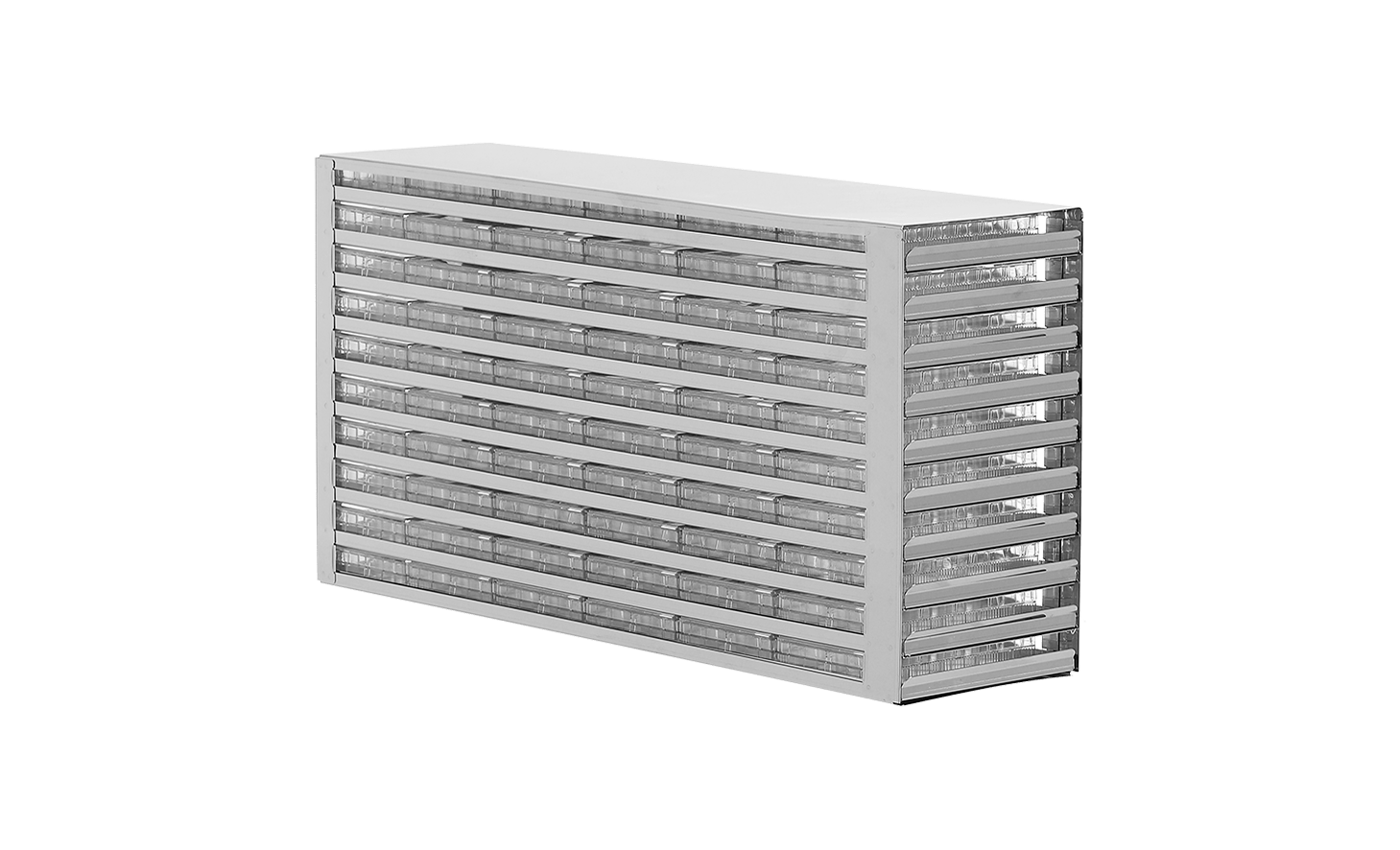

TE35534 25 mm 271x540x135 10x6 = 60
TE35536 25 mm 325x540x135 12x6 = 72
TE35580 25 mm 163x630x135 6x7 = 42
TE35582 25 mm 217x630x135 8x7 = 56
TE35584 25 mm 271x630x135 10x7 = 70
TE35586  25 mm 325x630x135 12x7 = 84
Article no. Shelf height HxDxW mm No. of shelves
TE35420 45 mm 142x360x135 3x4 = 12
TE35422 45 mm 189x360x135 4x4 = 16
TE35424 45 mm 236x360x135 5x4 = 20
TE35426 45 mm 283x360x135 6x4 = 24
TE35480 45 mm 142x450x135 3x5 = 15
TE35482 45 mm 189x450x135 4x5 = 20
TE35484 45 mm 236x450x135 5x5 = 25
TE35486 45 mm 283x450x135 6x5 = 30
TE35488 45 mm 330x450x135 7x5 = 35
TE35490 45 mm 377x450x135 8x5 = 40
TE35540 45 mm 142x540x135 3x6 = 18
TE35542 45 mm 189x540x135 4x6 = 24
TE35544 45 mm 236x540x135 5x6 = 30

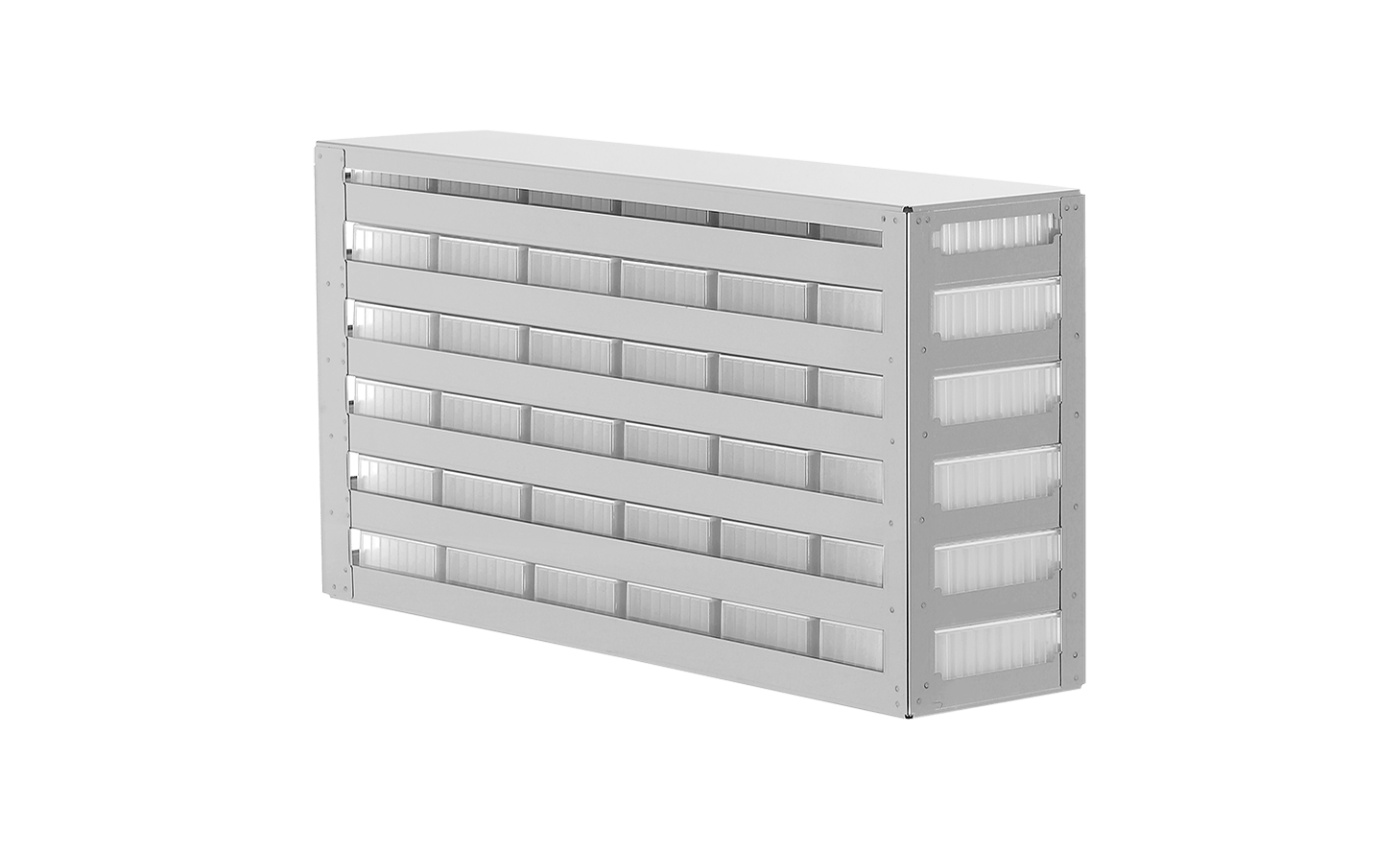

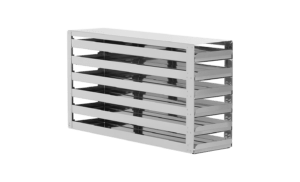

TE35546 45 mm 283x540x135 6x6 = 36
TE35548 45 mm 330x540x135 7x6 = 42
TE35590 45 mm 142x630x135 3x7 = 21
TE35592 45 mm 189x630x135 4x7 = 28
TE35594  45 mm 236x630x135 5x7 = 35
TE35596 45 mm 283x630x135 6x7 = 42
TE35598 45 mm 330x630x135 7x7 = 49
Article no. Shelf height HxDxW mm No. of shelves
TE35430 65 mm 135x360x135 2x4 = 8
TE35432 65 mm 202x360x135 3x4 = 12
TE35434 65 mm 269x360x135 4x4 = 16
TE35500 65 mm 135x450x135 2x5 = 10
TE35502 65 mm 202x450x135 3x5 = 15
TE35504 65 mm 269x450x135 4x5 = 20
TE35506 65 mm 336x450x135 5x5 = 25
TE35508 65 mm 299x450x135 6x5 = 30
TE35550 65 mm 135x540x135 2x6 = 12
TE35552 65 mm 202x540x135 3x6 = 18
TE35554 65 mm 269x540x135 4x6 = 24
TE35556 65 mm 336x540x135 5x6 = 30
TE35558 65 mm 403x540x135 6x6 = 36
TE35600 65 mm 135x630x135 2x7 = 14
TE35602 65 mm 202x630x135 3x7 = 21
TE35604 65 mm 269x630x135 4x7 = 28
TE35606 65 mm 336x630x135 5x7 = 35
Article no. Shelf height HxDxW mm No. of shelves
TE35440 85 mm 175x360x135 2x4 = 8
TE35442 85 mm 262x360x135 3x4 = 12
TE35510 85 mm 175x450x135 2x5 = 10
TE35512 85 mm 262x450x135 3x5 = 15
TE35514 85 mm 349x450x135 4x5 = 20
TE35560 85 mm 175x540x135 2x6 = 12
TE35562 85 mm 262x540x135 3x6 = 18
TE35564 85 mm 349x540x135 4x6 = 24
