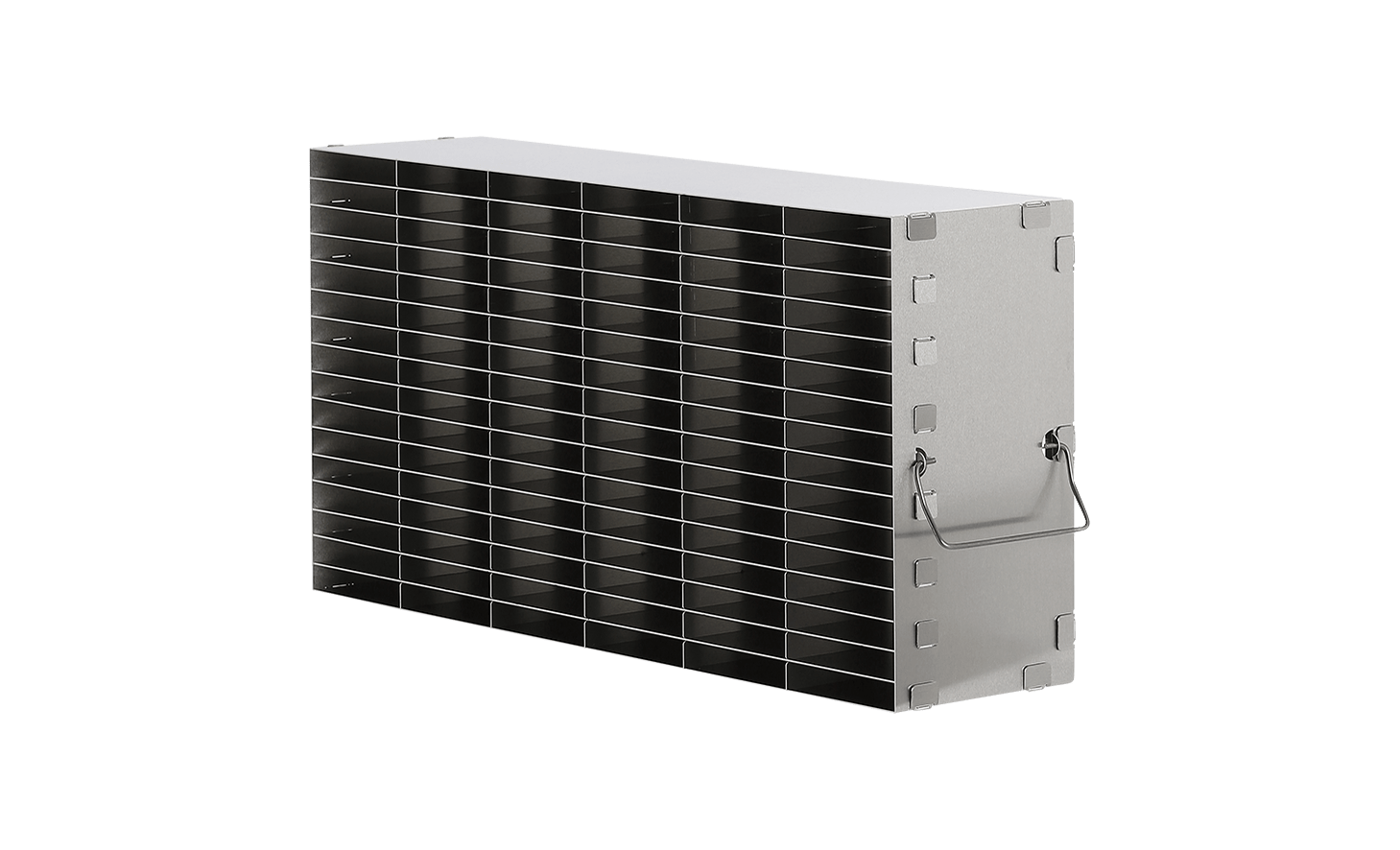

Eco AluRack for microtiter plates for upright freezers

Our Eco AluRack is our long term storage rack for microtiter plates for use in upright freezers. Choose from 5 different shelf heights depending on preferences. The racks can either be used as one plate per shelf or the plates can be stacked. The racks are available with a shelf height of; 16 mm, 25 mm, 45 mm, 65 mm and 85 mm. The external width is 135 mm on all racks.

The long term storage rack for microtiter plates are available in 4 different depths, for 4, 5, 6 or 7 plates in depth. A rack with a shelf height of 65 mm can be used with ex. 1 x 60 mm Matrix plate or 6 x 10 mm 96 microwell plate or 4 x 15mm 96 microwell plate or 2 x 96 deepwell plate. Always make sure that you have measured the exact height of the plate you want to store.

Our racks are compatible with all freezer models. The racks are made of aluminum.

Read more about our Usability explanation and product comparison.

loader-icon
Article no. Shelf height HxDxW mm No. of shelves
TE15400 16 mm 158x360x135 9x4 = 36
TE15402 16 mm 228x360x135 13x4 = 52
TE15404 16 mm 280x360x135 16x4 = 64
TE15406 16 mm 298x360x135 17x4 = 68
TE15450 16 mm 158x450x135 9x5 = 45
TE15452 16 mm 228x450x135 13x5 = 65
TE15454 16 mm 280x450x135 16x5 = 80
TE15456 16 mm 333x450x135 19x5 = 95
TE15458 16 mm 403x450x135 23x5 = 115
TE15520 16 mm 158x540x135 9x6 = 54
TE15522 16 mm 228x540x135 13x6 = 78

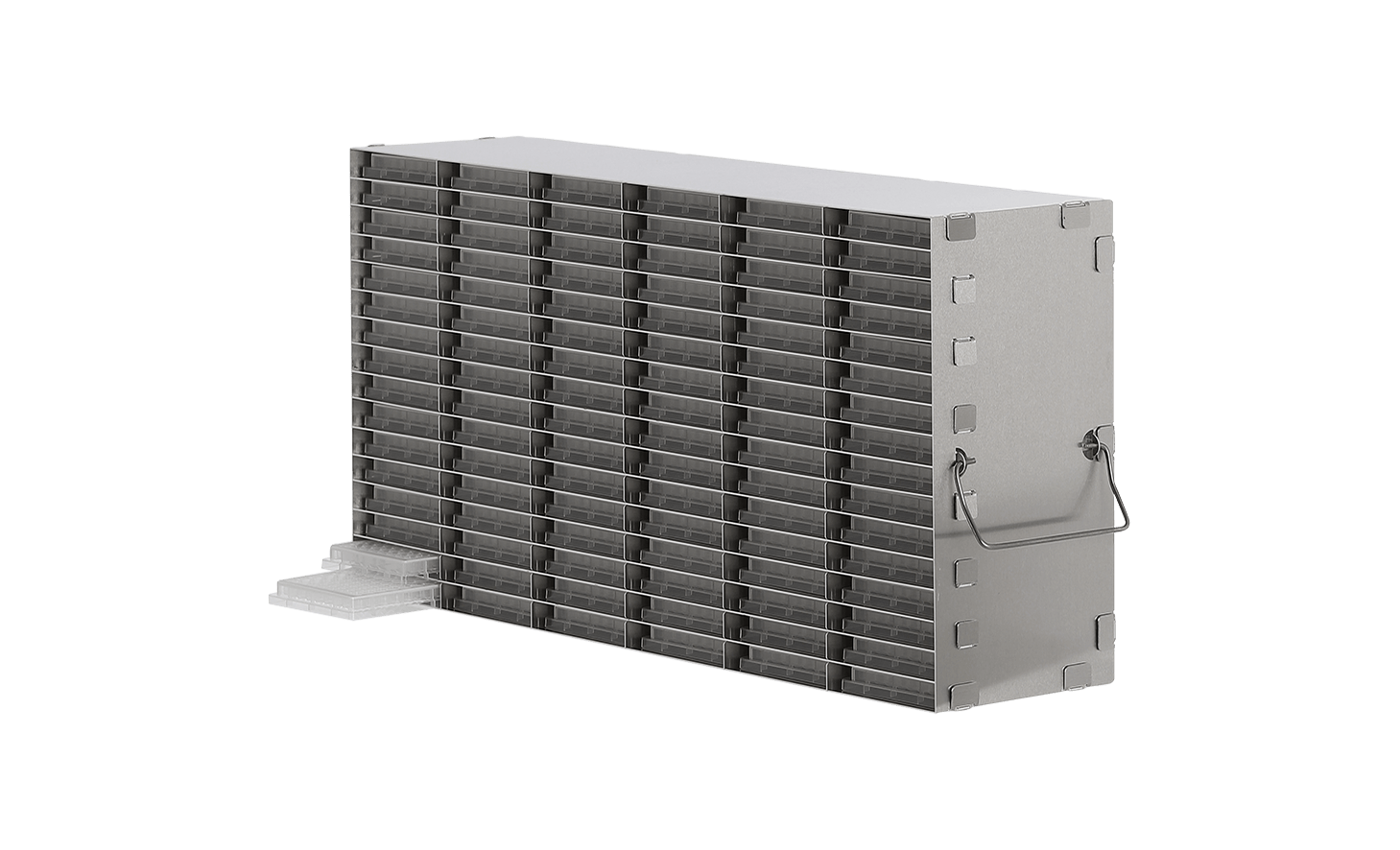

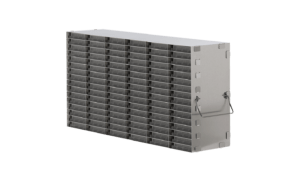

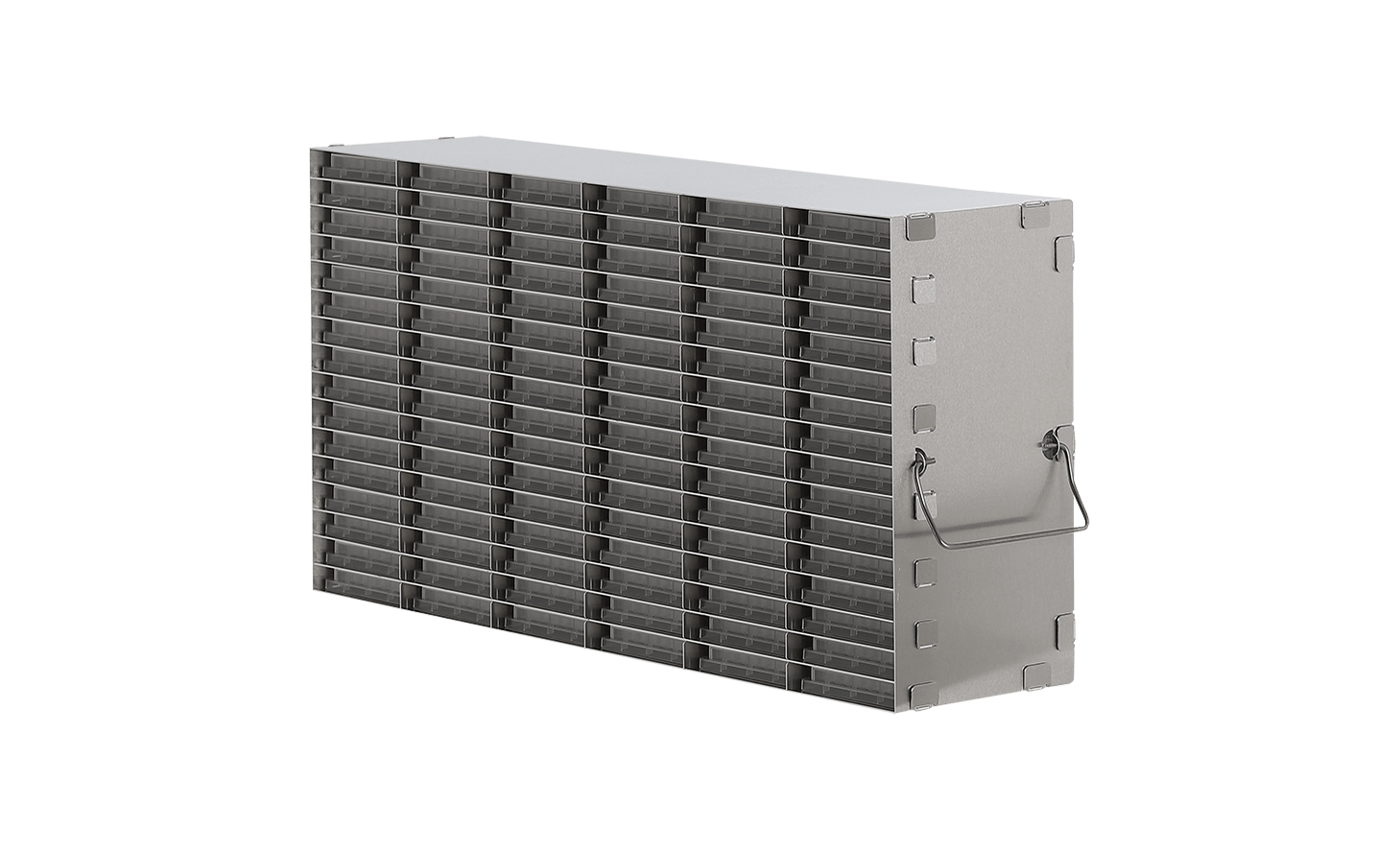

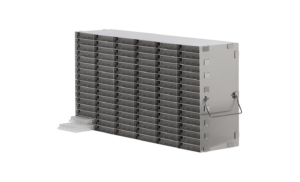

TE15524 16 mm 280x540x135 16x6 = 96
TE15526 16 mm 333x540x135 19x6 = 114
TE15570 16 mm 158x630x135 9x7 = 63
TE15572 16 mm 228x630x135 13x7 = 91
TE15574 16 mm 280x630x135 16x7 = 112
TE15576 16 mm 333x630x135 19x7 = 133
Article no. Shelf height HxDxW mm No. of shelves
TE15410 25 mm 163x360x135 6x4 = 24
TE15412 25 mm 217x360x135 8x4 = 32
TE15414 25 mm 271x360x135 10x4 = 40
TE15416 25 mm 325x360x135 12x4 = 44
TE15460 25 mm 163x450x135 6x5 = 30
TE15462 25 mm 217x450x135 8x5 = 40
TE15464 25 mm 271x450x135 10x5 = 50
TE15466 25 mm 325x450x135 12x5 = 60
TE15468 25 mm 371x450x135 14x5 = 70
TE15470 25 mm 406x450x135 15x5 = 75
TE15530 25 mm 163x540x135 6x6 = 36
TE15532 25 mm 217x540x135 8x6 = 48

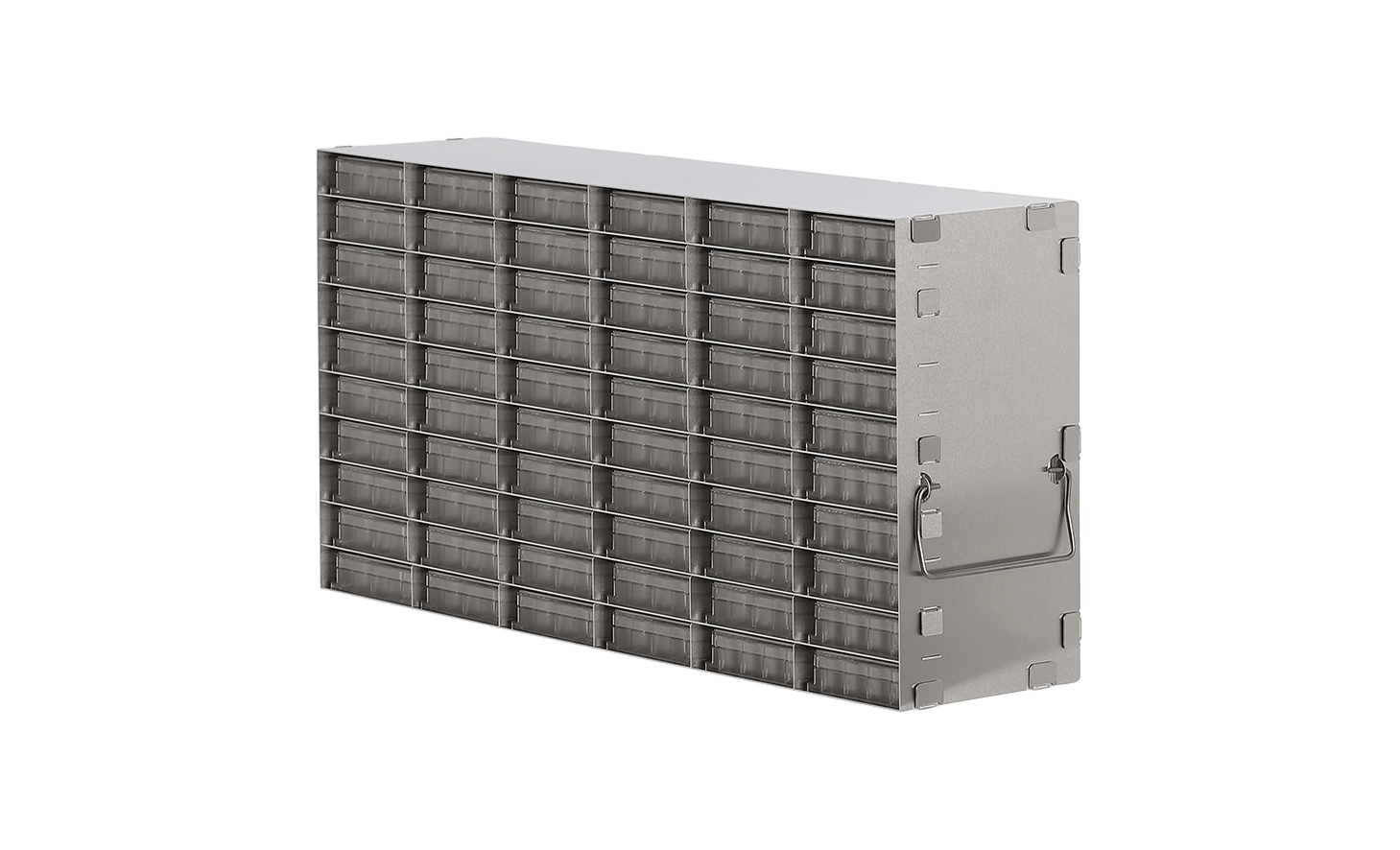

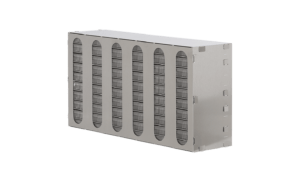

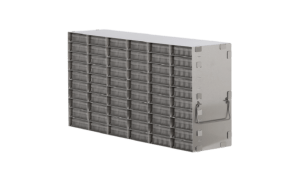

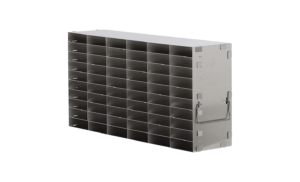

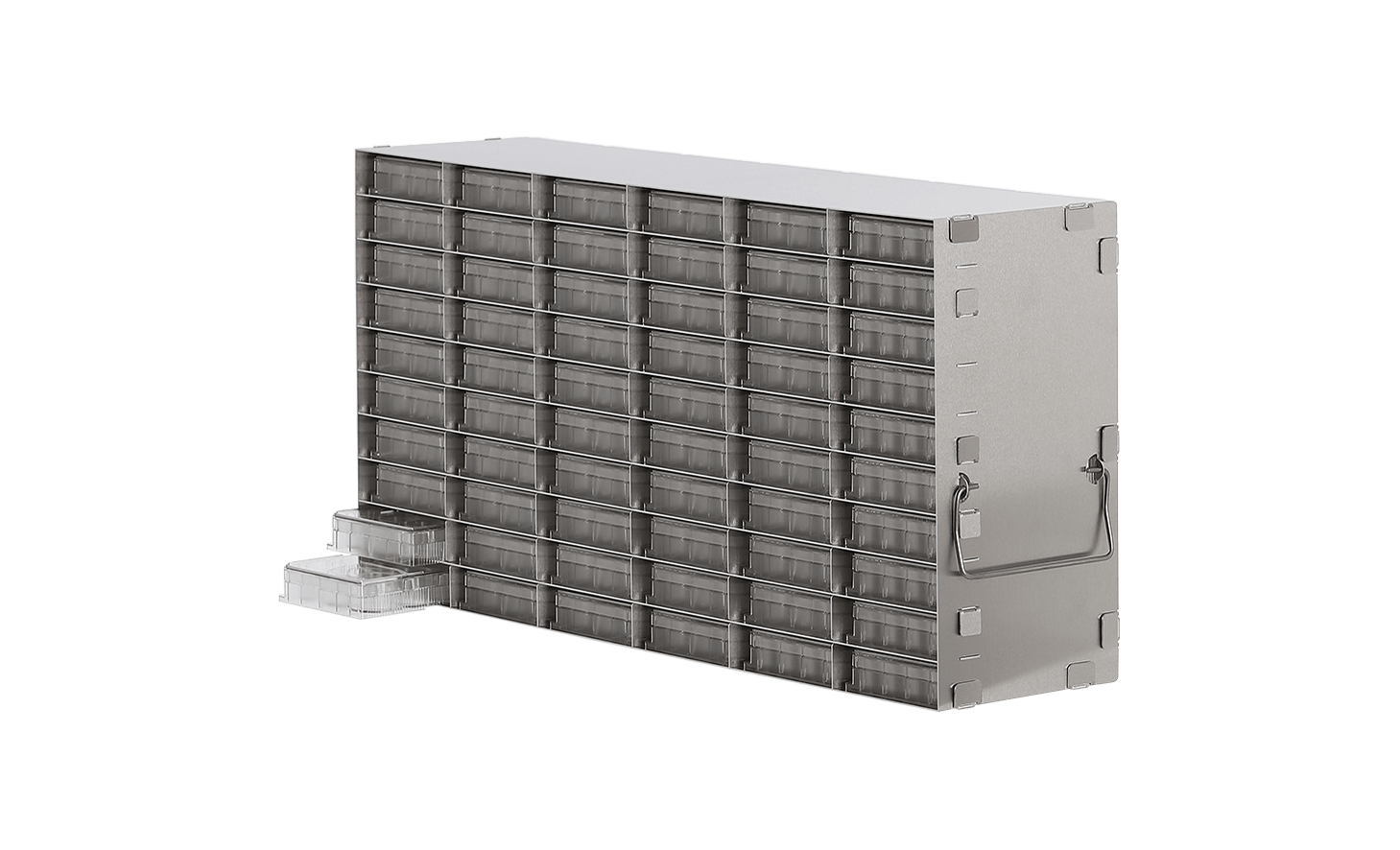

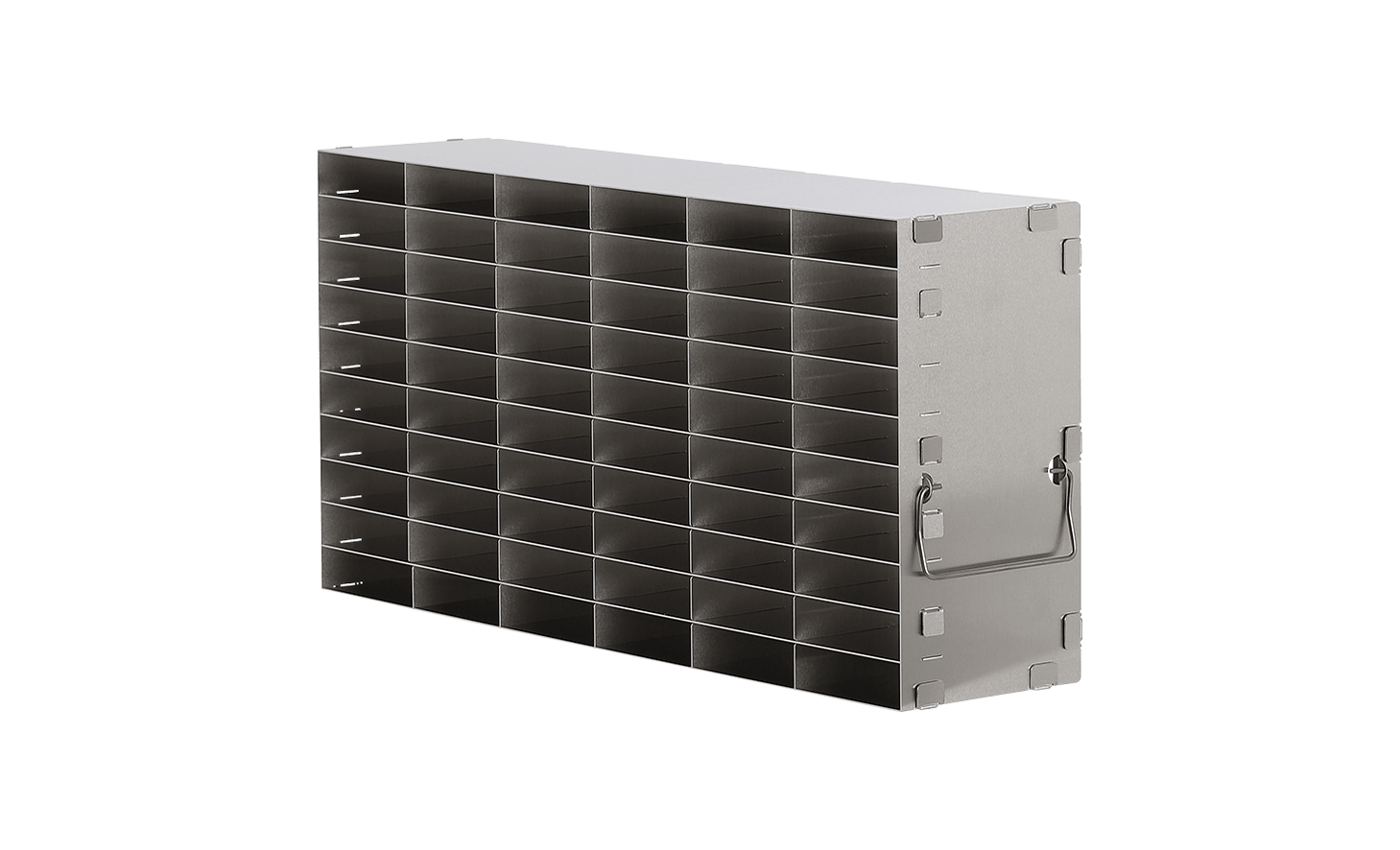

TE15534 25 mm 271x540x135 10x6 = 60
TE15536 25 mm 325x540x135 12x6 = 72
TE15580 25 mm 163x630x135 6x7 = 42
TE15582 25 mm 217x630x135 8x7 = 56
TE15584 25 mm 271x630x135 10x7 = 70
TE15586 25 mm 325x630x135 12x7 = 84
Article no. Shelf height HxDxW mm No. of shelves
TE15420 45 mm 142x360x135 3x4 = 12
TE15422 45 mm 189x360x135 4x4 = 16
TE15424 45 mm 236x360x135 5x4 = 20
TE15426 45 mm 283x360x135 6x4 = 24
TE15480 45 mm 142x450x135 3x5 = 15
TE15482 45 mm 189x450x135 4x5 = 20
TE15484 45 mm 236x450x135 5x5 = 25
TE15486 45 mm 283x450x135 6x5 = 30
TE15488 45 mm 330x450x135 7x5 = 35
TE15490 45 mm 377x450x135 8x5 = 40
TE15540 45 mm 142x540x135 3x6 = 18
TE15542 45 mm 189x540x135 4x6 = 24
TE15544 45 mm 236x540x135 5x6 = 30

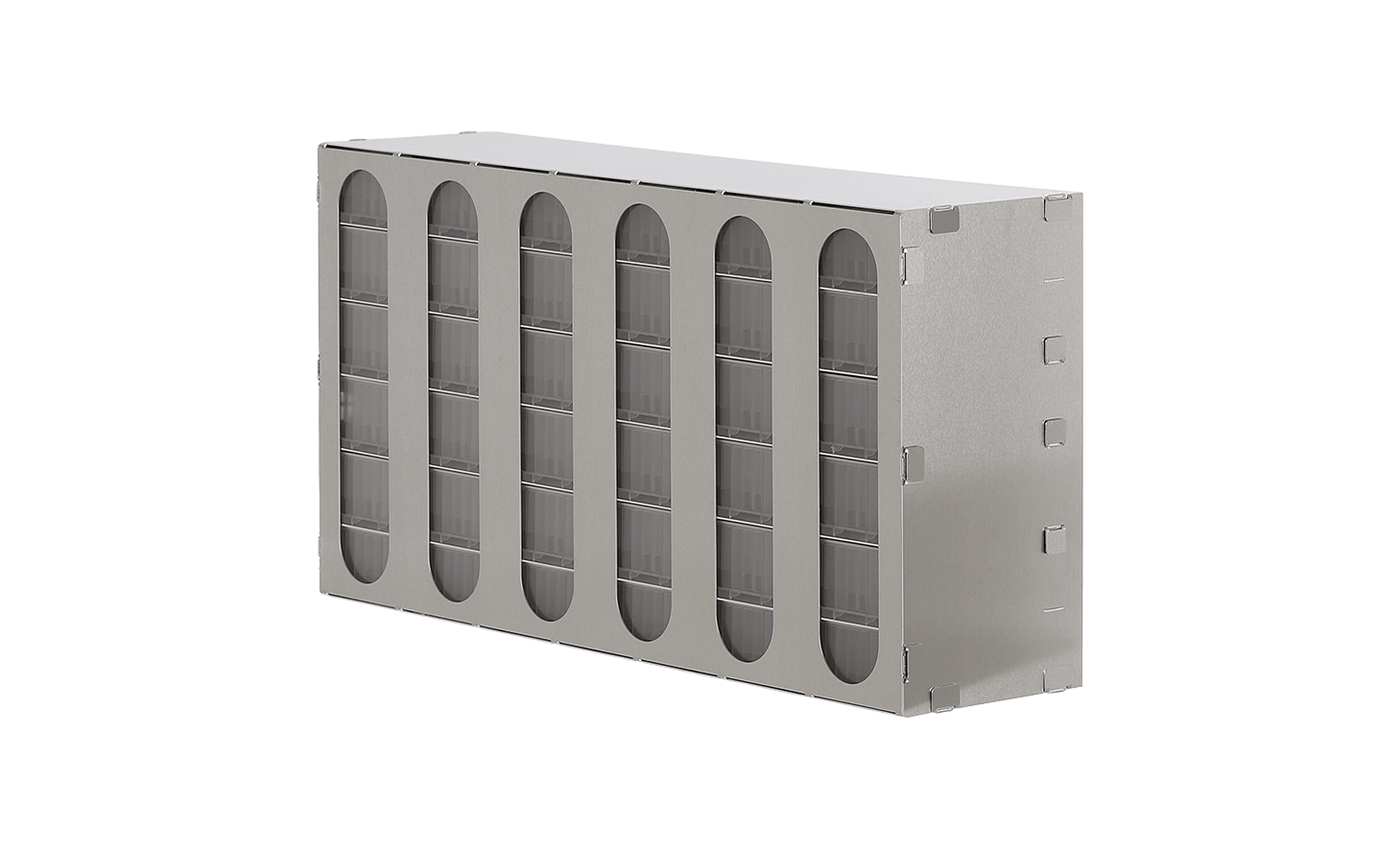

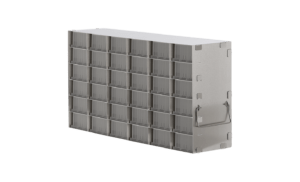

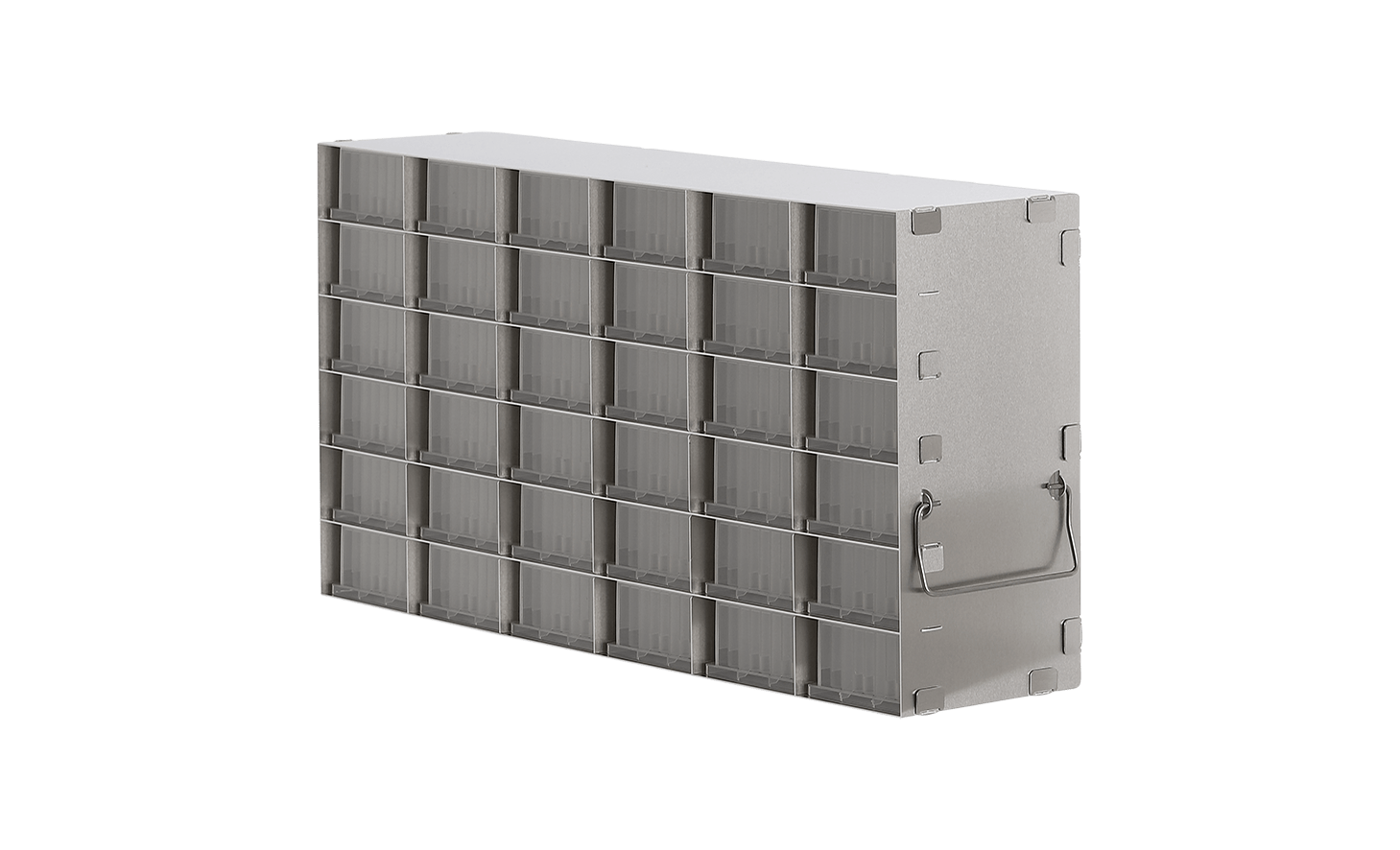

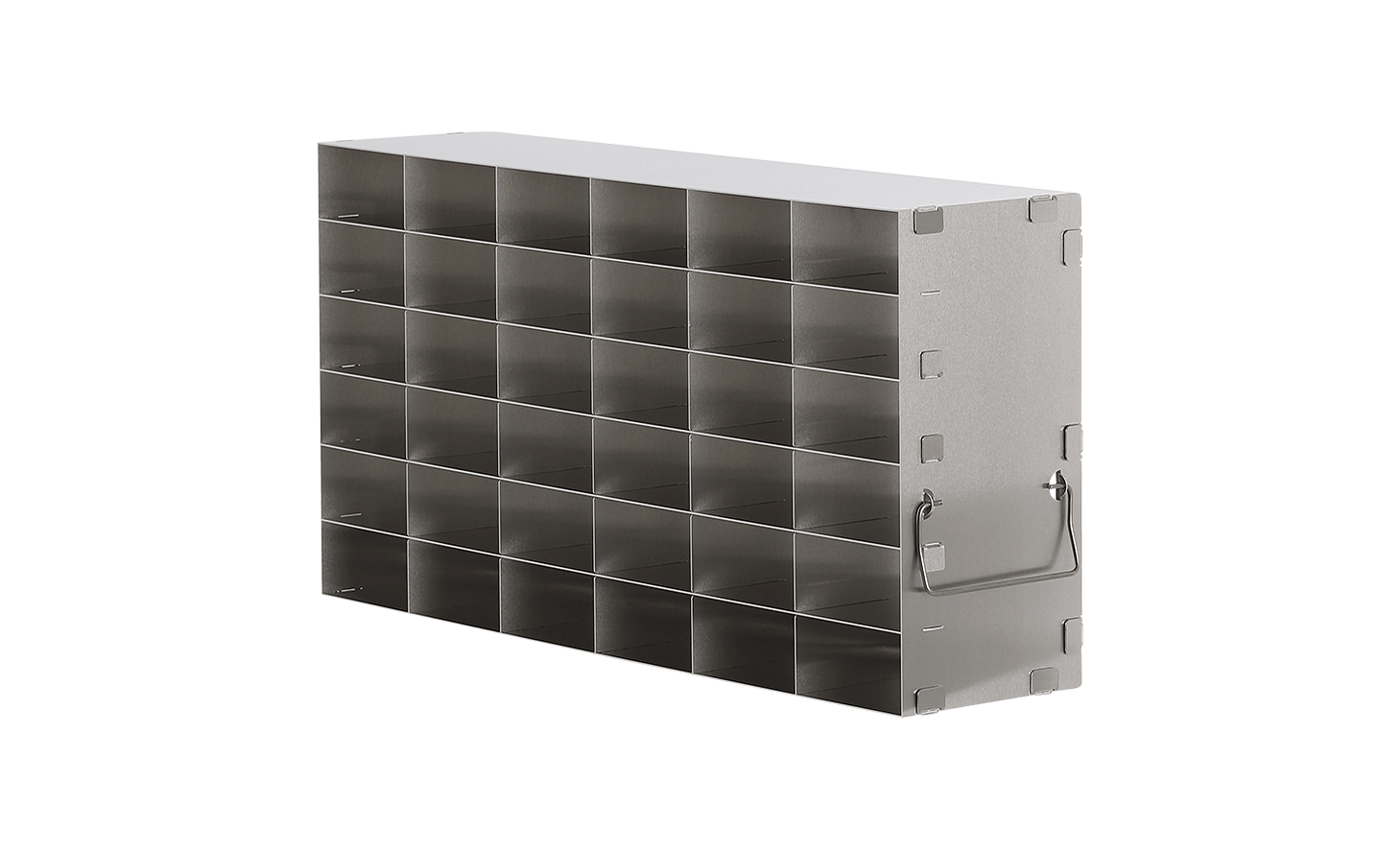

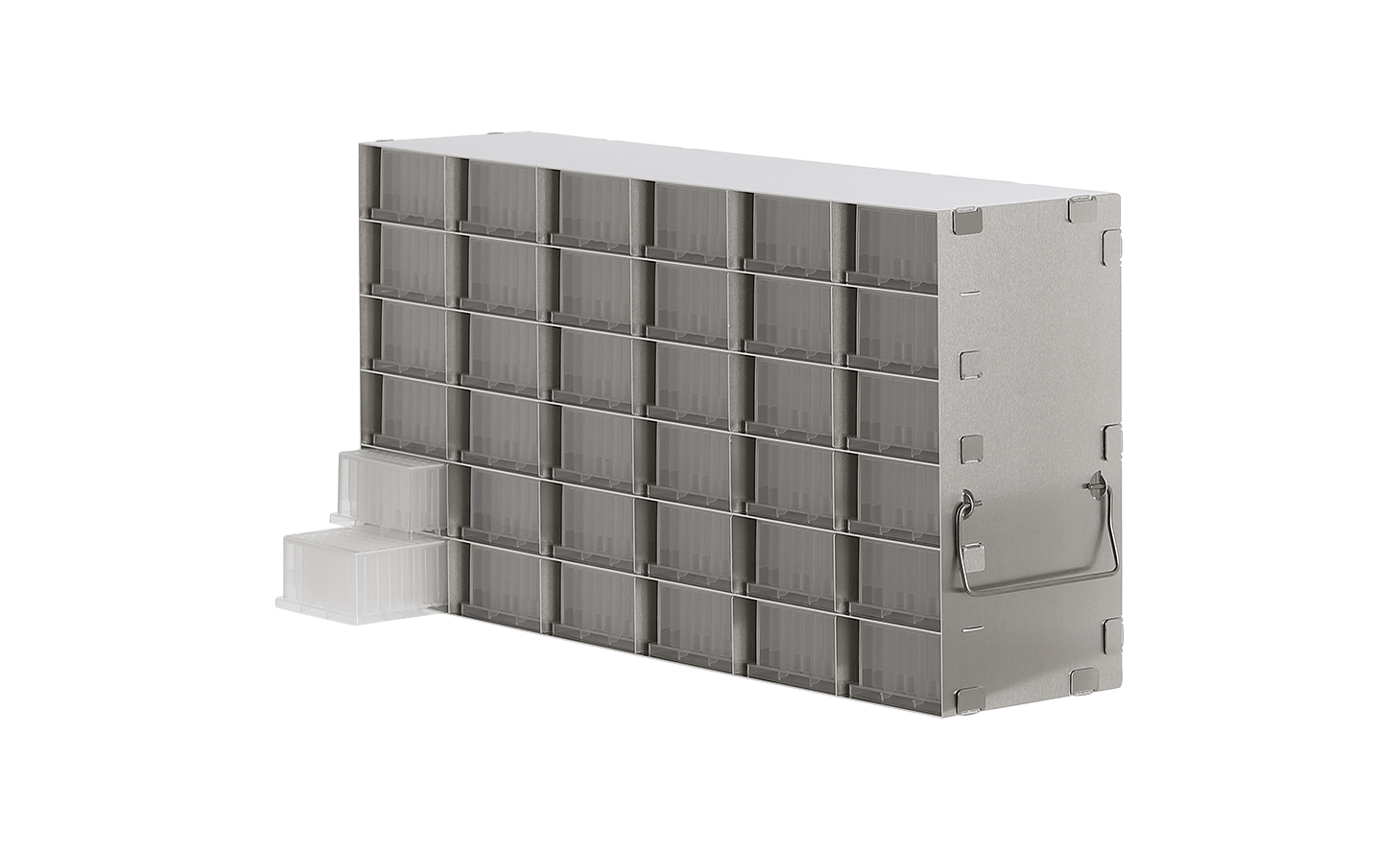

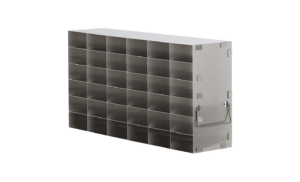

TE15546 45 mm 283x540x135 6x6 = 36
TE15548 45 mm 330x540x135 7x6 = 42
TE15590 45 mm 142x630x135 3x7 = 21
TE15592 45 mm 189x630x135 4x7 = 28
TE15594 45 mm 236x630x135 5x7 = 35
TE15596 45 mm 283x630x135 6x7 = 42
TE15598 45 mm 330x630x135 7x7 = 49
Article no. Shelf height HxDxW mm No. of shelves
TE15430 65 mm 135x360x135 2x4 = 8
TE15432 65 mm 202x360x135 3x4 = 12
TE15434 65 mm 269x360x135 4x4 = 16
TE15500 65 mm 135x450x135 2x5 = 10
TE15502 65 mm 202x450x135 3x5 = 15
TE15504 65 mm 269x450x135 4x5 = 20
TE15506 65 mm 336x450x135 5x5 = 25
TE15508 65 mm 399x450x135 6x5 = 30
TE15550 65 mm 135x540x135 2x6 = 12
TE15552 65 mm 202x540x135 3x6 = 18
TE15554 65 mm 269x540x135 4x6 = 24
TE15556 65 mm 336x540x135 5x6 = 30
TE15558 65 mm 403x540x135 6x6 = 36
TE15600 65 mm 135x630x135 2x7 = 14
TE15602 65 mm 202x630x135 3x7 = 21
TE15604 65 mm 269x630x135 4x7 = 28
TE15606 65 mm 336x630x135 5x7 = 35
Article no. Shelf height HxDxW mm No. of shelves
TE15440 85 mm 175x360x135 2x4 = 8
TE15442 85 mm 262x360x135 3x4 = 12
TE15510 85 mm 175x450x135 2x5 = 10
TE15512 85 mm 262x450x135 3x5 = 15
TE15514 85 mm 349x450x135 4x5 = 20
TE15560 85 mm 175x540x135 2x6 = 12
TE15562 85 mm 262x540x135 3x6 = 18
TE15564 85 mm 349x540x135 4x6 = 24
TE15610 85 mm 175x630x135 2x7 = 14
TE15612 85 mm 262x630x135 3x7 = 21
TE15614 85 mm 349x630x135 4x7 = 28
