Aluminium rack for MTP for chest freezers Eco AluRack

Our Eco AluRack is our aluminium rack for MTP for chest freezers. This is a complete range of racks for microtiter plates for use in chest freezers. Choose from 5 different shelf heights depending on preferences. The Aluminium rack for MTP for chest freezers racks can either be used as one plate per shelf or the plates can be stacked. The racks are available with a shelf height of; 16 mm, 25 mm, 45 mm, 65 mm and 85 mm. The external footprint is 135×92 mm on all racks.

A rack with a shelf height of 65 mm can be used with ex. 1 x 60 mm Matrix plate or 6 x 10mm 96 microwell plate or 4 x 15mm 96 microwell plate or 2 x 96 deepwell plate. Always make sure that you have measured the exact height of the plate you want to store.

Our racks are compatible with all freezer models. The racks are made of aluminum.

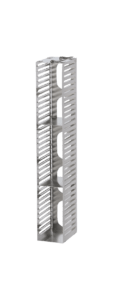

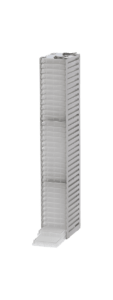

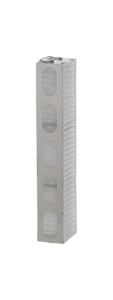

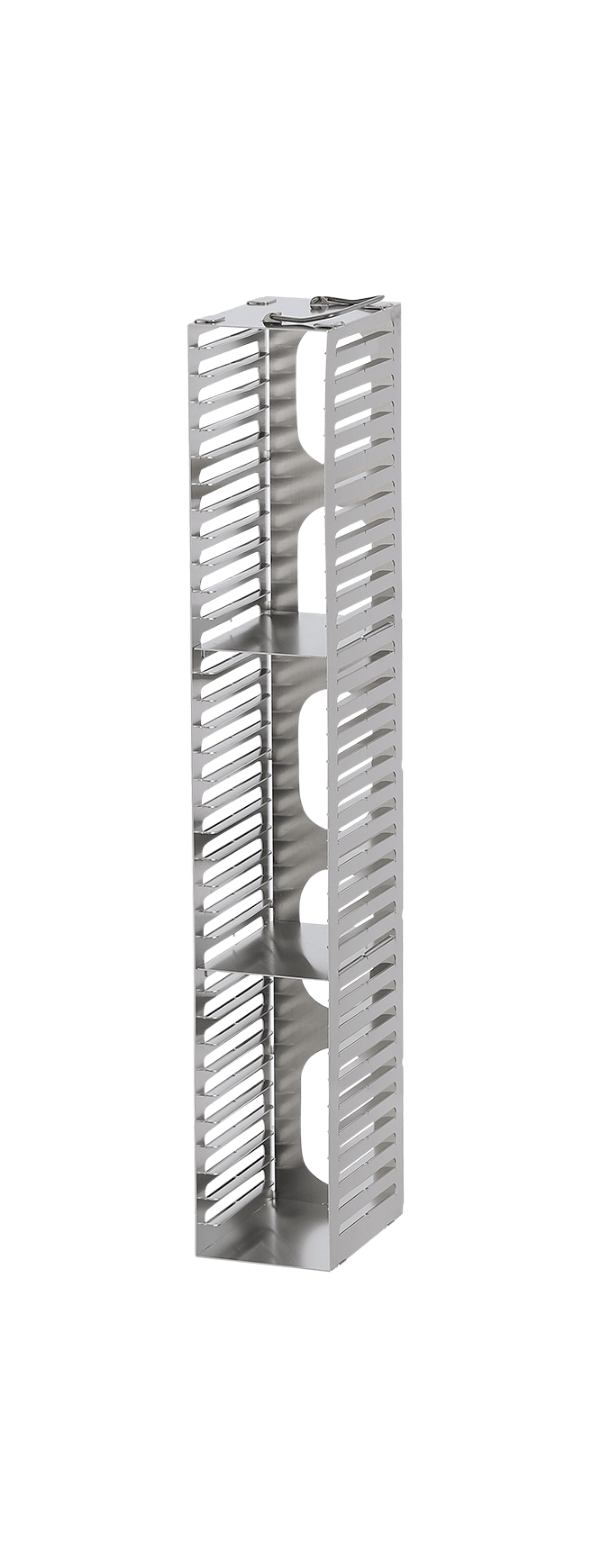

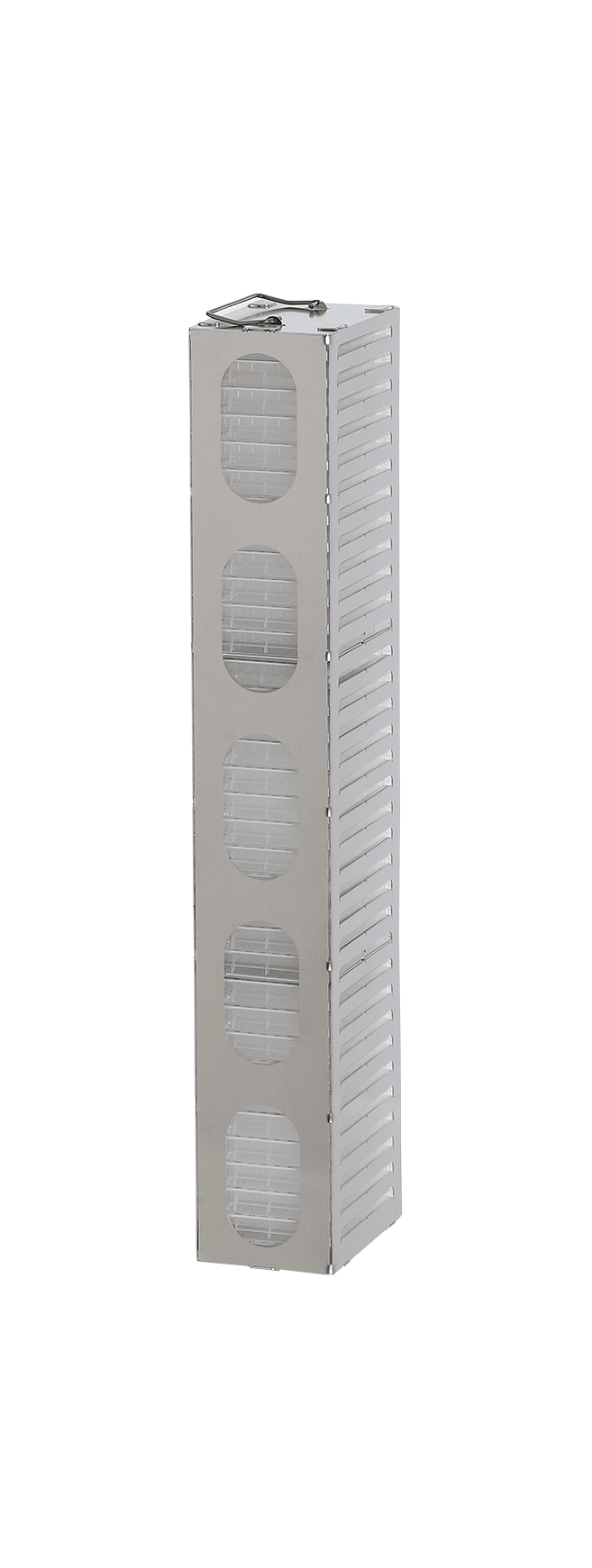

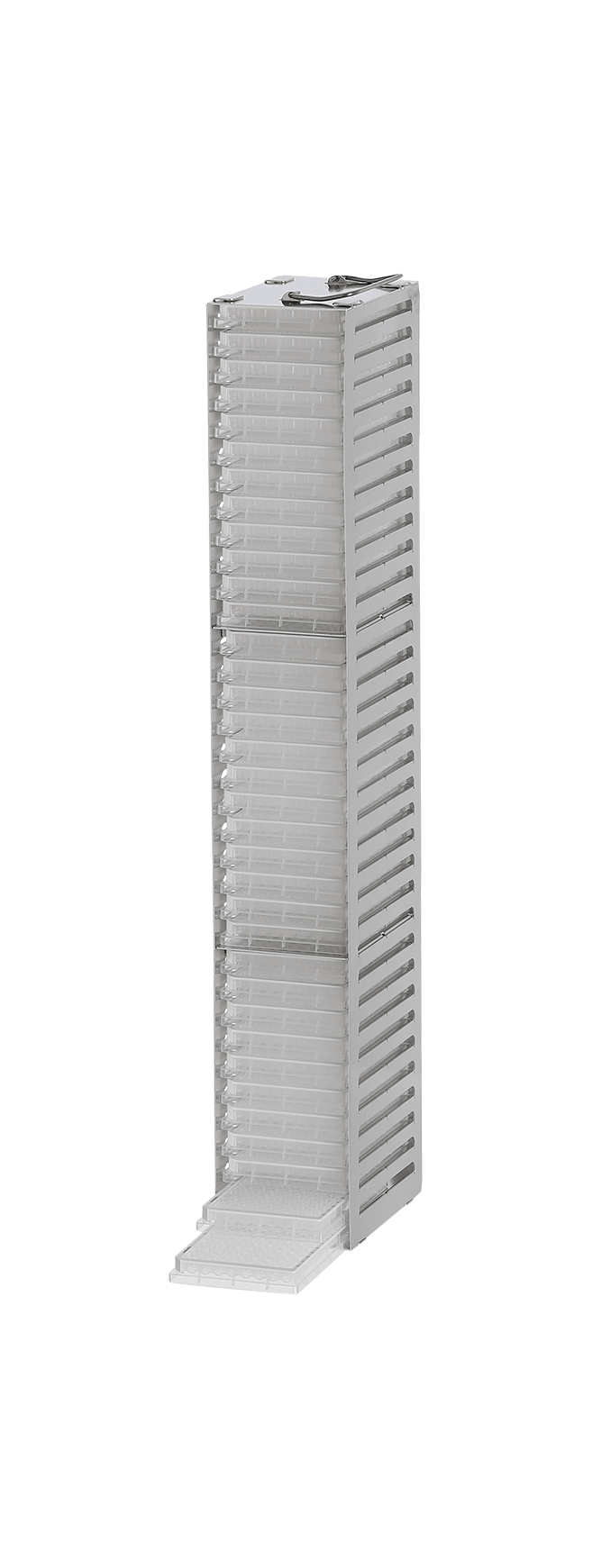

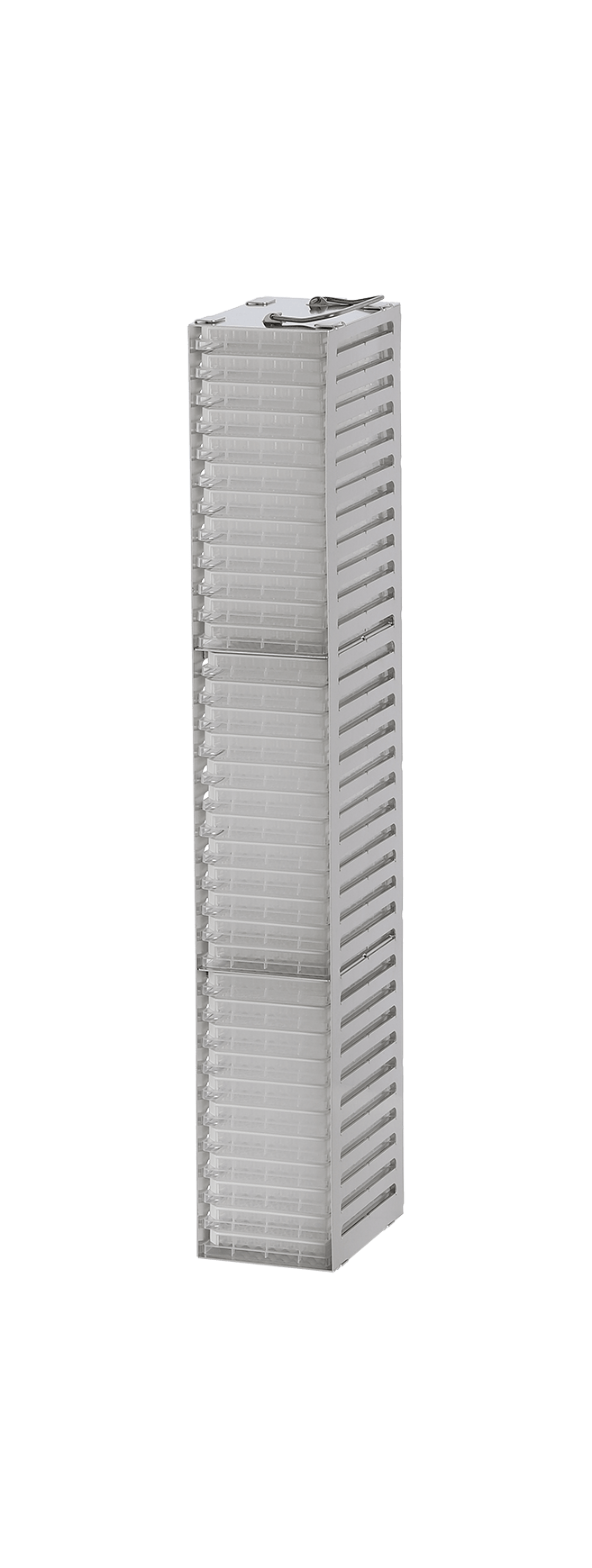

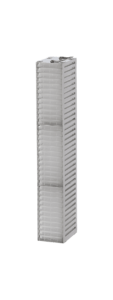

16 mm

Article no.	Shelf height	HxDxW mm	No. of shelves
TE15100	16 mm	283x135x92	16
TE15102	16 mm	334x135x92	19
TE15104	16 mm	385x135x92	22
TE15106	16 mm	453x135x92	26
TE15108	16 mm	504x135x92	29
TE15110	16 mm	555x135x92	32
TE15112	16 mm	606x135x92	35
TE15114	16 mm	674x135x92	39
TE15116	16 mm	725x135x92	42

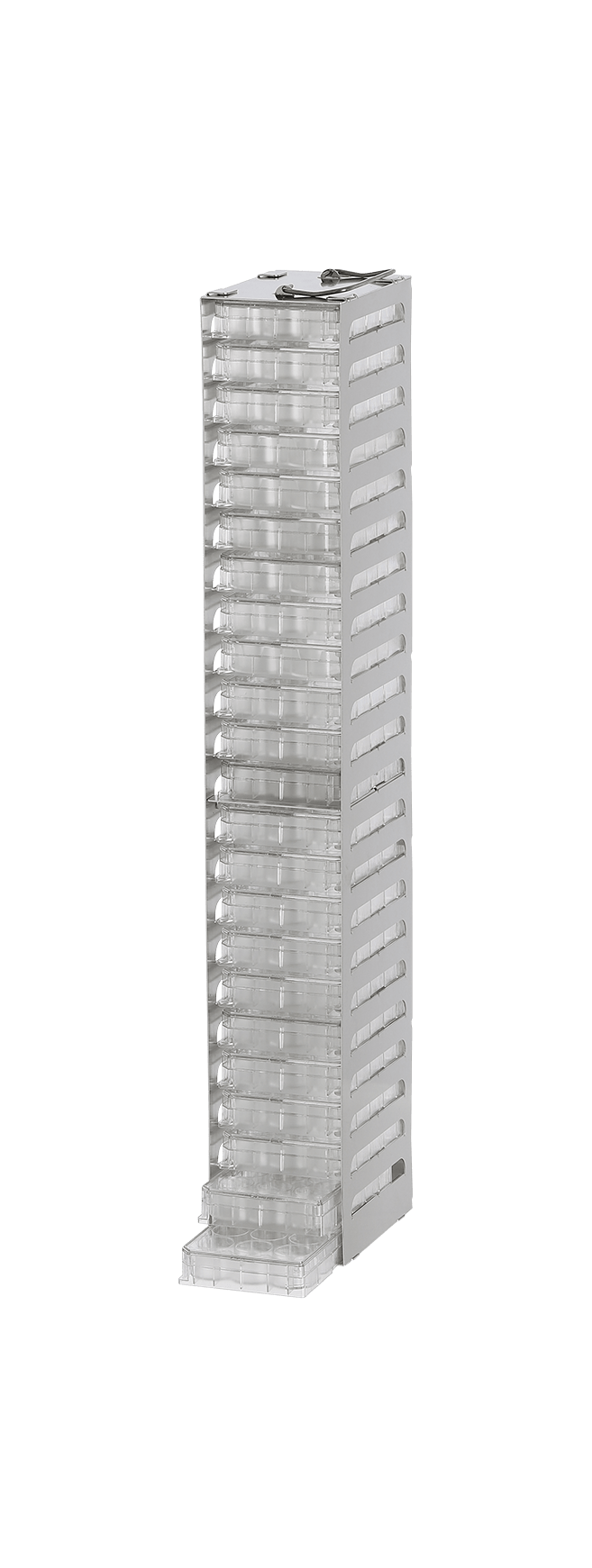

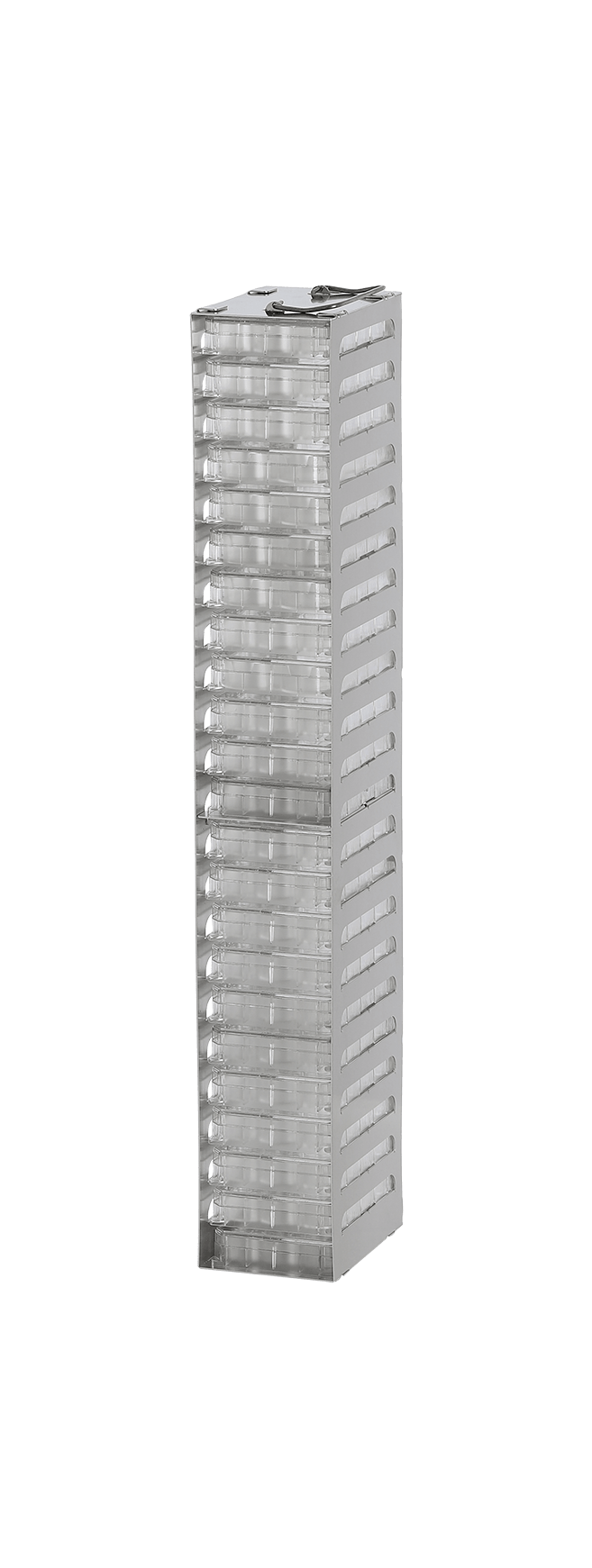

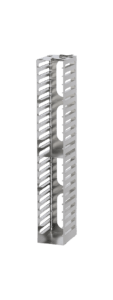

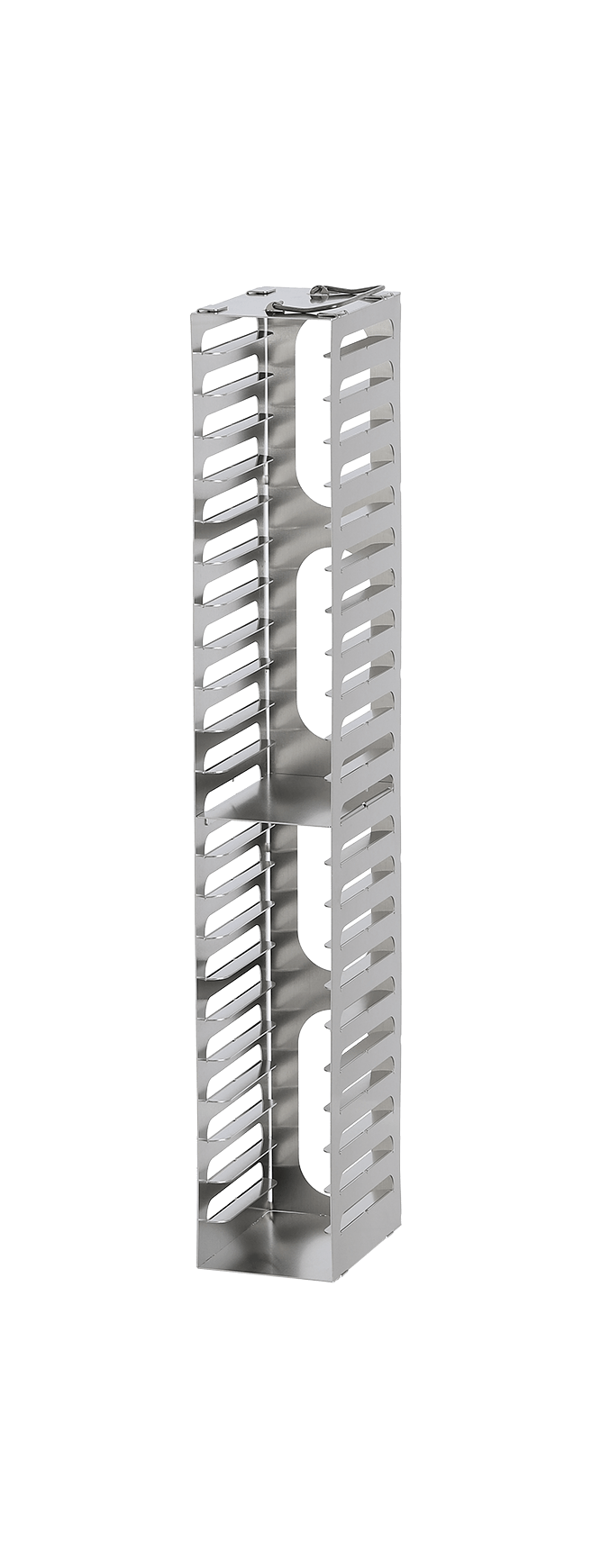

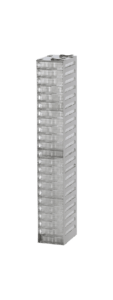

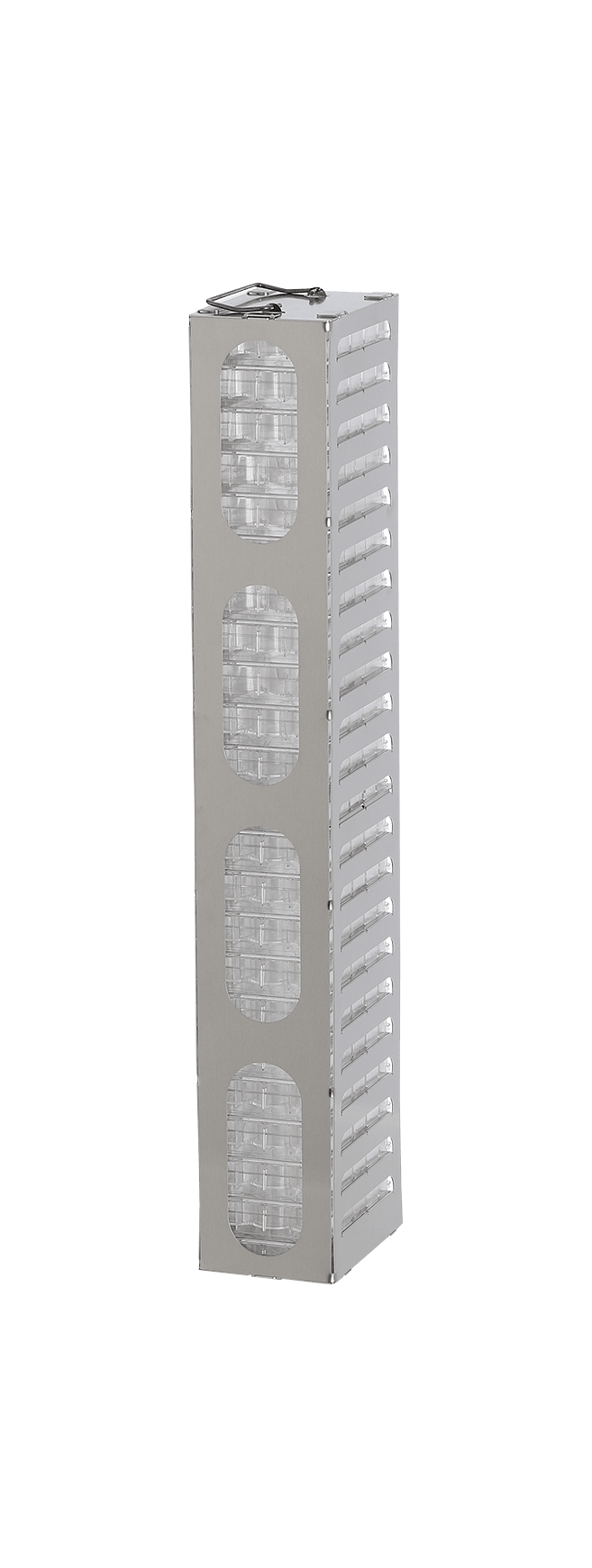

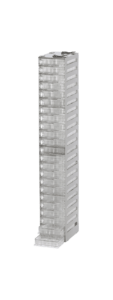

25 mm

Article no.	Shelf height	HxDxW mm	No. of shelves
TE15130	25 mm	302x135x92	11
TE15132	25 mm	355x135x92	13
TE15134	25 mm	408x135x92	15
TE15136	25 mm	461x135x92	17
TE15138	25 mm	514x135x92	19
TE15140	25 mm	567x135x92	21
TE15142	25 mm	620x135x92	23
TE15144	25 mm	673x135x92	25
TE15146	25 mm	726x135x92	27

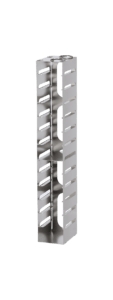

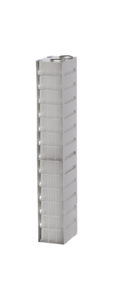

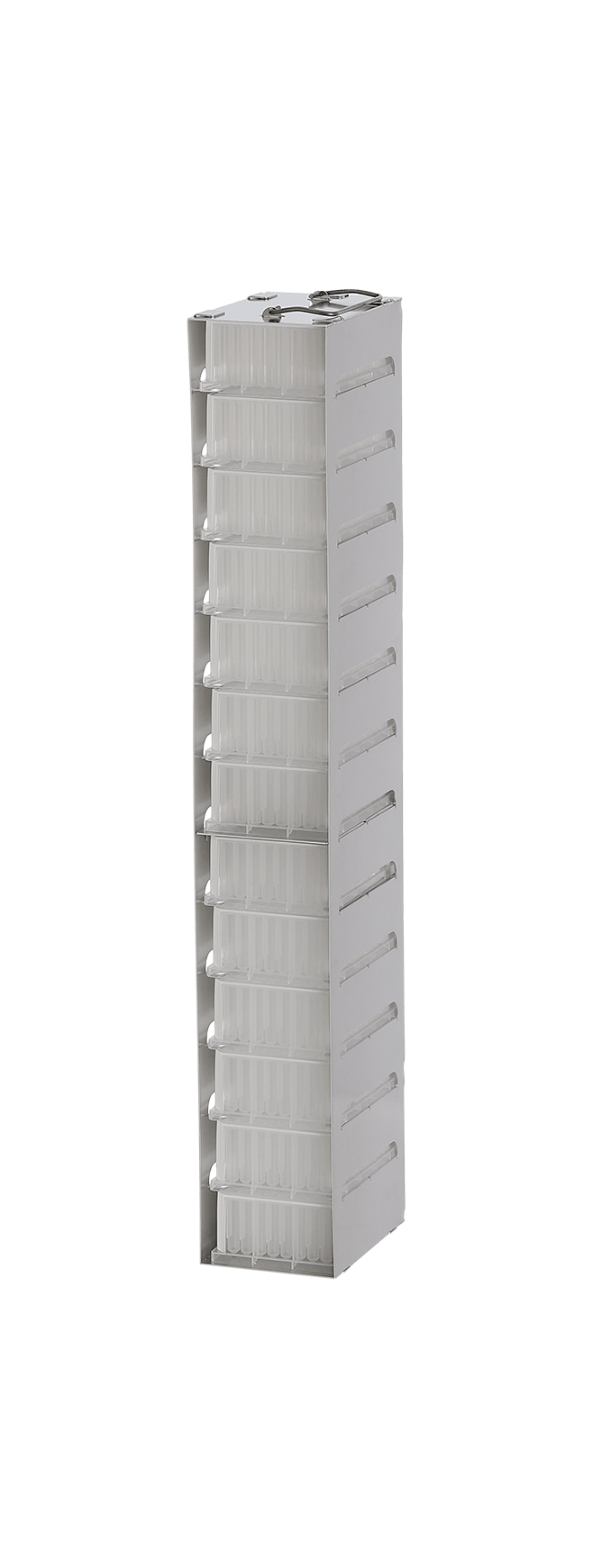

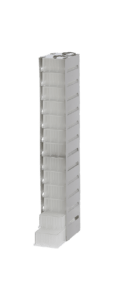

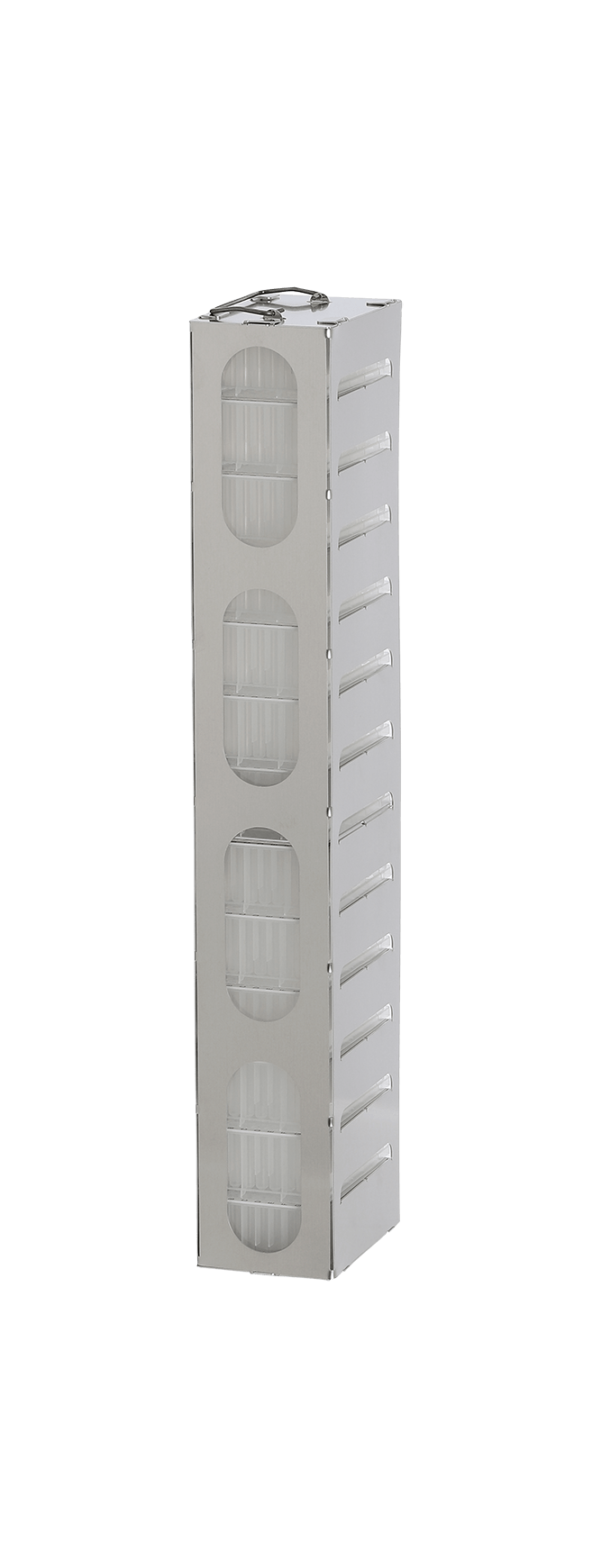

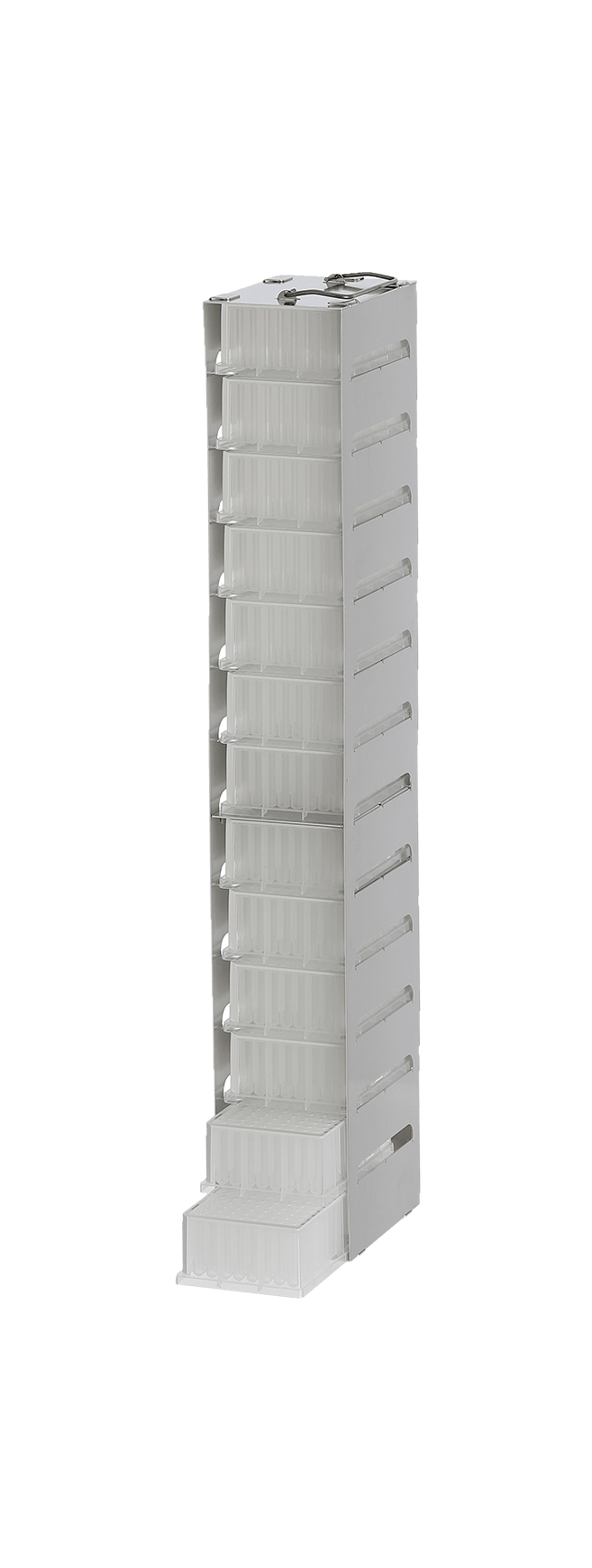

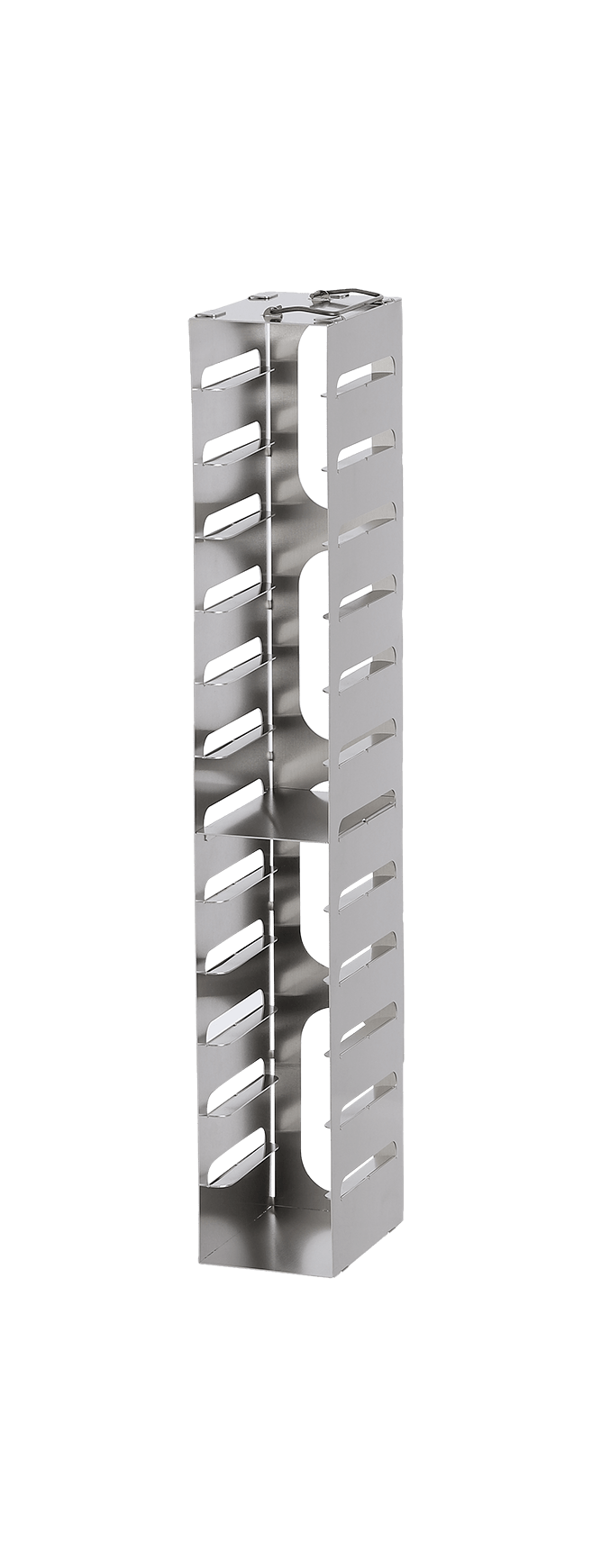

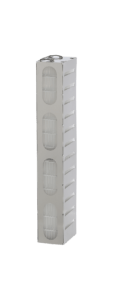

45 mm

Article no.	Shelf height	HxDxW mm	No. of shelves
TE15160	45 mm	290x135x92	6
TE15162	45 mm	336x135x92	7
TE15164	45 mm	383x135x92	8
TE15166	45 mm	429x135x92	9
TE15168	45 mm	476x135x92	10
TE15170	45 mm	522x135x92	11
TE15172	45 mm	569x135x92	12
TE15174	45 mm	615x135x92	13
TE15176	45 mm	662x135x92	14
TE15178	45 mm	708x135x92	15
TE15180	45 mm	755x135x92	16

65 mm

Article no.	Shelf height	HxDxW mm	No. of shelves
TE15190	65 mm	277x135x92	4
TE15192	65 mm	343x135x92	5
TE15194	65 mm	410x135x92	6
TE15196	65 mm	476x135x92	7
TE15198	65 mm	543x135x92	8
TE15200	65 mm	609x135x92	9
TE15202	65 mm	676x135x92	10
TE15204	65 mm	742x135x92	11

85 mm

Article no.	Shelf height	HxDxW mm	No. of shelves
TE15210	85 mm	270x135x92	3
TE15212	85 mm	357x135x92	4
TE15214	85 mm	443x135x92	5
TE15216	85 mm	530x135x92	6
TE15218	85 mm	616x135x92	7
TE15220	85 mm	703x135x92	8
